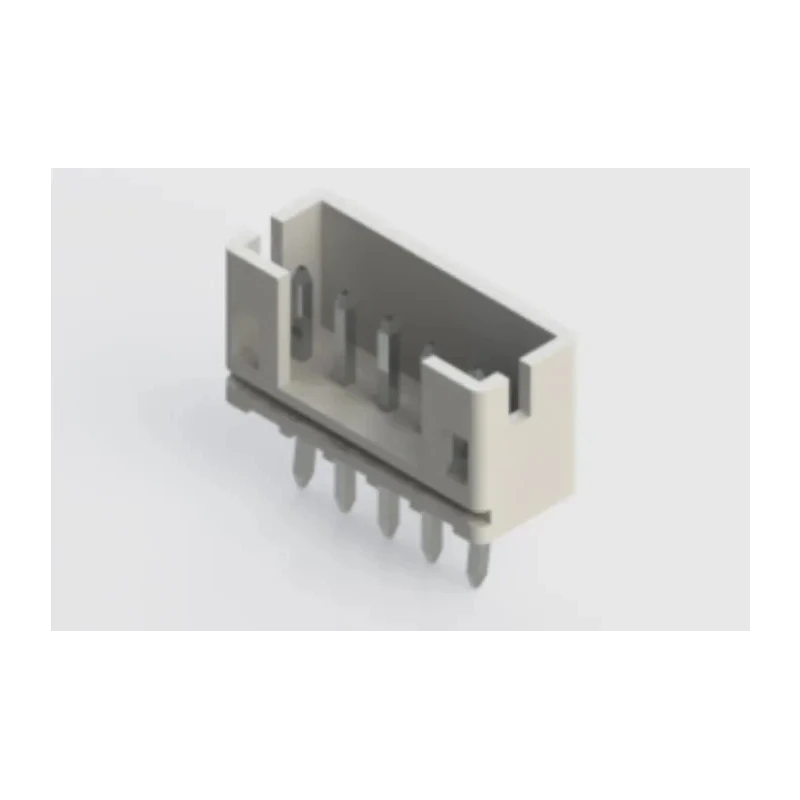

EDAC 140 Series Vertical Through Hole PCB Header 5 Contact 2 mm Pitch 1 Row Shrouded 140-505-415-001

EDAC 140-505-415-001 is a precision vertical through-hole PCB header featuring a 5-contact wire-to-board connector system with a 2 mm pitch and a single row layout. Constructed with a rugged polyamide 66 material, the shrouded housing provides mechanical protection and reliable electrical insulation, conforming to UL94V-0 standards.

Designed for high-density internal wire connection to PCBs, this PCB header supports a current capacity of 2A at 100V, making it suitable for demanding electronics applications in industrial, laboratory, and manufacturing environments. The contacts are brass with tin plating for excellent conductivity and corrosion resistance. The solder tail pins have a 3.4 mm length to ensure secure soldering on the PCB.

The header operates efficiently across a wide temperature range from -40°C to 105°C, making it appropriate for harsh conditions. Additionally, it is RoHS compliant, aligning with environmental standards and ensuring toxin-free materials.

This product includes a low profile insulator body and kinked first and last contacts to maintain optimal retention and connectivity in PCBs. Its vertical orientation and shrouded style prevent damage and misalignment of connections during installation.

The connector supports a current rating of 2 Amperes and a voltage of 100 Volts. Housing is made from polyamide 66, providing durability and resistance against heat. The 5 female brass contacts are plated with tin to ensure reliable electrical connections.

Mount type is through hole with solder termination and 3.4 mm tail pin length. Operating temperatures range from -40°C to 105°C, allowing for versatile industrial use. RoHS compliant, guaranteeing adherence to environmental safety regulations.

Designed for vertical wire-to-board connection with one row and 2 mm pitch spacing. Shrouded construction protects contacts from mechanical damage and accidental shorts.

This component is ideal for electronics manufacturing, prototyping, repair, and industrial PCB assembly where precision and reliability are critical. It caters to applications in consumer electronics, industrial control systems, and communication devices. Browse the EnvMart catalog for additional components to complement this EDAC PCB Header for comprehensive connector solutions.
