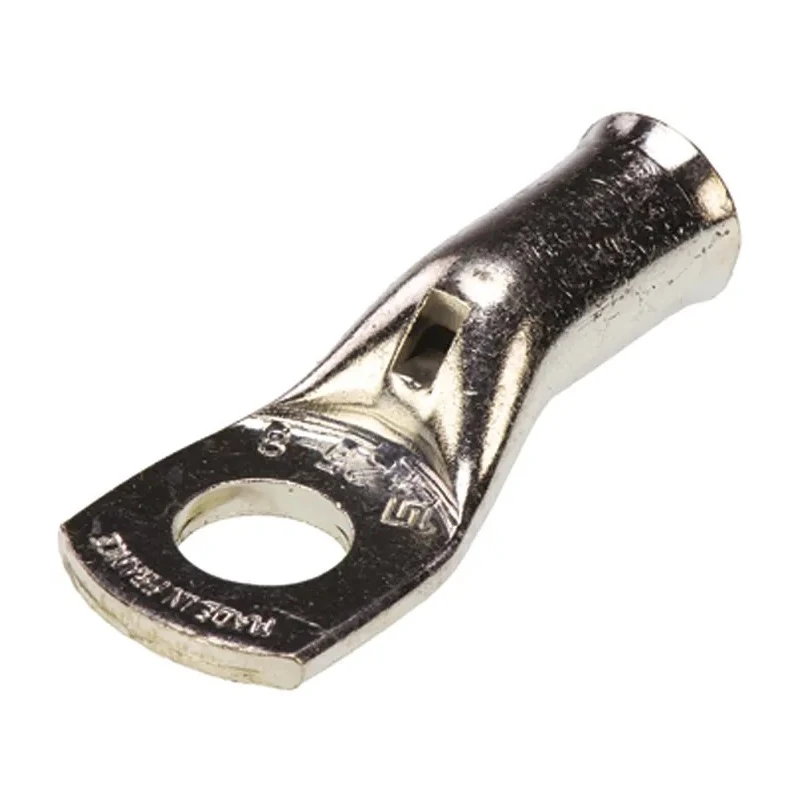

TE Connectivity XCT Uninsulated Ring Terminal 8 mm Stud Size 3 AWG 40 mm Overall Length Grey 710026-5

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity XCT Uninsulated Ring Terminal 8 mm Stud Size 3 AWG 40 mm Overall Length Grey 710026-5

Name: TE Connectivity XCT Uninsulated Ring Terminal 8 mm Stud Size 3 AWG 40 mm Overall Length Grey 710026-5
Brand: TE Connectivity
SKU: 140278
Price: 4.36 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	France
Brand	TE Connectivity
Colour	Grey
THICKNESS	1.2mm
Model	710026-5
Insulation	Uninsulated
Overall Length	40mm
Contact Material	Copper
Series	XCT
Standards/Approvals	RoHS
Contact Plating	Tin
Minimum Wire Size mm²	25mm²
Minimum Wire Size AWG	3AWG
Outer Ring Diameter	16mm
Inner Ring Diameter	8.3mm
Stud Size	8 mm

Key Features

Manufactured from electrolytic copper with bright tin plating for oxidation resistance.
The barrel features a funnel entry for easy wire insertion and an inspection hole to verify conductor positioning.
Uninsulated design suitable for direct connections requiring corrosion resistance.
Complies with RoHS standards and French NF C 20 130 specification.
Overall length of 40 mm with 1.2 mm thickness ensures durability during crimping.
Compatible wire size of 3 AWG (25 mm²) with outer ring diameter of 16 mm and inner ring diameter of 8.3 mm.
Suitable for industrial and electrical wiring applications requiring reliable terminal connections.

Product Description

TE Connectivity 710026-5 XCT uninsulated ring terminal is engineered for connecting electrical copper conductors to equipment terminals with an 8 mm stud size and 3 AWG wire size.

Constructed from highly conductive electrolytic copper with a bright tin finish, this terminal offers excellent resistance against oxidation and corrosion, enhancing connection reliability and longevity.

The terminal's barrel incorporates a funnel entry design enabling easy wire insertion, complemented by an inspection window to confirm proper conductor placement before crimping. This improves installation accuracy and efficiency.

Uninsulated and designed for hexagonal compression or indent crimping, this terminal suits applications that do not require additional insulation but demand dependable electrical contact.

Conforming to the RoHS directive and the French NF C 20 130 standard, the terminal meets stringent environmental and safety criteria, making it ideal for industrial, electrical, HVAC, manufacturing, and power connector use cases.

Technical specifications include a 16 mm outer ring diameter, 8.3 mm inner ring diameter, 1.2 mm thickness, and an overall length of 40 mm. The grey color coding assists in identification and organization in wiring systems.

Manufactured from electrolytic copper with bright tin plating for corrosion resistance. Funnel entry barrel design facilitates wire insertion. Inspection hole enables verification of conductor positioning. Compatible with 3 AWG wire size and 8 mm stud size.

Meets RoHS and French NF C 20 130 standards. Suitable for industrial electrical and power connector applications. Uninsulated construction for direct terminal connections.

The product is made in France and represents a reliable component for high-quality electrical installations. Explore more TE Connectivity products or related Ring Terminals on EnvMart.
