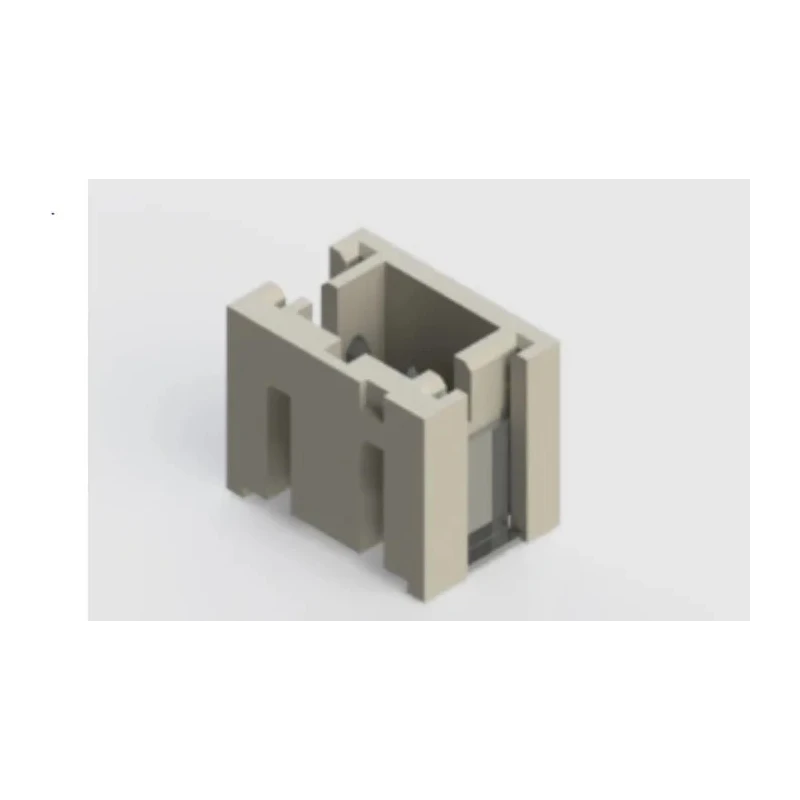

EDAC 140 Series Vertical Surface PCB Header 2 Contacts 2 mm Pitch 1 Row Shrouded 140-502-417-011

EDAC 140-502-417-011 is a vertical surface mount PCB header from the 140 series, featuring 2 female contacts spaced at a 2 mm pitch in a single row. Manufactured with a durable polyamide 9T housing material, this shrouded connector provides secure wire-to-board connections while maintaining a low profile suitable for compact electronics assemblies.

The connector is designed with brass contacts plated with tin to enhance conductivity and resist oxidation, making it ideal for industrial and commercial electronic applications. Its solder termination type ensures reliable PCB mounting with excellent retention.

Operating efficiently across a temperature range from -40°C to 105°C, this header supports up to 2 A current and is rated for 100 V, making it suitable for a wide array of low voltage circuit board designs. The shrouded construction adds protection to contacts, preventing accidental short circuits or damage.

Its compact 1-row layout with a 2 mm pitch facilitates high-density PCB assemblies. The product is fully RoHS compliant, promoting environmental responsibility and safe manufacturing standards.

Compact 1-row, 2-contact shrouded header for surface mount applications. Constructed with polyamide 9T housing material ensuring durability. Brass female contacts with tin plating provide good conductivity and corrosion resistance.

Supports operating temperatures from -40°C up to 105°C. Designed for wire-to-board connection with solder termination type. Voltage rating of 100 V and current rating of 2 A suitable for low power circuits. Compliance with RoHS standards ensures environmental safety.

This EDAC 140 series PCB Header is suitable for use in industrial electronics, commercial devices, telecommunications, instrumentation, control panels, and other applications requiring robust and compact PCB connectivity solutions. Its surface mount design enhances manufacturing efficiency by supporting automated assembly processes.
