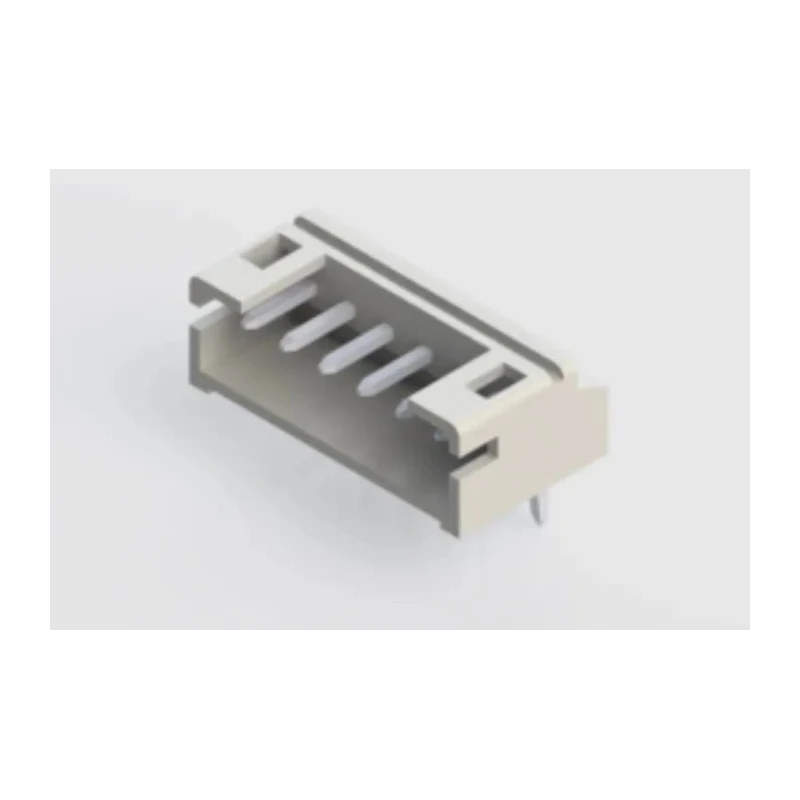

EDAC 140 Series Right Angle Through Hole PCB Header, 6 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-506-415-000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | EDAC |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polyamide 66 |
| Contact Material | Brass |
| Series | 140 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.4mm |
Key Features
- This PCB header is shrouded to provide protection and secure connections.
- Constructed with polyamide 66 housing for durability and stability.
- The brass contacts are tin plated to ensure reliable electrical conductivity.
- Rated for a current of 2 amperes and voltage of 100 volts.
- Operates within a temperature range from -40°C to 105°C, suitable for various applications.
- Features female contact gender and solder termination type for reliable PCB mounting.
- The connector system is wire-to-board, ideal for internal wire connections.
- Tail pin length is 3.4 mm, designed to fit standard PCB layouts.
Product Description
The EDAC 140-506-415-000 is a right angle through hole PCB header designed for high-density internal wire to PCB connections. It features 6 female brass contacts arranged in a single row at a 2 mm pitch and is enclosed in a shrouded polyamide 66 housing, providing mechanical protection and stable connections.
Rated to carry 2 amps of current and withstand a voltage of 100 volts, this connector is well suited for electronics assembly applications requiring reliable and consistent wire-to-board interfacing. With its solder termination type and a tail pin length of 3.4 mm, it easily mounts to PCBs using through hole techniques.
The header is engineered to operate reliably across a broad temperature range from -40°C to 105°C, making it suitable for demanding industrial and electronic environments. Its polyamide 66 insulation material complies with UL94V-0 flammability standard, ensuring safety in usage.
Applications for this component include industrial electronics, telecommunications, instrumentation, and other electronic manufacturing scenarios where robust PCB connections are essential. The right angle orientation helps optimize space on circuit boards and improves wire routing.
This PCB header is shrouded, providing additional safety and preventing accidental shorts. Manufactured with polyamide 66 housing for durability and thermal resistance. Incorporates brass contacts with tin plating for superior electrical performance.
Supports 2 A current and 100 V voltage ratings suitable for medium power applications. Designed for wire-to-board connections with solder termination for secure fixing. Operates effectively from -40°C to 105°C temperature range for versatile industrial use.
Features a 3.4 mm tail pin length that fits standard PCB designs. Country of origin is China, reflecting global manufacturing standards. Explore related components in the PCB Header category at EnvMart to find compatible connectors and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current of 2 amperes and a voltage of 100 volts.
The contacts in this model are arranged at a pitch of 2 mm.
The tail pin length of this header is 3.4 mm, designed to fit standard PCB layouts.
The housing of this PCB header is constructed from polyamide 66, providing durability and stability.
This model features a solder termination type for reliable PCB mounting.
It operates effectively within a temperature range from -40°C to 105°C.
This header has 6 female contacts arranged in a single row.
This model is shrouded, providing additional protection and preventing accidental shorts.
The orientation of this PCB header is right angle, which helps optimize space on circuit boards.
The housing material complies with the UL94V-0 flammability standard and is RoHS compliant.
This model supports a wire-to-board connector system, ideal for internal wire connections.
The contacts are made of brass and are tin plated to ensure reliable electrical conductivity.
