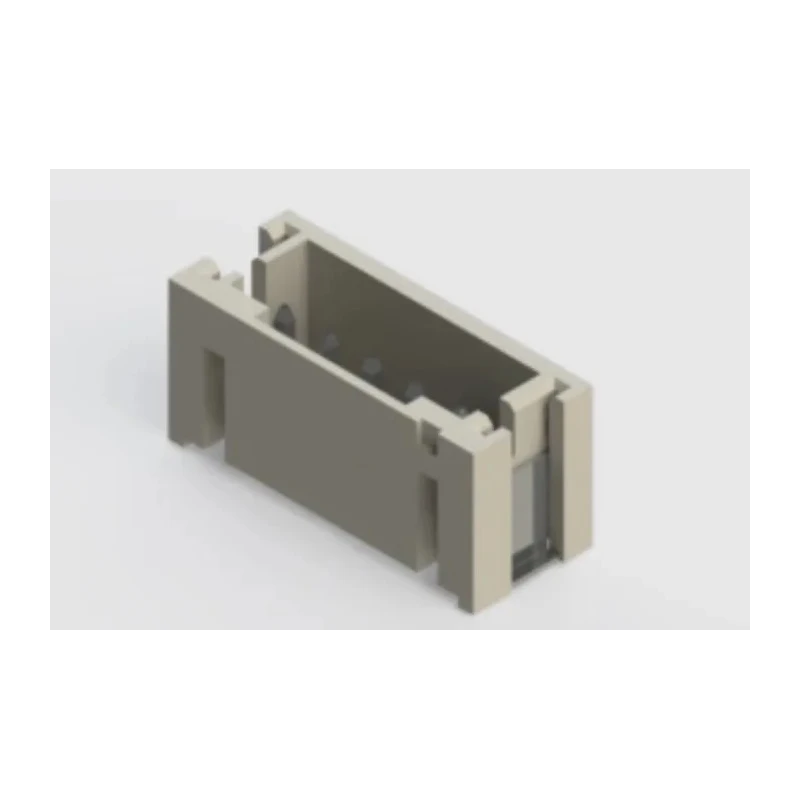

EDAC 140 Series Vertical Surface PCB Header 5 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-505-417-011
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | EDAC |
| Orientation | Vertical |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Polyamide 9T |
| Contact Material | Brass |
| Series | 140 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed from polyamide 9T housing material ensuring durability and heat resistance.
- Supports a maximum current rating of 2A suitable for low power PCB applications.
- Shrouded connector design provides extra protection against damage and enhances safety.
- Vertical orientation with surface mount type enables efficient PCB assembly.
- Contacts made of brass with tin plating for reliable conductivity and corrosion resistance.
- Operates reliably in temperatures ranging from -40°C to +105°C.
- Designed for a voltage rating up to 100V in compliance with RoHS standards.
- Termination type is solder, ensuring solid and lasting electrical connections.
Product Description
EDAC 140-505-417-011 Vertical Surface PCB Header is engineered for high-density wire-to-board connections featuring 5 female contacts arranged in a single row with a 2 mm pitch. The shrouded design provides enhanced protection against mechanical and environmental factors while ensuring secure mating performance.
The PCB header is constructed with a polyamide 9T housing material, offering excellent insulation properties, thermal stability, and flame retardance conforming to UL94V-0 standards. Brass contacts plated with tin ensure durable and corrosion-resistant electrical conduction suitable for demanding electronics applications.
Rated for a maximum current of 2A and voltage of 100V, this header accommodates a wide range of low-power electronic circuit board assemblies in industrial, laboratory, manufacturing, and commercial sectors. Its vertical orientation and surface mounting type facilitate efficient PCB layout and assembly processes.
The operating temperature range from -40°C to +105°C ensures reliable function under diverse environmental conditions. Solder termination type ensures a strong mechanical and electrical connection to the PCB. The product meets RoHS compliance requirements making it suitable for environmentally responsible projects.
Incorporate this EDAC 140 series PCB header into your electronic design for a dependable wire-to-board connection solution that offers both ruggedness and compactness. Constructed from polyamide 9T housing material ensuring durability and heat resistance.
Supports a maximum current rating of 2A suitable for low power PCB applications. Shrouded connector design provides extra protection against damage and enhances safety. Vertical orientation with surface mount type enables efficient PCB assembly.
Contacts made of brass with tin plating for reliable conductivity and corrosion resistance. Operates reliably in temperatures ranging from -40°C to +105°C. Designed for a voltage rating up to 100V in compliance with RoHS standards.
Termination type is solder, ensuring solid and lasting electrical connections. Female contact gender allows for secure mating with complementary connectors. Manufactured in China with high quality and performance standards.
Explore a wide range of PCB Connectors and headers at EnvMart suitable for electronics manufacturing and repair needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating is 2A, making it suitable for low power PCB applications.
This model is designed for a voltage rating of up to 100V.
It operates reliably within a temperature range of -40°C to +105°C.
The housing is made from polyamide 9T, while the contacts are made of brass with tin plating for conductivity and corrosion resistance.
This model features 5 female contacts arranged in a single row.
It uses a solder termination type, ensuring a solid and lasting electrical connection to the PCB.
The pitch of the contacts is 2 mm.
This model has a vertical orientation with a surface mount type.
Yes, it meets RoHS compliance requirements.
It utilizes a wire-to-board connector system.
It is manufactured in China.
The shrouded design offers extra protection against damage and enhances safety during use.
