Bourdon 100 mm G 1/2 Bottom Pressure Gauge, 16 bar MEX5-D31.B24

Free Delivery in India | Lowest Global Shipping Charges

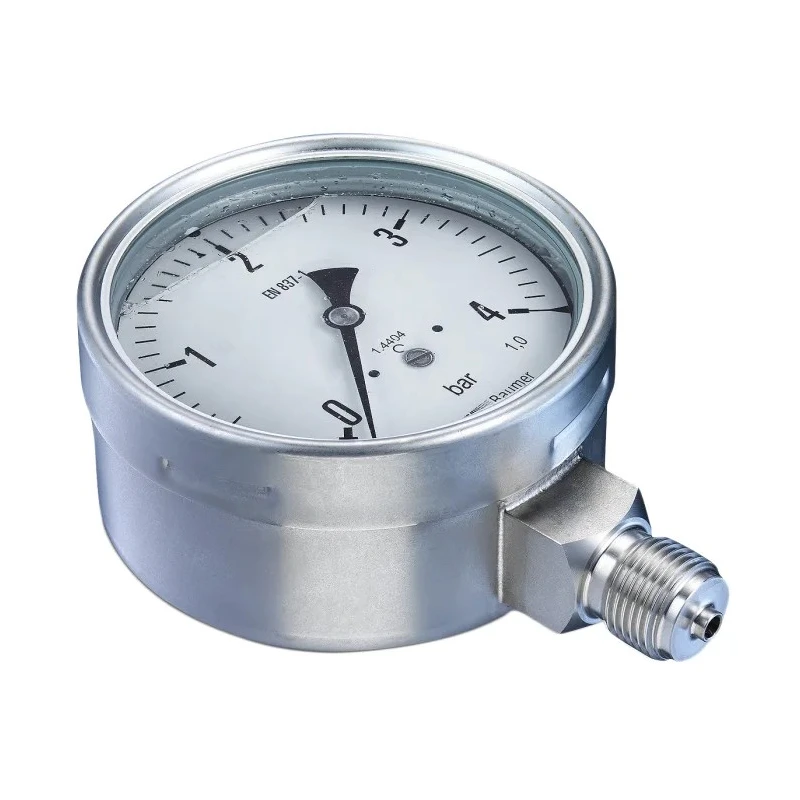

Bourdon 100 mm G 1/2 Bottom Pressure Gauge, 16 bar MEX5-D31.B24

Name: Bourdon 100 mm G 1/2 Bottom Pressure Gauge, 16 bar MEX5-D31.B24
Brand: Bourdon
SKU: 205845
Price: 162.48 USD
Availability: InStock



Category Pressure Gauges Brand Bourdon Condition New

Specifications

Country of Origin	China
Accuracy	±1 %
Brand	Bourdon
Model	MEX5-D31.B24
Connection Type	Bottom
Case Material	Stainless Steel
Series	MEX5
Maximum Operating Temperature	70°C
Dial Size	100mm
Connection Size	G 1/2
PRESSURE CONNECTION	1/2 inch NPT Male
Standards/Approvals	ATEX II2GDc-IM2c, IP 65 (EN 60529), EN 837-1, Lloyds Register Approval
Maximum Pressure Measurement	16bar
Minimum Pressure Measurement	0bar
Connection Location	Bottom Entry
Dial Colour	White

Key Features

Stainless steel case material ensures durability and corrosion resistance.
Equipped with a bottom G 1/2 connection for versatile installation.
High quality instrument glass window with elastomer seal and blow-out device for operator safety.
IP65 rating provides protection against dust and low pressure water jets.
Suitable for measuring corrosive gases and liquids in industrial environments.
Maximum operating temperature of 70°C supports diverse applications.
Complies with EN 837-1 standard and holds Lloyds Register approval.
Designed for use in food and beverage, laboratory, oil & gas, chemical, water treatment, energy, transportation, and machinery sectors.

Product Description

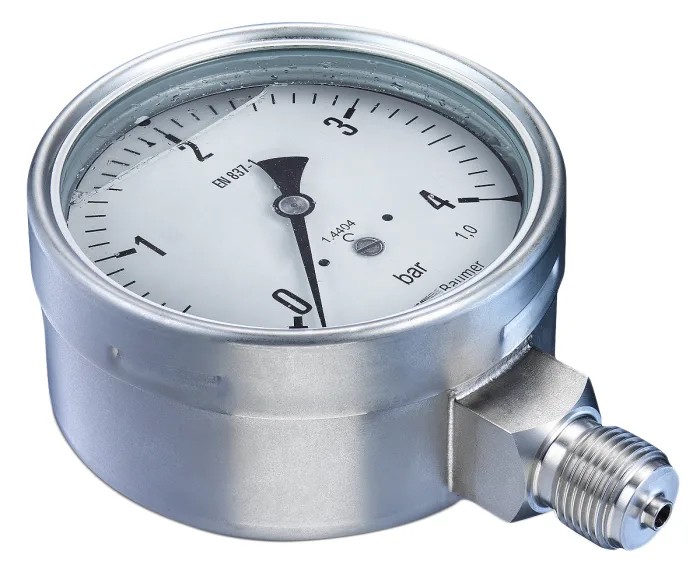

Bourdon MEX5-D31.B24 is a high precision 100 mm bottom entry pressure gauge capable of measuring pressures up to 16 bar with ±1% accuracy. It features a robust stainless steel case and wetted parts that provide excellent corrosion resistance, making it ideal for use in demanding industrial and laboratory conditions. The gauge has a white dial with clear black markings and a black plastic pointer, ensuring easy readability.

This pressure gauge includes a high quality instrument glass window sealed by an elastomer to protect internal components, along with a blow-out device for operator safety. The G 1/2 bottom connection allows straightforward installation in various systems. With an IP65 ingress protection rating, the unit is dust-tight and resistant to water jets, enhancing its reliability in harsh environments.

Designed according to EN 837-1 standards and carrying Lloyds Register approval, this gauge is suitable for measuring corrosive gases and liquids. Its maximum operating temperature of 70°C allows it to function effectively in many industrial applications.

Typical applications include food and beverage processing, medical and laboratory instrumentation, oil and gas industry measurement, chemical processing, water and wastewater treatment, energy systems, transportation and logistics, and machinery monitoring. The durable stainless steel construction ensures long service life even in challenging conditions.

Stainless steel accuracy class 1.0 pressure gauge with black pointer and white dial face. Fully welded process connection reduces leak risks. Instrument glass window with elastomer seal and blow-out device for safety. IP 65 protection rating against dust and water jets.

Suitable for corrosive gas and liquid media. Conforms to EN 837-1 with Lloyds Register approval. Operating temperature up to 70°C. Bottom entry G 1/2 connection size. This product is offered new and manufactured in China. For more industrial measurement solutions, browse the Pressure Gauges category on EnvMart.
