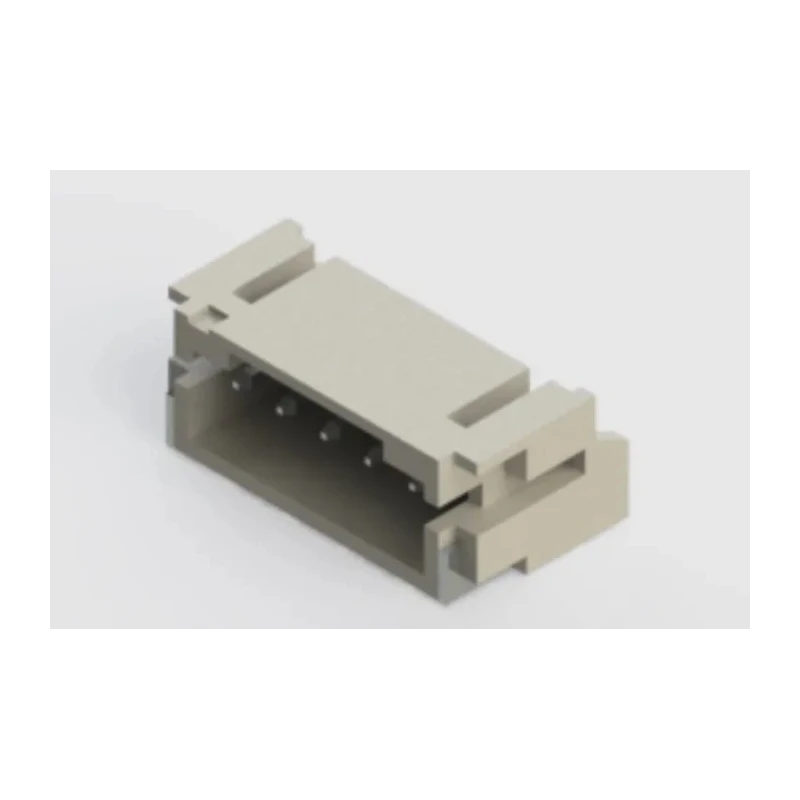

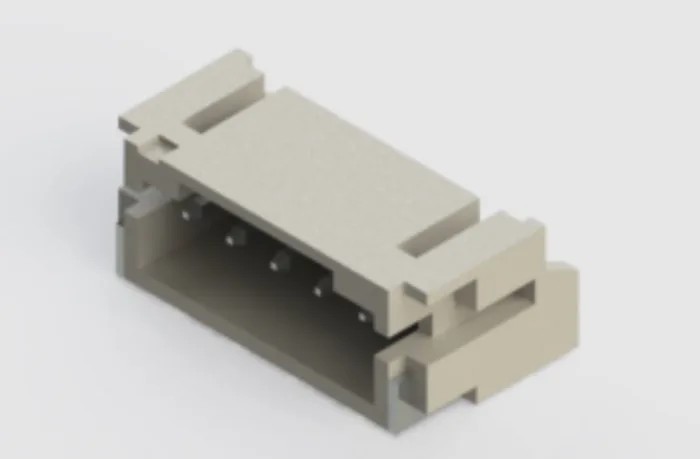

EDAC 140 Series Right Angle Surface PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-505-417-060

EDAC 140-505-417-060 is a right angle surface mount PCB header, designed for high-density connections in electronic equipment where reliable wire-to-board interfacing is required.

This 5-contact connector uses a 2 mm pitch, with contacts arranged in a single row, featuring a shrouded design that protects the contacts and enhances safety during installation and operation.

Constructed with a durable Polyamide 9T housing and brass contacts plated with tin, this PCB header ensures excellent mechanical strength and corrosion resistance suitable for industrial and commercial electronic applications.

The connector is rated for 100 V operating voltage and supports up to 2 A current, ideal for signal and low power applications. It operates reliably within a temperature range of -40°C to +105°C, suitable for a variety of environments including industrial, manufacturing, and laboratory electronics.

Termination is by solder, compatible with standard surface mount assembly processes. Its low profile insulator body and side entry configuration enable efficient PCB layout and assembly.

This connector meets RoHS compliance, ensuring it adheres to environmental safety standards by restricting hazardous substances. The connector features a right angle orientation with 1 row and 5 female contacts. Contacts made from brass with tin plating provide excellent conductivity and corrosion resistance.

Housing is made of Polyamide 9T offering high temperature resistance and durability. Rated for 100 V voltage and 2 A current for reliable signal transmission. Operating temperature range from -40°C to +105°C helps maintain performance in diverse environments.

Shrouded design offers additional protection against contact damage or short circuits. Surface mount technology enables easy PCB integration and solder termination. Compact 2 mm pitch and 1 row design for space efficient PCB layouts.

RoHS compliant for environmental and material safety standards.

This EDAC 140 series right angle PCB header is an excellent choice for applications in electronics manufacturing, industrial controls, communication equipment, and other fields requiring robust, compact wire-to-board connectors.
