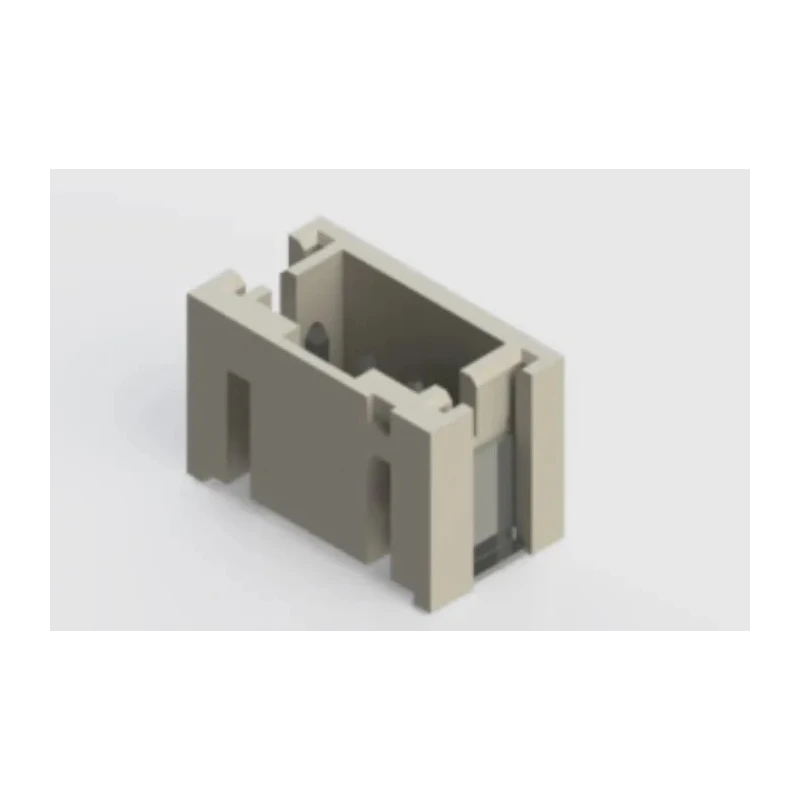

EDAC 140 Series Vertical Surface Mount PCB Header, 3 Contacts, 2 mm Pitch, 1 Row, Shrouded, 100V, 2A 140-503-417-011

EDAC 140-503-417-011 is a high-reliability vertical surface mount PCB header from the EDAC 140 Series. Designed for robust signal transmission, it features a shrouded 3-contact configuration with a standard 2 mm pitch and single-row orientation. Its compact design enables premier use in space-constrained electronic assemblies, providing optimal routing and retention on printed circuit boards (PCBs).

Housed in durable Polyamide 9T for excellent mechanical stability, this connector supports an operating current up to 2A and voltage rating of 100V, meeting the requirements for a broad range of low-voltage applications. Tin-plated brass contacts ensure strong conductivity while resisting oxidation over time, making it suitable for demanding environments.

Features a shrouded header to prevent misalignment and enhance secure connection interfaces. Vertical mounting and surface solder termination facilitate streamlined and automated PCB assembly. Operational in temperatures from -40°C to 105°C, ensuring suitability for industrial and commercial electronics.

Wire-to-board design supports high-density internal connections for compact devices. RoHS-compliant to help users meet environmental and regulatory guidelines. 1000 MΩ minimum insulation resistance (as per typical series data), supports reliable insulation in critical designs.

Commonly used in instrument panels, embedded systems, industrial automation, consumer electronics, and control boards. Compatible with automated assembly systems for volume production environments.

Typical industrial applications include factory automation, embedded controllers, measurement systems, telecommunications, and various wire-to-board interface scenarios. The durable construction and universal pitch allow use in industrial, laboratory, automotive, and electronic manufacturing sectors.

For engineers and designers looking for reliable, compliant, and easily assembled PCB headers, EDAC’s 140-503-417-011 offers proven performance in demanding environments. Contact gender is female, with brass contacts and UL94V-0 flameretardant insulator. Part is supplied as a single header, ready for integration into PCB assemblies.
