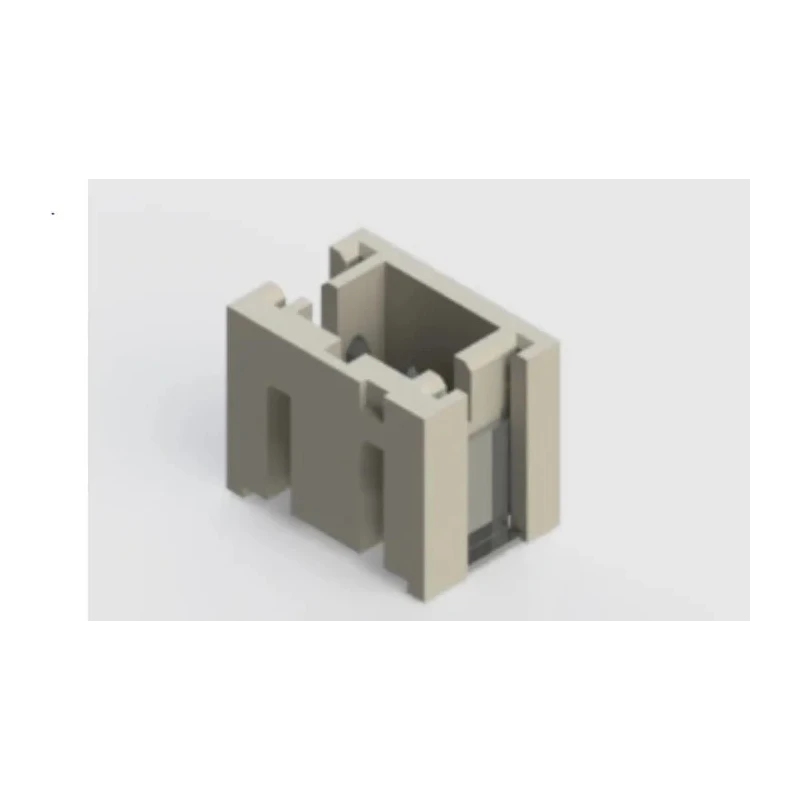

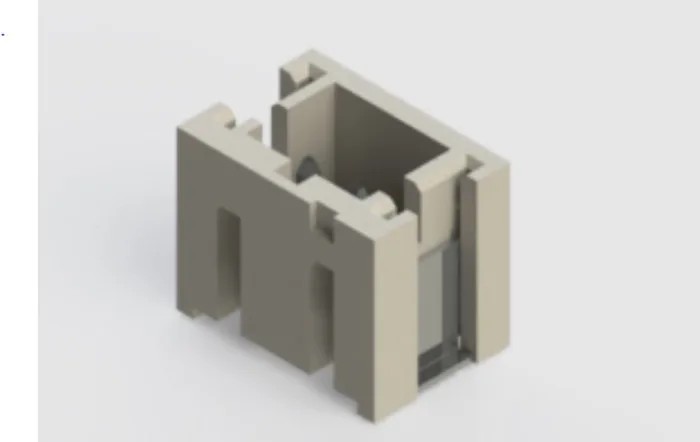

EDAC 140 Series Vertical Surface PCB Header 2 Contact, 2 mm Pitch, 1 Row, Shrouded 140-502-417-011

The EDAC 140-502-417-011 is a high-density Vertical Surface PCB Header designed for wire-to-board connectivity in electronics applications. Featuring 2 contacts with a standard 2 mm pitch and a shrouded, single-row configuration, this connector is ideal for secure and organized PCB connections.

Constructed with a robust polyamide 9T housing material, it guarantees excellent electrical insulation and mechanical stability under demanding industrial environments. The brass contact pins are plated with tin for enhanced conductivity and corrosion resistance, ensuring long-lasting performance.

Rated for a maximum current of 2 Amps and operating at up to 100 Volts, this surface mount connector supports applications requiring reliable power and signal transmission. The solder termination type facilitates easy PCB assembly, while its vertical orientation saves space and offers convenient top-entry wire-to-board connection.

Operating temperature suitability from -40°C to 105°C allows it to perform reliably across diverse industrial, laboratory, and commercial environments including manufacturing electronics, automation systems, and test equipment.

The shrouded female contact design improves safety by minimizing accidental contact and aligning pins during insertion. This product complies with RoHS standards, affirming its environmental safety and quality.

The connector features a vertical orientation for space-efficient PCB mounting. Made from high-quality polyamide 9T housing material ensuring durability and insulation. Brass contacts with tin plating guarantee reliable electrical connectivity and corrosion resistance.

Supports 2 Amps current and 100 Volts operating voltage with solder termination type. Operating temperature range from -40°C to 105°C suitable for wide industrial applications. Shrouded female contact gender improves safety and prevents misalignment.

Designed for surface mount with a single row layout and 2 mm row pitch. Compliance with RoHS standards ensures environmentally friendly manufacturing.

This PCB header is widely used in electronics manufacturing, industrial automation, instrumentation, automotive electronics, and other sectors requiring compact, reliable wire-to-board connectors. Explore more PCB Headers and Connectors on EnvMart to meet your application needs.
