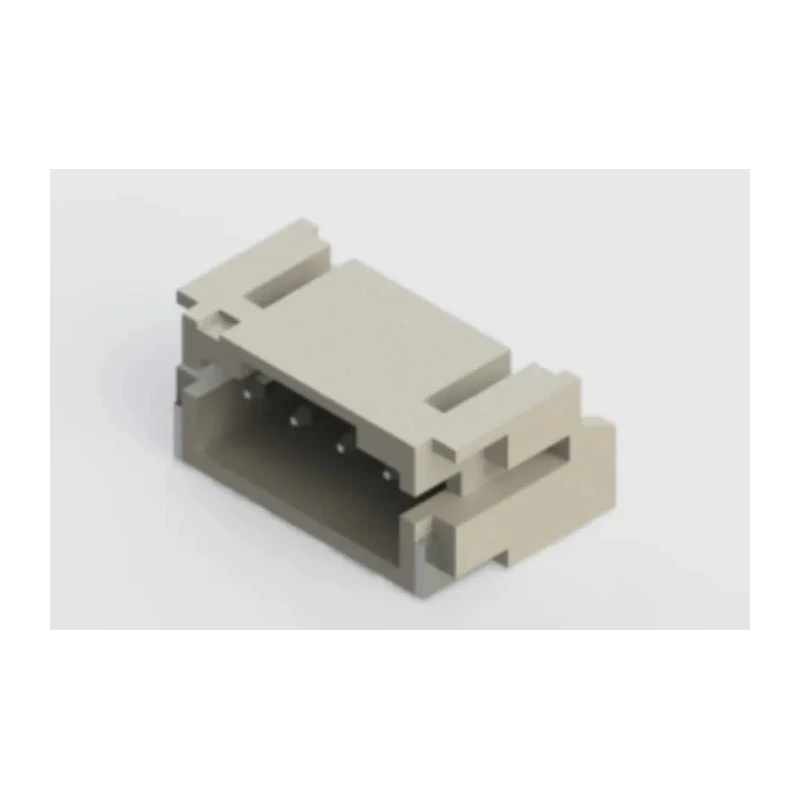

EDAC 140 Series Right Angle Surface PCB Header, 4 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-504-417-060

The EDAC 140 series 140-504-417-060 is a high-quality right angle surface mount PCB header designed for precise electronic assembly applications. Featuring 4 contacts spaced at a 2 mm pitch in a single row configuration, this female contact connector enables secure and dense internal wire-to-board connections in electronic equipment.

Constructed from durable polyamide 9T housing material, which provides UL94V-0 flame retardancy, the connector ensures enhanced safety and mechanical strength. The brass contacts plated with tin offer excellent conductivity and corrosion resistance. The connector is shrouded, providing protection to contacts and supporting correct mating during assembly.

Its solder termination design facilitates stable attachment to printed circuit boards, making it suitable for automated manufacturing processes. The connector supports a voltage rating of 100V and a current capacity of 2A, meeting typical requirements for moderate power PCB connections.

Operating within a temperature range of -40°C to 105°C, this connector is suitable for diverse industrial, commercial, and consumer electronic applications, including communications equipment, instrumentation, and control systems.

The product complies with RoHS standards, reflecting commitment to environmental safety and restriction of hazardous substances. Its compact right angle orientation allows for space-saving board layouts.

Designed for high-density wire-to-board connections. Single row with 4 female contacts arranged at 2 mm pitch. Polyamide 9T housing with flame retardant UL94V-0 rating. Brass contacts plated with tin for reliable performance.

Operating temperature from -40°C to 105°C. Shrouded design protects contacts and aids mating. Solder termination type for secure PCB mounting. Voltage rating of 100V and current of 2A. RoHS compliant for environmental safety.

This PCB header is ideal for use in electronics manufacturing, assembly, and repair, especially in industrial instruments, telecommunications equipment, and embedded systems. Explore additional PCB Headers and connectors at EnvMart for comprehensive component solutions.
