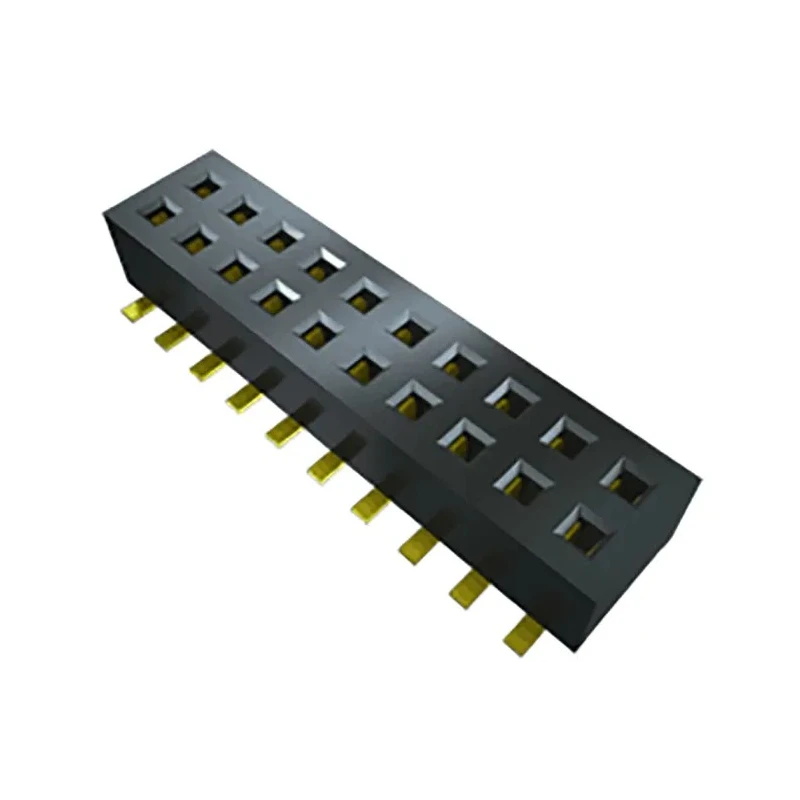

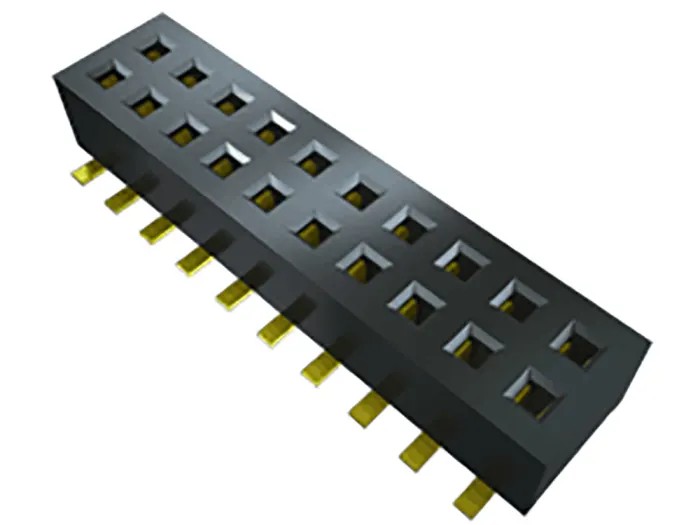

Samtec CLP Series Right Angle Surface PCB Socket, 10 Contacts, 2 Row, 1.27 mm Pitch, Solder, CLP-105-02-G-D-P

Free Delivery in India | Lowest Global Shipping Charges

Samtec CLP Series Right Angle Surface PCB Socket, 10 Contacts, 2 Row, 1.27 mm Pitch, Solder, CLP-105-02-G-D-P

Name: Samtec CLP Series Right Angle Surface PCB Socket, 10 Contacts, 2 Row, 1.27 mm Pitch, Solder, CLP-105-02-G-D-P
Brand: Samtec
SKU: 82068
Price: 2.7 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	395V
Brand	Samtec
Orientation	Right Angle
Current	3.4A
Model	CLP-105-02-G-D-P
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	CLP
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	10
Connector System	Board-to-Board

Key Features

Provides 10 reliable contacts arranged in dual rows for effective multiple connections.
Features right angle orientation designed specifically for surface mounting on PCBs.
Supports a current rating of up to 3.4 A and a voltage rating of 395 V, ensuring compatibility with demanding electronic environments.
Built with a durable liquid crystal polymer housing and bronze contacts for enhanced longevity.
The socket uses gold plating on contacts to maintain high conductivity and minimize signal loss.
Operates across wide temperature ranges from -55°C to 125°C for robust environmental adaptability.
Designed as a board-to-board connector in the CLP Series for advanced electronic circuits.

Product Description

The Samtec CLP-105-02-G-D-P is a high-performance right angle surface mount PCB socket from the CLP Series, engineered for compact board-to-board connections in advanced electronic assemblies. This socket comes with 10 contacts configured in two parallel rows, each with a fine 1.27 mm pitch, making it ideal for high-density PCB layouts.

This connector is specifically designed for surface mounting, which streamlines assembly processes and supports automated placement. The right angle orientation enables low-profile connections in space-constrained applications, offering excellent mechanical and electrical integration. With a robust liquid crystal polymer housing and precision-machined bronze contacts finished with gold plating, the CLP-105-02-G-D-P ensures highly reliable connections and exceptional durability, even in demanding environments.

The socket supports a maximum current rating of 3.4 A and withstands up to 395 V, making it well-suited for both signal and low-power applications. It is capable of operating across a broad temperature range from -55°C to 125°C, providing consistent performance in extreme conditions. The board-to-board connector system and precise dual-row arrangement ensure easy and efficient mating with corresponding board headers.

Additional benefits include an extended life dual wipe Tiger Claw contact design, which delivers superior electrical performance and long-term reliability. The socket supports both top and bottom entry configurations, adding flexibility for PCB layout design and assembly. Standards and approvals are noted as 'No,' with no explicit international compliance claims made on this page.

Typical applications include use in industrial control units, instrumentation, testing equipment, communication hardware, and any electronic system that demands tight connector integration within a limited footprint. The combination of reliable materials, precise engineering, and versatile mounting makes the CLP-105-02-G-D-P a preferred choice for advanced electronic designers and system integrators.

Explore more PCB connectivity solutions from Samtec in the PCB Socket and Board-to-Board Connectors categories to support all your electronic integration requirements.
