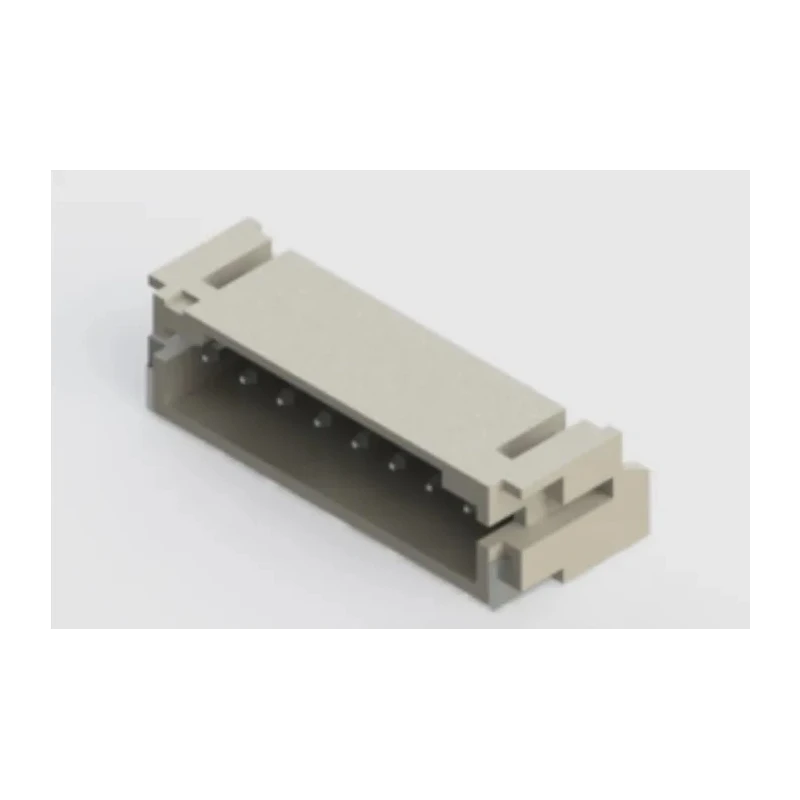

EDAC 140 Series Right Angle Surface PCB Header, 8 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-508-417-060

Free Delivery in India | Lowest Global Shipping Charges

EDAC 140 Series Right Angle Surface PCB Header, 8 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-508-417-060

Name: EDAC 140 Series Right Angle Surface PCB Header, 8 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-508-417-060
Brand: EDAC
SKU: 176346
Price: 1.12 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand EDAC Condition New

Specifications

Country of Origin	China
Voltage	100V
Brand	EDAC
Orientation	Right Angle
Current	2A
Mount Type	Surface
Housing Material	Polyamide 9T
Contact Material	Brass
Series	140
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Female
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header features a shrouded design for secure mating and protection.
It has 8 female brass contacts with tin plating for reliable conductivity.
The connector operates at a voltage rating of 100 V and current rating of 2 A.
The housing is made from high-quality Polyamide 9T to ensure durability.
Surface mount type and right angle orientation facilitate compact PCB layouts.
Effective operating temperature range is -40°C to 105°C for versatile industrial use.
The connector is RoHS compliant, meeting modern environmental standards.

Product Description

EDAC 140-508-417-060 is a right angle surface mount PCB header designed for high-density wire-to-board connections. This 2 mm pitch, 8-contact, 1 row shrouded connector offers a secure and reliable interface ideal for electronic component assemblies requiring compact form factors.

The connector system uses female brass contacts plated with tin to provide low resistance and optimal electrical performance. The polyamide 9T housing ensures strong insulation and mechanical stability while maintaining a low-profile design conducive for space-saving PCB layouts.

Operating within a temperature range of -40°C to 105°C, this header is suitable for various industrial, manufacturing, HVAC, and electronic applications. It supports safe voltage handling up to 100 V and current up to 2 A, making it applicable to multiple power and signal transmission uses.

This product complies with RoHS environmental standards, assuring lead-free materials and sustainable manufacturing practices. Surface mount termination with solder connections guarantees ease of assembly and reliable attachment to printed circuit boards.

Overall, the EDAC 140 series right angle surface PCB header provides a durable, high-quality solution for electronic engineers and manufacturers demanding efficient wire-to-board interconnectivity in compact designs.

This PCB header features a shrouded design for secure mating and protection. It has 8 female brass contacts with tin plating for reliable conductivity. The connector operates at a voltage rating of 100 V and current rating of 2 A.

The housing is made from high-quality Polyamide 9T to ensure durability. Surface mount type and right angle orientation facilitate compact PCB layouts. Effective operating temperature range is -40°C to 105°C for versatile industrial use.

The connector is RoHS compliant, meeting modern environmental standards. Explore the wide selection of PCB connectors at EnvMart to find compatible components matching your industrial and development requirements.

Explore more products in our PCB Connectors & Wire Housings category.
