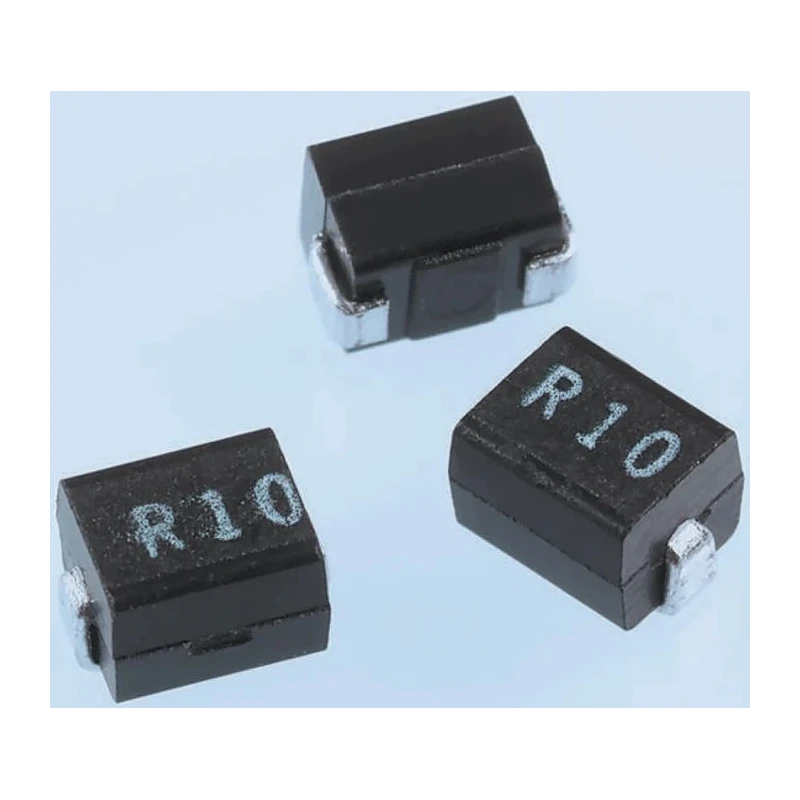

Panasonic WE-GF 1210 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 33 μH ±10% 70 mA Idc 744764133
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 2.2mm |
| Length | 3.2mm |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | WE-GF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 33μH |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 1210 |
| Maximum DC Current | 70mA |
| Pin Count | 2 |
| Maximum DC Resistance | 5.6Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 17MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
Key Features
- Constructed using a ferrite core for high frequency applications.
- Package size is 1210 with compact dimensions of 3.2mm length, 2.5mm depth, and 2.2mm height.
- Surface mount termination style promotes compact PCB mounting.
- Maximum operating temperature reaches up to 105°C for reliable thermal performance.
- Designed for applications including high frequency amplifiers, oscillators, transponders, and LC filter circuits.
- RoHS and REACH compliant ensuring environmental safety standards.
- Wirewound construction offers high quality and stable inductance performance.
- Minimum quality factor is 30 and maximum self-resonant frequency is 17MHz.
Product Description
Wurth Elektronik 744764133 WE-GF 1210 unshielded wirewound surface mount inductor delivers 33 μH inductance with ±10% tolerance and supports a maximum DC current of 70 mA. It features a ferrite core that ensures efficient high frequency operation in diverse industrial and electronic applications.
The component dimensions of length 3.2mm, depth 2.5mm, and height 2.2mm, combined with surface mount termination style, enable compact PCB design integration. Its operating temperature range from -40°C to +105°C makes it reliable for robust environments including communications, industrial automation, and power electronics.
The WE-GF series is engineered for high frequency circuits such as HF amplifiers, oscillators, transponders, and LC filter circuits, providing stable and consistent performance. Compliance with RoHS and REACH ensures environmental and safety regulation adherence.
Its wirewound construction offers mechanical robustness and high quality inductance characteristics. The inductor features a minimum quality factor of 30 and maximum self-resonant frequency of 17 MHz, optimizing signal integrity in RF applications.
With a maximum DC resistance of 5.6 Ω, power losses are minimized, enhancing efficiency. This component is suitable for use in high-frequency analog and digital circuits, test equipment, telecommunications, and other electronic instrumentation.
Constructed with a ferrite core for optimized performance in HF circuits. Compact 1210 package size suitable for dense PCB layouts. Wide temperature range support for harsh operational conditions. RoHS and REACH compliant for environmental safety.
Wirewound design ensures consistent inductance and mechanical durability.
This Wurth Elektronik WE-GF 1210 surface mount inductor is an ideal choice for electronic designers seeking dependable passive components for compact, high-frequency applications. Explore more Surface Mount Inductors and related components on EnvMart for industrial and electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 33 μH with a tolerance of ±10%.
It supports a maximum DC current of 70 mA.
This inductor has dimensions of 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height.
The maximum operating temperature reaches up to 105°C.
It is constructed using a ferrite core, which is suitable for high frequency applications.
The minimum quality factor is 30.
The maximum self-resonant frequency is 17 MHz.
It features a surface mount termination style, promoting compact PCB mounting.
This model is compliant with RoHS and REACH standards, ensuring environmental safety.
The maximum DC resistance is 5.6 Ω.
It is designed for high frequency applications including amplifiers, oscillators, transponders, and LC filter circuits.
It is packaged in tape and reel format, suitable for automated assembly processes.
