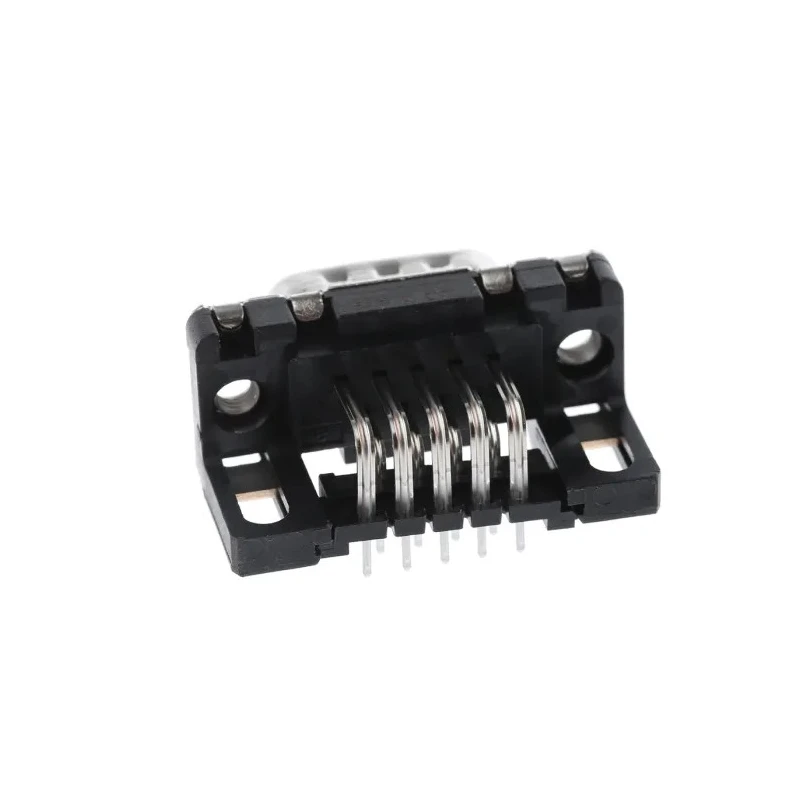

HARTING 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Male 09651227801
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 7.5A |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Mounting Hardware | M3 Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Standards/Approvals | RoHS, UL 94-V0, UL Recognised |
| Contact Plating | Gold Plated |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
Key Features
- This connector has 9 contacts designed for male solder termination.
- Constructed with a strong steel housing for durability in various environments.
- Offers a maximum current rating of 7.5A and voltage rating of 1000V.
- Operates reliably within a temperature range from -55°C to 125°C.
- Contact plating with gold ensures excellent conductivity and corrosion resistance.
- Designed to meet multiple standards including RoHS and UL certifications.
- Ideal for applications requiring a right angle connector format for space-efficient assembly.
- Incorporates a M3 threaded insert mounting hardware for robust mechanical connection.
Product Description
HARTING 09651227801 is a high-quality 9 Way Right Angle D-Sub Connector featuring a precise 2.74 mm pitch suitable for through-hole PCB mounting. This male connector is engineered with a durable steel housing which ensures mechanical robustness and long-term operational reliability in industrial and electronic applications.
It supports a current capacity of 7.5A and a voltage rating up to 1000V, making it appropriate for power and signal transmission in demanding environments. The contacts are made from copper alloy and plated with gold to provide superior electrical conductivity, resistance to corrosion, and long life.
The connector is designed to operate effectively within an extended temperature range of -55°C to 125°C, accommodating harsh operating conditions in sectors such as industrial automation, communication systems, and power electronics.
Mounting is facilitated by a through-hole style with M3 threaded insert hardware, allowing secure and stable integration in assemblies needing right angle approach connectors for space saving. Compliance with standards such as RoHS, UL 94-V0, and UL recognition underlines its safety and environmental conformance.
This connector is ideal for use in industrial, manufacturing, and laboratory electronics assemblies where reliable, high-performance connectors are essential. This connector has 9 contacts designed for male solder termination.
Constructed with a strong steel housing for durability in various environments. Offers a maximum current rating of 7.5A and voltage rating of 1000V. Operates reliably within a temperature range from -55°C to 125°C. Contact plating with gold ensures excellent conductivity and corrosion resistance.
Designed to meet multiple standards including RoHS and UL certifications. Ideal for applications requiring a right angle connector format for space-efficient assembly. Incorporates a M3 threaded insert mounting hardware for robust mechanical connection.
Choose HARTING for trusted electronic connector solutions featured extensively in industrial, electronic manufacturing, laboratory instrumentation, and power distribution setups. Explore the broad range of connectors available for efficient system integration at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a maximum current rating of 7.5A and a voltage rating of 1000V.
It operates reliably within a temperature range from -55°C to 125°C.
This model features a through-hole mounting style with M3 threaded insert hardware for secure installation.
The connector has 9 contacts designed for male solder termination.
It is constructed with a steel housing and features contacts made from copper alloy, plated with gold for enhanced conductivity.
It is designed to meet multiple standards including RoHS and UL 94-V0, and is UL Recognised.
The pitch size for this connector is 2.74 mm.
This connector is ideal for applications in industrial automation, communication systems, and power electronics requiring a right angle format.
The contact gender of this connector is male.
This model features a solder termination type for secure electrical connections.
The country of origin for this connector is India.
The gold plating on the contacts ensures excellent electrical conductivity and resistance to corrosion, enhancing the connector's longevity.
