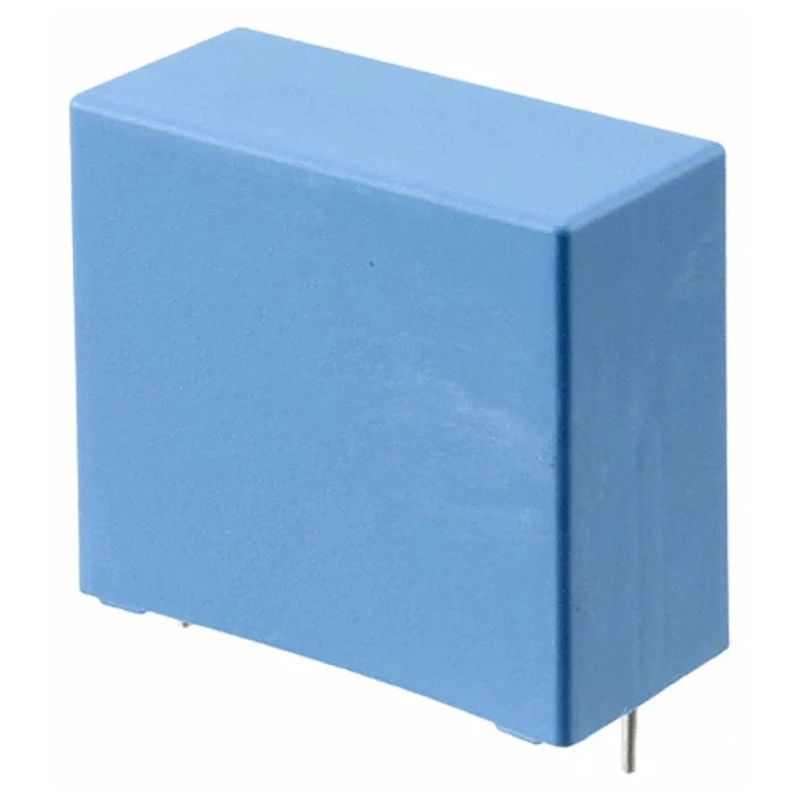

KEMET Polypropylene Capacitor 220 nF 630 V dc 180 V ac Through Hole Radial Lead PHE450
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 20.5mm |
| Length | 31.5mm |
| Model | PHE450 |
| Packaging | Tape & Reel |
| Width | 10.5mm |
| Mount Type | Through Hole |
| Series | PHE450 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Rated Voltage | 250 V dc to 3000 V dc |
| Lead Length | 6mm |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 180V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 27.5mm |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, other tolerances on request |
| Lead Spacing | 7.5 mm to 37.5 mm |
Key Features
- Double metallised polypropylene film construction ensures high reliability.
- Rated operating temperature range from -55°C to 105°C supports demanding environments.
- Encapsulated in self-extinguishing resin material compliant with UL 94 V-0 for safety.
- Lead pitch of 27.5 mm and radial terminal type with 6 mm lead length for PCB mounting.
- Low dissipation factor of 0.0003% for efficient performance in pulse and snubber circuits.
- Suitable for protection circuits in switch mode power supplies and television deflection applications.
- Comes in tape & reel packaging facilitating automated assembly.
- Compliant with RoHS environmental standards.
Product Description
KEMET PHE450 polypropylene capacitor model PHE450 features a capacitance of 220 nF with a tolerance of ±5%, supporting a rated DC voltage of 630 V and an AC voltage of 180 V. It is designed for through hole mounting with radial leads, characterized by a lead pitch of 27.5 mm and lead length of 6 mm. This capacitor operates reliably across a temperature range of -55°C to 105°C, making it suitable for industrial and electronic applications requiring robust capacitor performance.
This capacitor uses double metallised polypropylene film technology encapsulated within a self-extinguishing resin box compliant with UL 94 V-0 standards, ensuring flame retardancy and enhanced safety in demanding electrical environments. The device has a low dissipation factor of 0.0003%, minimizing energy losses during operation.
Typical applications include pulse and snubber circuits, protection circuits in switch mode power supplies, and deflection circuits in televisions. The radial terminal type and precise lead dimensions facilitate easy and secure PCB mounting.
Packaging is provided as tape & reel to support automated manufacturing processes, with compliance to RoHS standards ensuring reduced environmental impact. The capacitor is a reliable choice for industrial, manufacturing, electronic components, and laboratory use cases requiring high voltage polypropylene capacitors with stable performance.
Double metallised polypropylene film construction for high durability. Self-extinguishing encapsulation material meeting UL 94 V-0 requirements. ±5% capacitance tolerance with options for other tolerances on request. Lead spacing between 7.5 mm and 37.5 mm depending on series.
Radial terminal type with 0.8 mm lead diameter. Rated for high current stress applications and pulse demands. Operating temperature range from -55°C to 105°C.
KEMET capacitors like the PHE450 series are widely used in industrial equipment, electrical assemblies, power supplies, HVAC systems, telecom, and consumer electronics. Browse EnvMart’s Electronics Components category for related Film Capacitors and other passive components from reputed brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 220 nF with a tolerance of ±5%.
It is rated for a DC voltage of 630 V.
The maximum operating temperature is 105°C.
This capacitor is designed for through hole mounting with radial leads.
The lead pitch is 27.5 mm and the lead length is 6 mm.
The rated AC voltage for this capacitor is 180 V.
It has a low dissipation factor of 0.0003%.
The capacitor is compliant with RoHS environmental standards and is encapsulated in self-extinguishing resin material compliant with UL 94 V-0.
Typical applications include pulse and snubber circuits, protection circuits in switch mode power supplies, and deflection circuits in televisions.
The dimensions are 31.5 mm in length, 10.5 mm in width, and 20.5 mm in height.
The lead diameter is 0.8 mm.
The country of origin for this capacitor is India.
