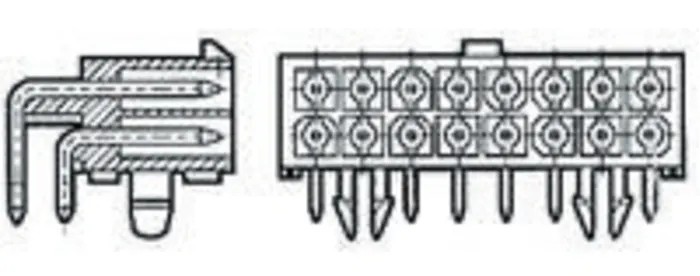

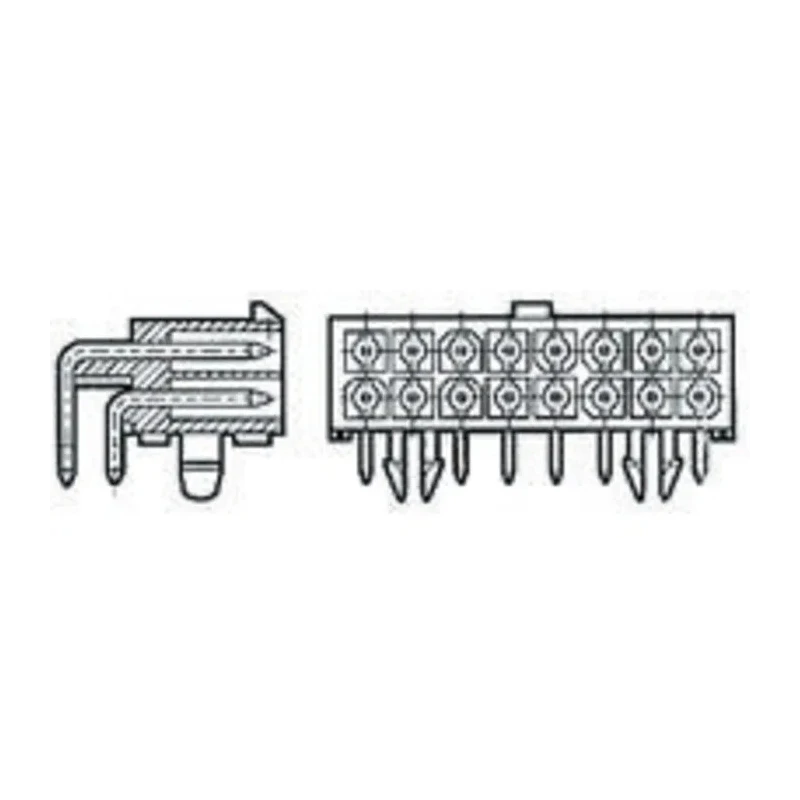

TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header 10 Contacts 4.14 mm Pitch 1-770971-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- Rated for 600V voltage and 9.5A current capacity.
- Constructed with a nylon housing that is UL94V-0 white rated for flame resistance.
- Features 2 rows of shrouded male brass contacts with gold plating for corrosion resistance.
- Right angle orientation with a tail pin length of 3.69 mm for through-hole soldering.
- Operates reliably between -55°C and 105°C temperature range.
- Incorporates positive locking latch mechanisms and board locks for secure mating and retention.
- Part of the Mini-Universal MATE-N-LOK connector system suitable for industrial and electronic applications.
Product Description
TE Connectivity 1-770971-1 Mini-Universal MATE-N-LOK Series right angle through hole PCB header offers a reliable wire-to-board connector solution designed for industrial electronics and manufacturing applications. It features 10 male contacts arranged in 2 rows with a 4.14 mm pitch, delivering a current rating of 9.5A and supporting operating voltages up to 600V.
The connector housing is made from white nylon with UL94V-0 flame retardant properties, ensuring compliance with safety requirements. The shrouded design and gold-plated brass contacts enhance durability and corrosion resistance, essential for high-reliability industrial environments.
The product is designed for through-hole mounting, featuring a 3.69 mm tail pin length and right angle orientation that facilitates secure PCB integration. Temperature ratings from -55°C to 105°C support operation in harsh conditions.
This PCB header incorporates a positive locking latch mechanism and built-in board locks that provide secure mating and retention on printed circuit boards, minimizing connection failures in demanding usage scenarios.
This Mini-Universal MATE-N-LOK connector system is widely used in industrial automation, electronic equipment manufacturing, power connectors assemblies, and other applications requiring reliable wire-to-board connections.
Rated for 600V voltage and 9.5A current capacity. Nylon housing with UL94V-0 flame retardant rating. Shrouded male brass contacts with gold plating. Right angle through hole mount with 3.69 mm tail pins. Operating temperature range: -55°C to 105°C.
Positive locking latch mechanism with board retention locks. Ideal for industrial, electronic, manufacturing, and power connector applications. Explore the TE Connectivity category on EnvMart for a wide range of certified PCB connectors and related components designed to meet high industrial standards.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 600V and a current capacity of 9.5A.
It features a right angle orientation and is designed for through-hole mounting.
The housing is made of nylon, while the contacts are constructed from brass and are gold plated for corrosion resistance.
This connector has a pitch of 4.14 mm and contains 10 male contacts arranged in 2 rows.
It operates reliably within a temperature range of -55°C to 105°C.
Yes, it incorporates a positive locking latch mechanism along with board locks for secure mating and retention.
The termination type for this model is solder.
The country of origin for this connector is India.
It is suitable for industrial automation, electronic equipment manufacturing, and power connector assemblies.
The tail pin length is 3.69 mm, designed for through-hole soldering.
This model is part of the Mini-Universal MATE-N-LOK connector system, which is designed for wire-to-board connections.
The shrouded design enhances durability and helps prevent connection failures in demanding environments.
