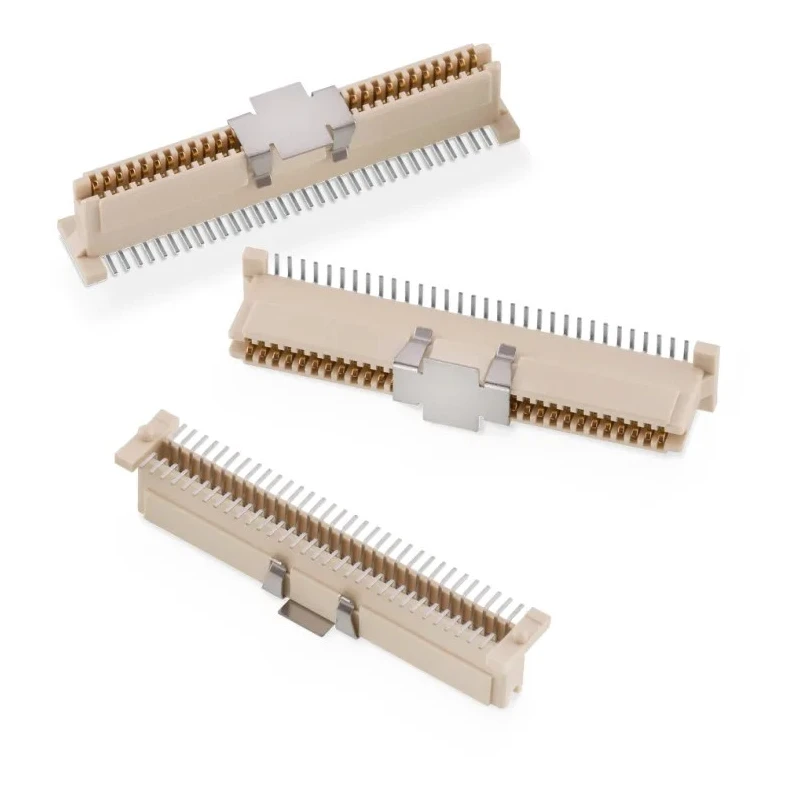

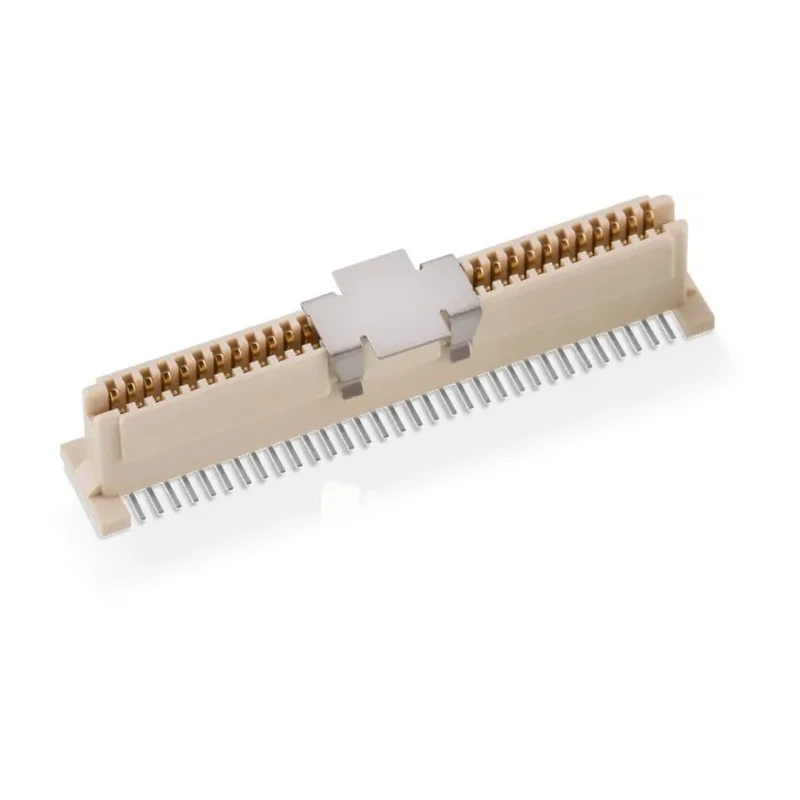

Wurth Elektronik WR-BTB Series Vertical Surface PCB Socket, 64-Contact, 1 Row, 1 mm Pitch, 100V, 1A, Solder 658107303064

Wurth Elektronik 658107303064 WR-BTB Series is a vertical surface mount PCB socket designed for reliable and efficient board-to-board connections in electronic assemblies. This PCB socket features 64 female contacts arranged in a single row with a 1 mm pitch, suitable for high-density electronic designs.

The housing is made from Liquid Crystal Polymer (LCP), providing excellent mechanical strength, thermal stability, and chemical resistance, making it ideal for demanding industrial environments. The contacts are composed of phosphor bronze and are plated with gold, ensuring low contact resistance and high durability.

Engineered for surface mounting, this vertical orientation component accommodates assembly processes requiring precise and robust soldering with standard solder termination. It comfortably operates in extreme temperature ranges from -55°C to +85°C, suitable for a wide range of electronic applications including telecommunications, industrial controls, and instrumentation equipment.

Rated at 100 volts and a continuous current of 1 ampere, this socket supports board-to-board systems that demand stable and secure electrical contacts. The product also boasts a withstanding voltage of 250 V AC which underlines its safety margin in operation.

Single row of 64 female contacts ensures high-density connectivity. Liquid Crystal Polymer housing offers excellent durability and temperature resistance. Phosphor bronze contacts plated with gold maintain conductivity and prevent corrosion.

Designed for vertical surface mount application with solder termination. Wide operating temperature range of -55°C to 85°C for industrial environments. Supports board-to-board connector systems effectively. Rated for 100V, 1A current load withstanding 250 V AC voltage.

This PCB socket is manufactured in China according to the WR-BTB series standards, ensuring quality and compatibility with Wurth Elektronik PCB connector products. Ideal for industrial electronics, telecommunications hardware, and anywhere precision and reliability are essential.
