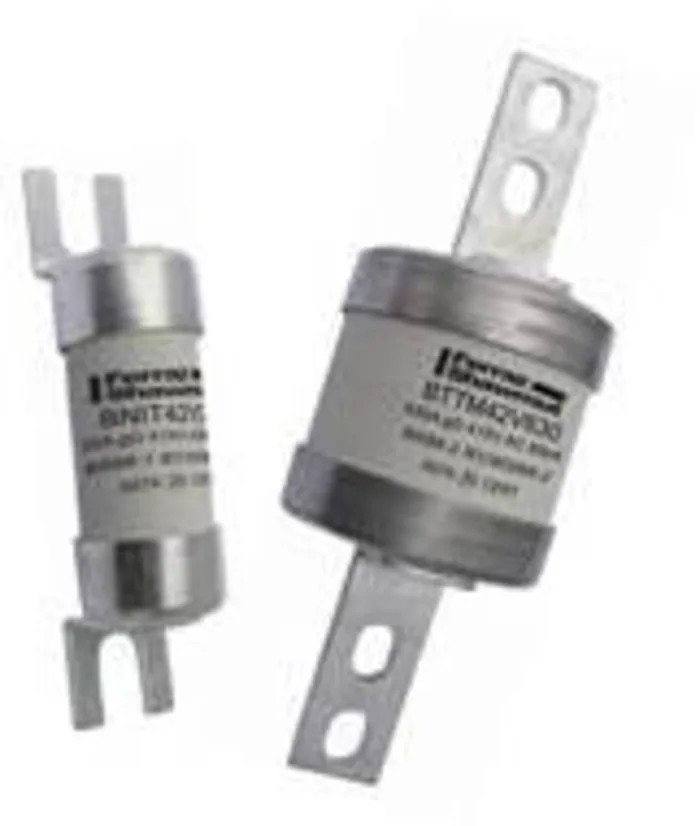

Mersen 16A Bolted Tag Fuse A2C 550V AC, 73 mm X1019242 / BTIA55V16

Free Delivery in India | Lowest Global Shipping Charges

Mersen 16A Bolted Tag Fuse A2C 550V AC, 73 mm X1019242 / BTIA55V16

Name: Mersen 16A Bolted Tag Fuse A2C 550V AC, 73 mm X1019242 / BTIA55V16
Brand: Mersen
SKU: 98181



Category Tag Fuses Brand Mersen Condition New

Specifications

Country of Origin	India
Voltage	550V ac
Diameter	13.5mm
Brand	Mersen
Height	35.5mm
Length	35.5mm
Model	X1019242 / BTIA55V16
Width	13.5mm
Overall Length	86mm
Current Rating	16A
Series	Offset Tag fuse-links gG 550VAC/250VDC
Standards/Approvals	RoHS, EN 60269-2, CE, REACH
Fuse Size	A2C
Fixing Centres	73 mm
Tag Width	9.2mm
Tag Orientation	Offset

Key Features

This fuse is rated for 16 amps current carrying capacity.
It features an A2C fuse size with a high rupture capacity type gG rating.
The fuse is intended for 550V AC voltage applications.
Fixing centres measure 73 mm for secure mounting.
The tag width is 9.2 mm with an offset tag orientation.
The overall dimensions are 86 mm in length, 35.5 mm in height, and 13.5 mm in diameter and width.
These fuses are compliant with RoHS, EN 60269-2, CE, and REACH standards.
The fuse links are suitable for bolted attachments in fuse holders or directly onto busbars.

Product Description

Mersen X1019242 / BTIA55V16 bolted tag fuse A2C 550V AC, 73 mm is a high-quality industrial electrical fuse designed for general purpose (gG type) and motor protection (gM type) applications. It features a 16 amp current rating and supports 550 volts alternating current, making it suitable for a wide range of electrical circuits requiring reliable overcurrent protection.

The fuse has a size designation of A2C and includes an offset tag orientation with fixing centres spaced at 73 mm, allowing for secure installation in fuse holders or direct bolting onto busbars and fuse interruptors disconnectors. Its high rupture capacity ensures excellent limitation of fault currents and reduces potential damage to electrical equipment under overload conditions.

Measuring 86 mm overall in length, 35.5 mm in height, with a diameter and width of 13.5 mm, this fuse is compact but designed for effective performance in industrial and commercial electrical distribution systems. Compliance with international standards such as RoHS, EN 60269-2, CE, and REACH guarantees adherence to safety, environmental, and quality requirements.

These fuses are manufactured in India, supplied in new condition, and are suitable for use in electronics and electrical automation systems, industrial power distribution, motor circuit protection, and other heavy electrical applications where reliable fuse performance is critical.

This fuse provides 16 amps rated current for reliable overcurrent protection. The A2C fuse size fits standardized mounting and busbar connections. It operates safely at 550V AC voltage limits. Manufactured according to international standards including RoHS and CE for safety and environmental compliance.

Fixing centres of 73 mm allows easy integration into fuse holders or bolted busbar applications. High rupture capacity design limits electrical fault current effectively. Compact dimensions ensure compatibility with high density installations.

Suitable for industrial, laboratory, construction, and manufacturing electrical protection systems. Product made in India, offering quality assurance and reliability. Explore more industrial electrical protection products like Tag Fuses and circuit breakers on EnvMart to find solutions tailored for your applications.
