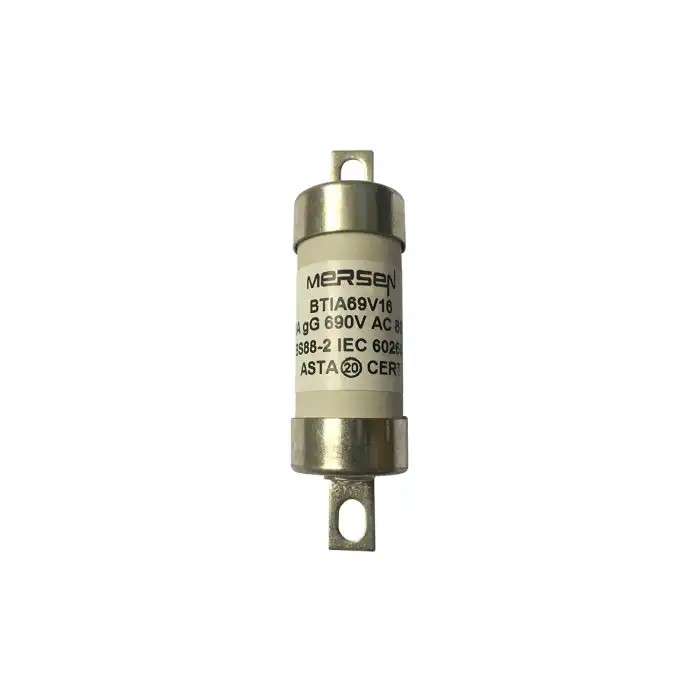

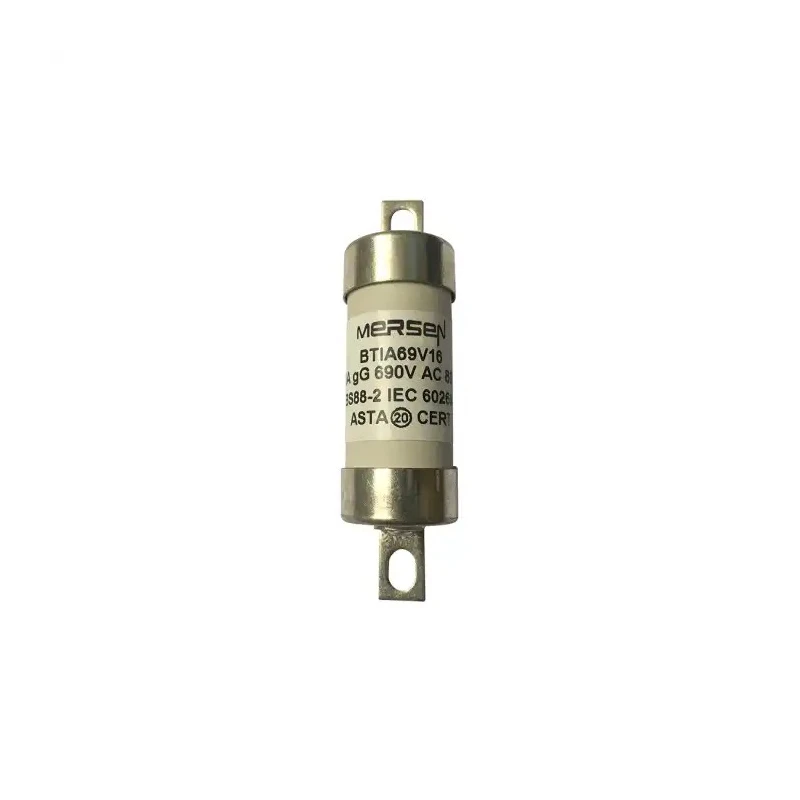

Mersen Bolted Tag Fuse, A2, 16A, 690V AC, 73mm Fixing Centres L1019255 / BTIA69V16
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 690V ac |
| Diameter | 21.9mm |
| Brand | Mersen |
| Height | 56.5mm |
| Length | 56.5mm |
| Model | L1019255 / BTIA69V16 |
| Width | 21.9mm |
| Overall Length | 86mm |
| Current Rating | 16A |
| Series | Offset Tag fuse-links gG 690VAC/460VDC |
| Standards/Approvals | EN 60269-2, REACH, CE, RoHS |
| Fuse Size | A2 |
| Fixing Centres | 73 mm |
| Tag Width | 9.2mm |
| Tag Orientation | Offset |
Key Features
- Provides robust protection for electrical circuits with a 16A current rating.
- Operates on 690V AC, suitable for high voltage environments.
- Designed with A2 fuse size for compatibility with standard holders.
- Bolted tags and offset orientation ensure stable mounting.
- Compliance with EN 60269-2, CE, REACH, RoHS standards for safety and quality.
- 73mm fixing centres for reliable installation in fuseholders and busbars.
- High F speed fuse for rapid response to overloads.
- Durable build with dimensions 86mm overall length and 21.9mm diameter.
Product Description
The Mersen L1019255 / BTIA69V16 Bolted Tag Fuse, A2, 16A, 690V AC is a high-quality fuse engineered for demanding industrial, electrical, and automation environments. It provides secure circuit protection for devices and installations operating at up to 690V AC.
This fuse features a rated current capacity of 16A and is manufactured with an A2 size, ensuring compatibility with standard fuse holders and interruptors. The offset tag orientation and bolted tags allow for stable installation, whether mounted directly onto busbars or in fuseholder assemblies. Its fixing centre spacing of 73mm aids alignment and fitting in standard panels.
Mersen's fuse meets rigorous quality and safety standards, including EN 60269-2, REACH, CE, and RoHS certifications. The product is engineered for both general-purpose protection (gG type) and motor protection (gM type), delivering excellent current limitation across a wide range of overload scenarios. High-speed fuse action (Type F) ensures rapid response, preventing damage to expensive equipment during electrical faults or surges.
The fuse construction features a durable body with overall length of 86mm, diameter of 21.9mm, and width of 21.9mm. Its tag width of 9.2mm and height of 56.5mm further support robust installation. The engineered non-high-rupture design allows usage in applications requiring consistent performance, without unnecessary complexity.
Designed for industrial control panels, automation systems, motor circuits, HVAC, commercial electrical distributions, water treatment facilities, and manufacturing plants, the Mersen bolted tag fuse is an ideal choice for reliable circuit protection.
Browse EnvMart's Electrical Fuse category to discover more high-performance circuit protection solutions from Mersen and other global brands.
Explore more products in our Tag Fuses category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 690V AC, suitable for high voltage environments.
The overall length is 86mm, and it has a diameter of 21.9mm.
The fixing centres for this unit are 73mm, which aids in alignment during installation.
It complies with EN 60269-2, REACH, CE, and RoHS standards for safety and quality.
It features an offset tag orientation, which allows for stable mounting in various applications.
It is designed for use in industrial control panels, automation systems, motor circuits, and HVAC applications.
It features a high-speed fuse action (Type F) for rapid response to electrical faults or surges.
The height of this model is 56.5mm, which is part of its overall dimensions.
The country of origin for this fuse is India.
