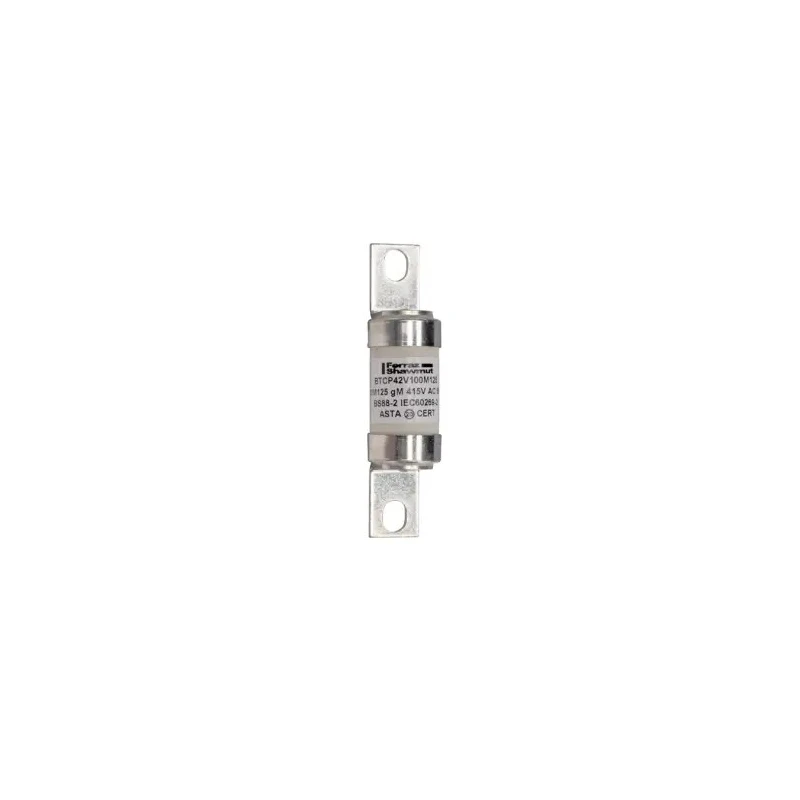

Mersen 100A Bolted Tag Fuse A4C 415V AC, Offset Tag Fuse-links gM Series, 94 mm Fixing Centres A226297 / BTCP42V100M125
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 415V ac |
| Diameter | 26.9mm |
| Brand | Mersen |
| Height | 59.5mm |
| Length | 58.5mm |
| Model | A226297 / BTCP42V100M125 |
| Width | 24.38mm |
| Overall Length | 111mm |
| Current Rating | 100A |
| Series | Offset Tag fuse-links gM 415VAC/240VDC |
| Standards/Approvals | EN 60269-2, CE, IEC 60269, REACH, BS 88, RoHS |
| Fuse Size | A4C |
| Fixing Centres | 94 mm |
| Tag Width | 19.5mm |
| Tag Orientation | Offset |
| Application Category | gM |
Key Features
- Designed for general purpose and motor protection with excellent current limitation.
- Fuse size A4C with a high speed rating for fast fuse operation.
- Bolted fixing with 94 mm centres suitable for fuseholders or direct busbar mounting.
- Offset tag orientation with a tag width of 19.5 mm for compatibility.
- Complies with EN 60269-2, CE, IEC 60269, REACH, BS 88, and RoHS standards.
- Overall length measures 111 mm with 58.5 mm fuse length and 59.5 mm height.
- High rupture capacity is not included in this fuse model.
- Country of origin is India, ensuring local manufacturing quality.
Product Description
Mersen A226297 / BTCP42V100M125 Bolted Tag Fuse A4C 100A 415V AC is part of the offset tag fuse-links gM series designed for industrial and commercial electrical protection applications. This fuse provides effective general purpose gG or motor gM protection, ensuring excellent current limitation and safety across a wide variety of overload conditions.
The fuse features a bolted fixing design with 94 mm fixing centres, allowing secure installation on fuseholders or direct busbar mounting. The fuse body has dimensions of 111 mm overall length, 58.5 mm fuse length, 59.5 mm height, 26.9 mm diameter, and 24.38 mm width, with a tag width of 19.5 mm and offset tag orientation for ease of fitting.
Rated for 100 amperes current and 415V AC voltage, this fuse complies with rigorous industry standards including EN 60269-2, CE, IEC 60269, REACH, BS 88, and RoHS, guaranteeing quality and performance. It provides fast-acting (high speed 'f' fuse speed) protection without high rupture capacity.
This bolted tag fuse is suitable for use in electrical panels and switchgear systems in industrial, manufacturing, HVAC, and commercial electrical setups requiring reliable circuit protection to prevent overload damage and ensure operational safety.
General purpose and motor protection fuse with reliable current limitation. Offset tag design with 19.5 mm tag width for compatibility with standard holder fittings. Compliance with major international standards ensuring safety and performance.
Compact size with precise dimensions for easy integration into electrical systems. Manufactured in India, supporting local quality standards. Explore the full range of Tag Fuses at EnvMart for matching fuse holders and related electrical protection devices to complete your system configuration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fuse has a current rating of 100 amperes.
It is rated for 415V AC voltage.
The overall length is 111 mm, with a fuse length of 58.5 mm, height of 59.5 mm, diameter of 26.9 mm, and width of 24.38 mm.
The tag width is 19.5 mm, and it features an offset tag orientation for compatibility with standard fittings.
It complies with EN 60269-2, CE, IEC 60269, REACH, BS 88, and RoHS standards.
This model is designed for general purpose and motor protection in industrial and commercial electrical systems.
The fuse size is classified as A4C.
It provides effective general purpose gG or motor gM protection, ensuring excellent current limitation.
The bolted tag fuse is manufactured in India, ensuring adherence to local quality standards.
No, this fuse model does not include high rupture capacity.
This fuse belongs to the offset tag fuse-links gM series.
