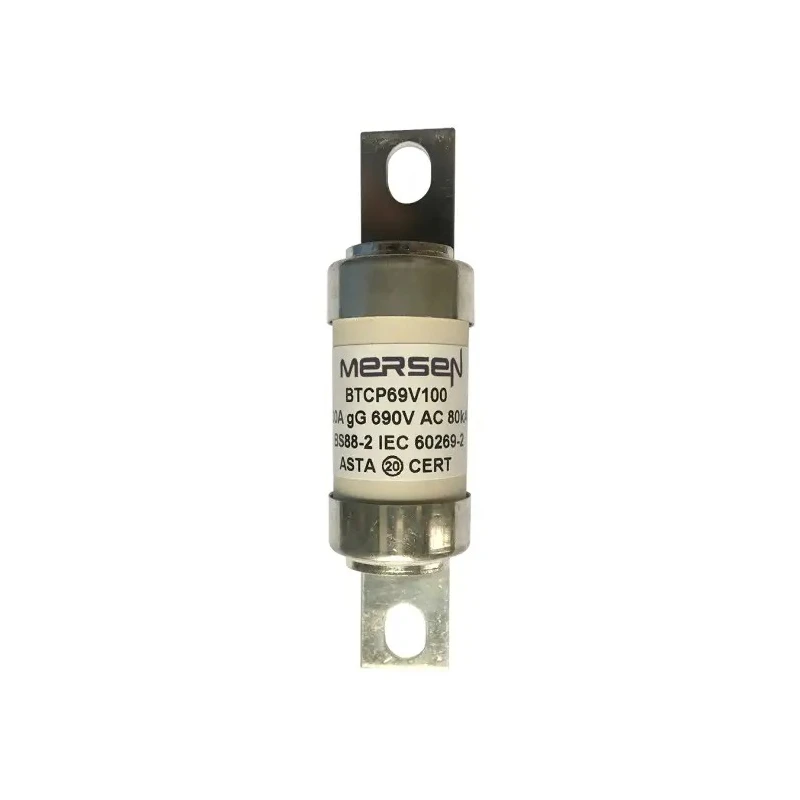

Mersen 100A Bolted Tag Fuse A4 690V AC Offset Tag fuse-links gG 690VAC/460VDC T1006612 / BTCP69V100

Free Delivery in India | Lowest Global Shipping Charges

Mersen 100A Bolted Tag Fuse A4 690V AC Offset Tag fuse-links gG 690VAC/460VDC T1006612 / BTCP69V100

Name: Mersen 100A Bolted Tag Fuse A4 690V AC Offset Tag fuse-links gG 690VAC/460VDC T1006612 / BTCP69V100
Brand: Mersen
SKU: 153603



Category Tag Fuse Brand Mersen Condition New

Specifications

Country of Origin	India
Voltage	690V ac
Diameter	26.9mm
Brand	Mersen
Height	59.5mm
Length	59.5mm
Model	T1006612 / BTCP69V100
Width	28.45mm
Overall Length	111mm
Current Rating	100A
Series	Offset Tag fuse-links gG 690VAC/460VDC
Standards/Approvals	EN 60269-2, REACH, RoHS, CE
Fuse Size	A4
Fixing Centres	94 mm
Tag Width	19.5mm
Tag Orientation	Offset

Key Features

This bolted tag fuse is designed for general purpose protection and motor protection.
The fuse size is A4 with an offset tag orientation ensuring secure installation.
Complies with EN 60269-2, REACH, RoHS, and CE standards for safety and environmental compliance.
Fixing centres measure 94 mm with a tag width of 19.5 mm for compatibility with standard fuse holders.
Overall length is 111 mm with precise electrical performance for 690V AC applications.
High rupture capacity is not available; suitable for applications requiring fast fuse performance (F type).
Constructed in India, ensuring quality manufacturing standards.

Product Description

Mersen T1006612 / BTCP69V100 is a 100A bolted tag fuse with an A4 fuse size designed for 690V AC applications. This fuse is part of the Offset Tag fuse-links gG series, offering robust electrical protection for general purposes and motor circuits.

Manufactured to comply with the EN 60269-2 standard along with REACH, RoHS, and CE environmental and safety approvals, this fuse ensures reliable current limitation and circuit safeguarding.

The fuse has fixing centres of 94 mm and a tag width of 19.5 mm, enabling secure attachment to fuse holders or direct bolting onto busbars. Its offset tag orientation promotes versatility in installation.

Key physical dimensions include an overall length of 111 mm, length and height of 59.5 mm, diameter of 26.9 mm, and width of 28.45 mm. It is intended for use in electrical distribution, industrial control panels, construction, manufacturing, and motor protection within commercial and industrial sectors.

This fuse type operates with a fast fuse speed (F) but does not have a high rupture capacity rating. It is engineered to prevent the exchange by higher-rated fuses, enhancing safety by limiting the electrical current under overload conditions.

This bolted Tag Fuse is designed for general purpose protection and motor protection. The fuse size is A4 with an offset tag orientation ensuring secure installation. Complies with EN 60269-2, REACH, RoHS, and CE standards for safety and environmental compliance.

Fixing centres measure 94 mm with a tag width of 19.5 mm for compatibility with standard fuse holders. Overall length is 111 mm with precise electrical performance for 690V AC applications. High rupture capacity is not available; suitable for applications requiring fast fuse performance (F type).

Constructed in India, ensuring quality manufacturing standards. For additional industrial, electrical, and HVAC equipment protection solutions, explore related products within the EnvMart catalog.
