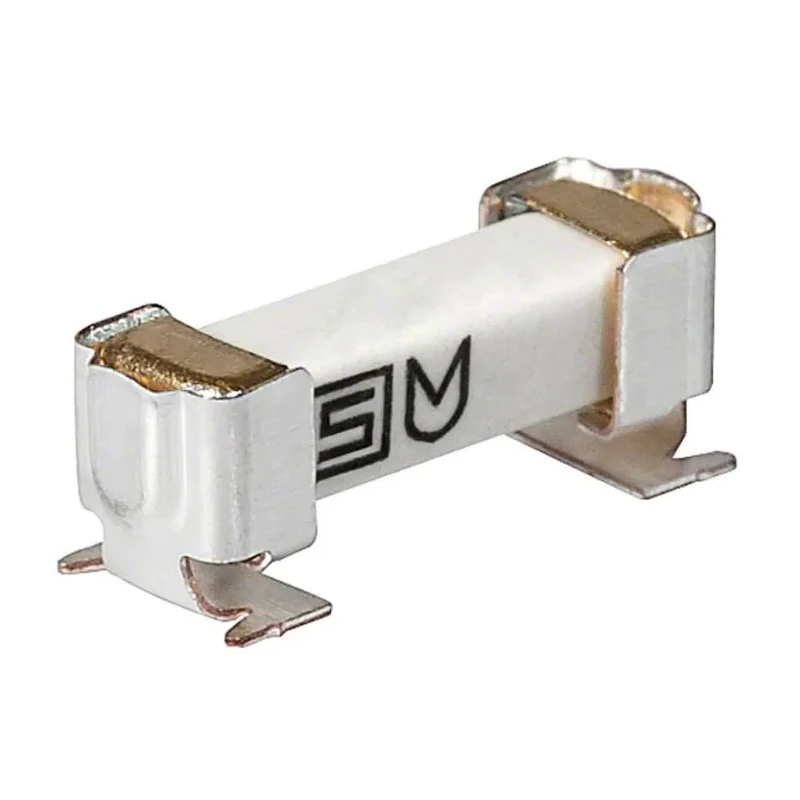

Schurter Non-Resettable Fuse 630mA, 250 V AC, 125 V DC Ceramic Body Fast Acting UMK 250 Series 3404.2464.22

Free Delivery in India | Lowest Global Shipping Charges

Schurter Non-Resettable Fuse 630mA, 250 V AC, 125 V DC Ceramic Body Fast Acting UMK 250 Series 3404.2464.22

Name: Schurter Non-Resettable Fuse 630mA, 250 V AC, 125 V DC Ceramic Body Fast Acting UMK 250 Series 3404.2464.22
Brand: Schurter
SKU: 135239
Price: 1.34 USD
Availability: InStock



Category Non Resettable Fuses Brand Schurter Condition New

Specifications

Country of Origin	Switzerland
Voltage	250, 125V ac
Brand	Schurter
Body Material	Ceramic
Height	4mm
Depth	10.1mm
Width	4.2mm
Current Rating	630mA
Series	UMK 250
Maximum Operating Temperature	-40°C
Package Type	Reel
Minimum Operating Temperature	85°C
Breaking Capacity	200A
Terminal Material	Copper
Standards/Approvals	CSA, REACH, UL 248-14, RoHS, CE
Fuse Characteristics	Fast Acting

Key Features

Features a ceramic body providing excellent durability and heat resistance.
Fast acting fuse characteristic ideal for protecting sensitive electronic components.
Compact dimensions with a width of 4.2 mm, height of 4 mm, and depth of 10.1 mm.
Designed for surface mount technology and supplied on a reel for efficient automated assembly.
High breaking capacity up to 200 A at 250 VAC ensures robust circuit protection.
Operates reliably within a temperature range from -40°C to +85°C.
Copper terminal material ensures efficient electrical conductivity and connection integrity.
Suitable for industrial electronics including alarm systems, audio/visual equipment, computer boards, medical apparatus, and power supplies.

Product Description

Schurter 3404.2464.22 is a non-resettable fuse belonging to the UMK 250 series, designed specifically for high breaking capacity and quick-acting protection in electronic circuits.

This fuse has a current rating of 630mA and is rated for voltages of 250 V AC and 125 V DC, making it suitable for various low voltage industrial and electronic applications. Its ceramic body material provides robustness and reliability under operational stress.

The compact fuse measures 4.2 mm in width, 4 mm in height, and 10.1 mm in depth, making it ideal for surface mount technology circuits and enabling space-saving PCB designs. The fuse characteristic is fast acting, which protects sensitive components by quickly interrupting fault currents.

With a high breaking capacity of 200 A at 250 VAC, the Schurter fuse offers reliable circuit interruption during overcurrent conditions. Copper terminals provide excellent electrical conductivity and durable connections.

The UMK 250 series fuses serve a broad range of industrial electronics applications such as alarm systems, audio/visual equipment, computer boards, portable telephones, medical apparatus, and power supplies. Surface mount fuses like this improve production efficiency by being supplied ready on reels for automated insertion into machinery.

Features a ceramic body with fast acting fuse characteristics. Current rating: 630mA suitable for sensitive electronics protection. Voltage rating of 250 V AC and 125 V DC for broad application coverage. Compact surface mount design saves PCB space and simplifies manufacturing.

High breaking capacity of 200 A ensures circuit safety during faults. Wide operating temperature range from -40°C to 85°C supports varied environments. Constructed with copper terminals for optimal electrical performance.

Complies with standards including CSA, REACH, UL 248-14, RoHS, and CE, ensuring regulatory conformance.

This product is made in Switzerland and is provided new for high-quality industrial use. It is highly recommended for applications requiring compact, reliable, and fast acting circuit protection components.
