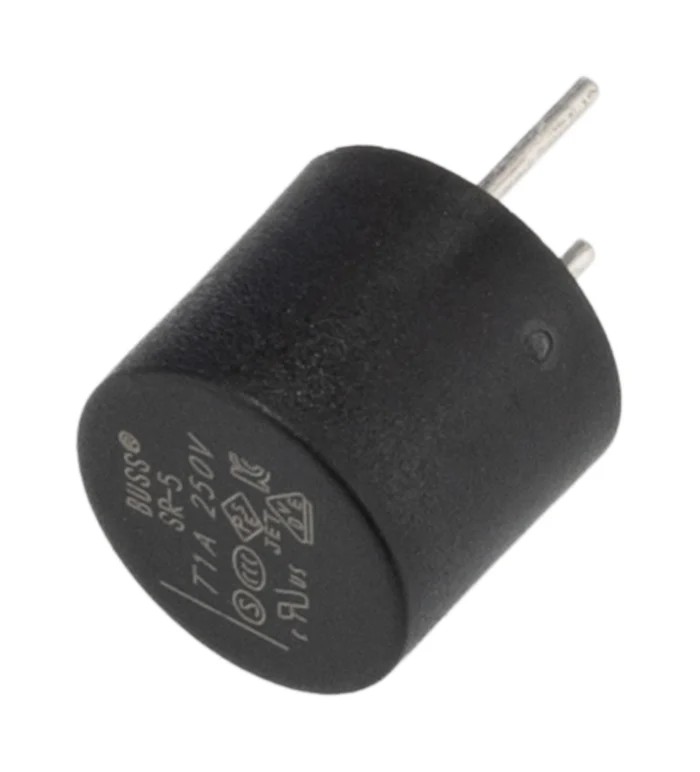

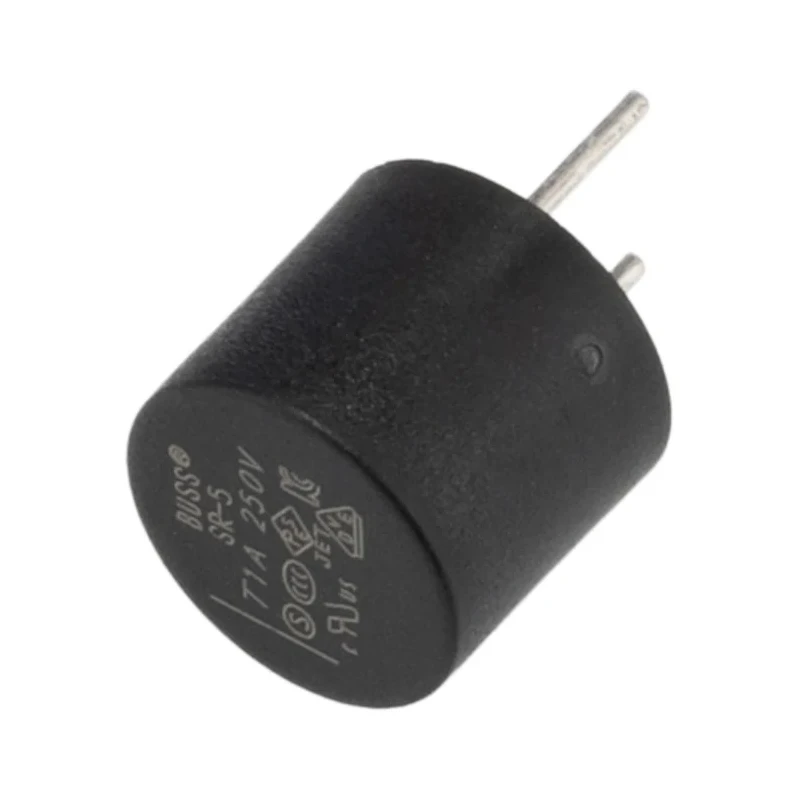

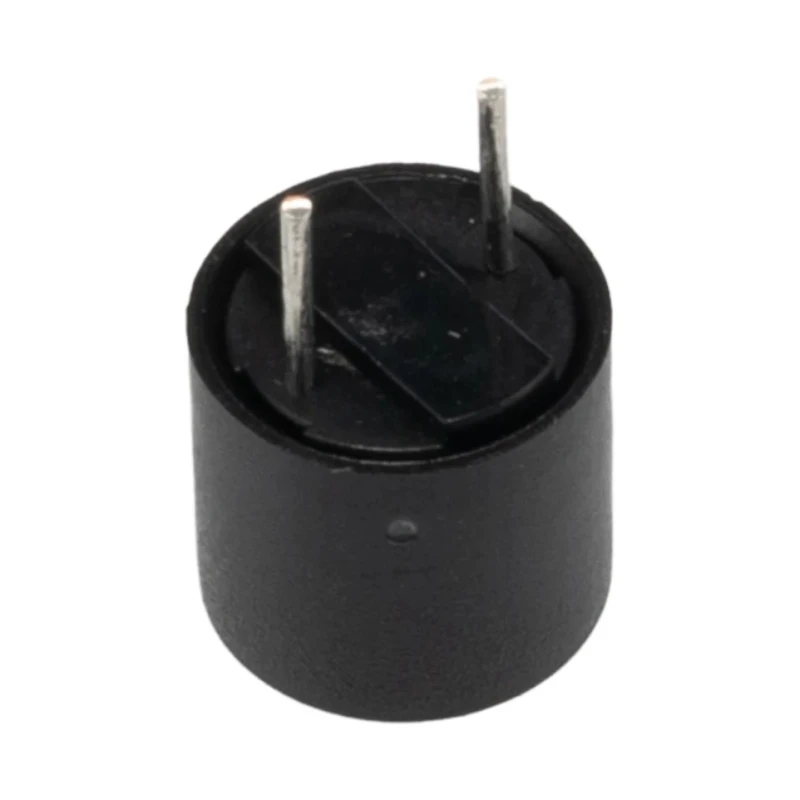

Eaton Radial Lead Time Delay Fuse 1A Current Rating 250V AC Voltage SR-5-1A-BK
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Diameter | 8.5mm |
| Brand | Eaton |
| Height | 7.6mm |
| Length | 7.37mm |
| Model | SR-5-1A-BK |
| Width | 8.5mm |
| Current Rating | 1A |
| Series | SR5 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Lead Length | 4.3mm |
| Breaking Capacity | 35A |
| Lead Diameter | 1mm |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
Key Features
- Provides 1A controlled protection suitable for low-current applications.
- Features time-delay characteristic to allow brief surge tolerance.
- Rated at 250V AC for standard mains and control voltages.
- Breaking capacity of 35A limits damage during electrical faults.
- Operates reliably from -40°C up to +125°C ambient temperatures.
- Radial leads with 1mm diameter and 4.3mm length for secure PCB through-hole mounting.
- Suitable for use in power supplies, automation control panels, small motors, and retrofit industrial PCBs.
Product Description
Eaton SR-5-1A-BK Radial Lead Time Delay Fuse provides precise overcurrent protection with a 1 ampere rating and 250 volts AC voltage capacity. This fuse is engineered to protect electronic and electrical systems from current surges while tolerating short inrush currents without nuisance trips, thanks to its time-delay characteristic.
The compact fuse features radial lead orientation with 1mm diameter leads of 4.3mm length, designed for insertion and soldering onto printed circuit boards. Its body measures 7.37mm in length, 8.5mm in width, and stands 7.6mm high, enabling efficient layout planning for compact equipment.
Engineered for use in diverse industrial and commercial environments, the Eaton SR5 series fuse protects power supplies with substantial inrush currents, automation equipment control panels, small motors, and various consumer electronics modules. It supports retrofitting older industrial PCBs for enhanced safety and reliability.
This fuse complies with IEC 60127-3 and IEC 60068-2-20 standards and meets quality recognitions including RoHS, VDE, and PSE. The robust design allows operation across a wide temperature range from -40°C to +125°C and provides a breaking capacity of 35 amperes to minimize damage during fault conditions.
Provides 1A controlled protection suitable for low-current applications. Features time-delay characteristic to allow brief surge tolerance. Rated at 250V AC for standard mains and control voltages. Breaking capacity of 35A limits damage during electrical faults.
Operates reliably from -40°C up to +125°C ambient temperatures. Radial leads with 1mm diameter and 4.3mm length for secure PCB through-hole mounting. Compact body dimensions: 7.37mm length, 8.5mm width, and 7.6mm height.
Suitable for use in power supplies, automation control panels, small motors, and retrofit industrial PCBs.
This Eaton radial lead fuse is ideal for industrial manufacturing, laboratory equipment, power electronics, HVAC systems, and consumer electronics providing dependable slow-blow protection in critical circuits.
Explore additional Eaton electronic components and fuses with EnvMart for comprehensive electrical protection solutions.
Explore more products in our Non Resettable Fuses category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton SR-5-1A-BK fuse has a current rating of 1 ampere.
This fuse is rated for 250 volts AC, suitable for standard mains and control voltages.
The breaking capacity of this fuse is 35 amperes, which helps limit damage during electrical faults.
The Eaton SR-5-1A-BK fuse measures 7.37mm in length, 8.5mm in width, and 7.6mm in height.
This model operates reliably in ambient temperatures from -40°C to +125°C.
The fuse features radial lead orientation, with leads that have a diameter of 1mm and a length of 4.3mm.
It is suitable for use in power supplies, automation control panels, small motors, and retrofit industrial PCBs.
This fuse has a time-delay characteristic, allowing it to tolerate brief surge currents without nuisance trips.
The Eaton SR-5-1A-BK fuse complies with IEC 60127-3 and IEC 60068-2-20 standards.
The country of origin for this fuse is India.
The lead diameter of the Eaton SR-5-1A-BK fuse is 1mm.
This fuse belongs to the SR5 series.
