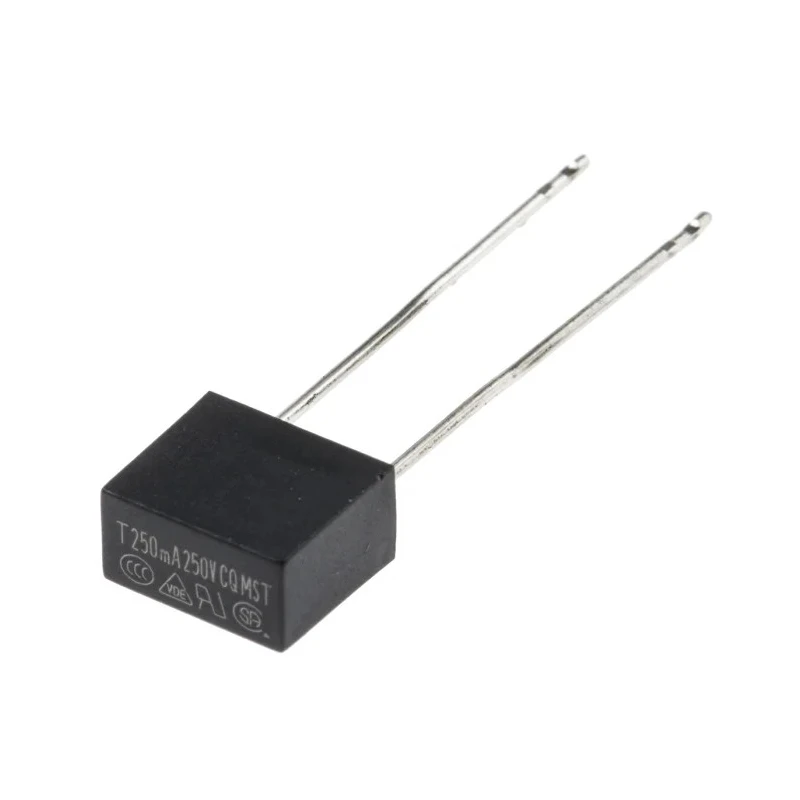

RS PRO Non-Resettable Fuse Radial 250mA 250V AC Time Delay Thermoplastic Body 767-5027

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Non-Resettable Fuse Radial 250mA 250V AC Time Delay Thermoplastic Body 767-5027

Name: RS PRO Non-Resettable Fuse Radial 250mA 250V AC Time Delay Thermoplastic Body 767-5027
Brand: RS PRO
SKU: 366622
Price: 0.48 USD
Availability: InStock



Category Non Resettable Fuses Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	250V ac
Diameter	0.62mm
Brand	RS PRO
Body Material	Thermoplastic
Height	7.7mm
Length	8.35mm
Model	767-5027
Width	4.3mm
Current Rating	250mA
Series	RS PRO
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Lead Length	22mm
Breaking Capacity	35A
Standards/Approvals	CSA, RoHS
Fuse Characteristics	Time Delay
Lead Orientation	Radial

Key Features

Rated for a current of 250mA and voltage of 250V AC.
Constructed with a thermoplastic body ensuring durability and safety.
Time delay fuse characteristic suitable for slow-blow applications.
Radial lead orientation with lead length of 22mm and diameter of 0.62mm.
Operating temperature range from -55°C to 125°C for versatile environmental applications.
Breaking capacity of 35A for protection against overcurrents.
Complies with CSA and RoHS standards ensuring quality and compliance.
Designed for use in industrial, electrical, and automation systems.

Product Description

RS PRO 767-5027 Non-Resettable Fuse Radial 250mA 250V AC is a high-quality, reliable fuse designed to protect circuits in industrial, electrical, and automation applications. The fuse features a time delay (slow blow) characteristic, ideal for applications requiring temporary current surges without nuisance blowing.

Constructed with a robust thermoplastic polyamide body and tin-plated copper round pins, this fuse ensures excellent electrical performance and long-term durability. The radial lead orientation with a 22mm lead length provides easy installation in PCB setups.

Measuring 8.35mm in length, 4.3mm in width, and 7.7mm in height, the compact size facilitates use in space-constrained environments. This fuse operates effectively in a temperature range from -55°C to 125°C, ensuring reliable protection in harsh conditions.

Tested under rigorous conditions including MIL-STD vibration, salt spray, insulation resistance, solder heat resistance, and thermal shock, the fuse meets stringent industrial standards. It holds certifications for CSA and RoHS compliance, confirming its quality and adherence to safety regulations.

This non-resettable fuse offers a breaking capacity of 35A, protecting sensitive electronics and industrial equipment from damage due to overcurrent faults. Its radial lead design is compatible with numerous circuit board applications across electrical and automation industries.

Rated current of 250mA at 250V AC voltage for consistent circuit protection. Thermoplastic Polyamide body provides robust insulation and durability. Time delay (slow blow) characteristic suitable for inrush current applications.

Leads are tin-plated copper with 0.62mm diameter and 22mm length for reliable connectivity. Compact fuse dimensions suit various PCB and electrical fitting designs. Wide operating temperature range for versatility in environmental conditions.

Breaking capacity of 35A to interrupt fault currents safely. Compliant with CSA and RoHS standards for electrical safety and environmental compliance. Manufactured in Taiwan, Province Of China to high-quality standards.

This RS PRO fuse is ideal for use in industrial controls, electrical automation, power supplies, and general circuit protection applications. Explore related components in the Electronics & Electricals category at EnvMart for comprehensive solutions.
