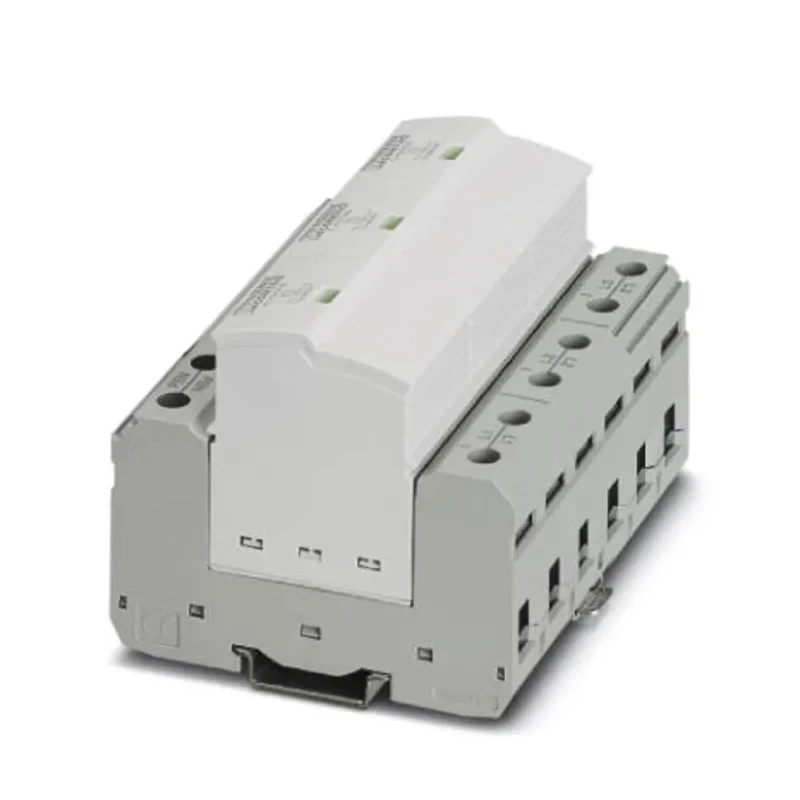

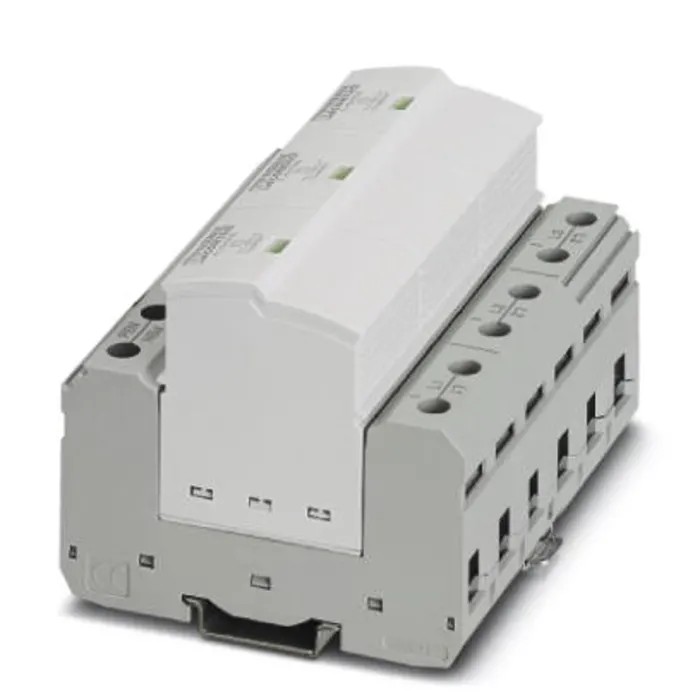

Phoenix Contact 3 Phase Surge Protector 2.5 kV Voltage Protection Rating, 25 kA Impulse Discharge, DIN Rail Mount 2905988

Phoenix Contact 2905988 is a 3 Phase Surge Protector with a 2.5 kV voltage protection rating, designed for DIN Rail mounting installations. It effectively safeguards electrical and electronic equipment by diverting dangerous lightning surges and transient overvoltages in industrial and commercial power systems.

The device supports three-phase power systems and features a high impulse discharge current capacity of 25 kA, ensuring robust surge protection. Its spark gap technology prevents line follow current, eliminating leakage currents, making it suitable for installation in pre-meter areas. The surge protector maintains a high continuous voltage rating of 350 V AC, suitable for 230/400 V AC networks with voltage fluctuations.

This unit includes a pluggable design with an optical and mechanical status indicator that allows clear operational monitoring. Additionally, it incorporates a floating remote indication contact for remote status signaling, increasing maintenance efficiency.

Engineered to operate reliably in harsh environments, it withstands temperatures from -40°C to 80°C and holds an IP20 ingress protection rating. The protector complies with UL standards to ensure industrial safety and performance. Its compact dimensions (Length: 95.2 mm, Width: 106.8 mm, Depth: 74.5 mm) facilitate space-efficient installation on DIN Rails.

Ideal for industrial, telecommunications, datacenter, wind power, machine-building, and building installation protection, this surge protector is part of Phoenix Contact’s comprehensive SEC Lightning Arrester range. These devices provide reliable protection to critical infrastructure from lightning-induced voltage spikes and surges.

Supports three-phase electrical power systems for comprehensive surge protection. High impulse discharge current of 25 kA withstands powerful voltage surges. Pluggable design allows easy installation and maintenance on DIN Rails.

Equipped with optical and mechanical status indicators for clear diagnostics. Floating remote indication contact provides remote monitoring capability. Operational temperature range from -40°C to 80°C ensures durability in harsh conditions.

Complies with UL safety and performance standards. Compact dimensions for convenient DIN Rail mounting.

This Phoenix Contact surge protector enhances the safety of electrical systems in industrial, manufacturing, telecom, and commercial applications. It offers effective defense against lightning and transient surges, reducing downtime and protecting sensitive equipment. Customers looking for reliable surge protection will find this model well-suited for integration into control cabinets and electrical distribution setups. Explore more Phoenix Contact products for complete line solutions for control, switching, and automation in industrial environments.
