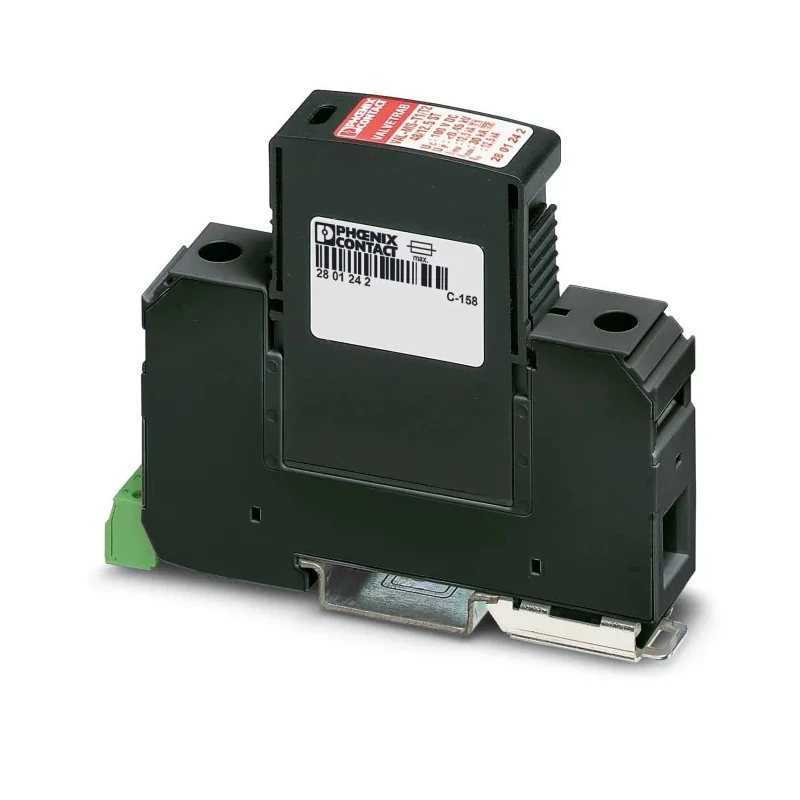

Phoenix Contact Surge Protection Device 30 kA 1-Phase Power Supply VARISTOR Plug-In Lightning Arrester DIN Rail Mount 2801240
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Length | 17.5mm |
| Model | 2801240 |
| Depth | 77.5mm |
| Mount Type | DIN Rail |
| Series | VAL-MS-T1/T2 48/12.5/1+0-FM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IEC 61643-11, EN 61643-11 |
| Maximum Surge Current | 30kA |
Key Features
- Designed for 1-phase power supply networks with common N and PE conductors.
- Maximum surge current rating of 30 kiloamperes for reliable protection.
- Equipped with floating remote indication contact for status monitoring.
- Optical and mechanical status indication via plug status indicators.
- Thermal disconnect device integrated for each individual plug for safety.
- Pluggable design allowing easy replacement and maintenance.
- Mechanical coding of slots to prevent incorrect installation.
- Robust operation temperature range from -40°C to 80°C.
Product Description
Phoenix Contact 2801240 Surge Protection Device 30 kA is a varistor-based plug-in lightning and surge arrester designed for single-phase power supply networks with common neutral and protective earth (2-conductor system: L1, PEN). The device mounts onto standard DIN rails and provides dependable surge protection with a maximum surge current capacity of 30 kA.
The device features a floating remote indication contact allowing remote monitoring of the surge protection status. Each individual arrester plug includes optical and mechanical status indicators, enabling onsite visual inspection. A thermal disconnect device for each plug enhances safety by isolating damaged components.
The pluggable design simplifies installation and maintenance, while mechanical coding ensures mistake-free slot placement. Operating temperature range spans from -40°C to 80°C, suitable for various industrial and commercial environments.
Standards compliance includes IEC 61643-11 and EN 61643-11, ensuring high quality and safety standards for Surge Protection Devices. This product is manufactured in Germany and is ideal for industrial, commercial, automation, and electrical distribution systems requiring effective surge protection on DIN rails.
Designed for 1-phase networks with common N and PE conductors providing reliable surge protection. 30 kA maximum surge current rating ensures robust defense against power surges. Floating remote indication contact enables system status monitoring remotely.
Optical and mechanical status indicators for individual arrester plugs. Integrated thermal disconnect device enhances safety by isolating faulty components. Pluggable and mechanically coded for easy maintenance and correct installation.
Wide operating temperature range from -40°C up to 80°C. Compliance with IEC 61643-11 and EN 61643-11 standards. Manufactured in Germany ensuring premium quality. Explore the EnvMart catalog for more Phoenix Contact surge protection solutions and electrical components tailored for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current rating of this device is 30 kiloamperes (30 kA), providing reliable protection against power surges.
This surge protection device is designed for 1-phase power supply networks with common neutral and protective earth conductors.
The device has a length of 17.5 mm and a depth of 77.5 mm, suitable for mounting on DIN rails.
The operating temperature range for this surge protection device spans from -40°C to 80°C, making it suitable for various environments.
Yes, it features optical and mechanical status indicators for each individual arrester plug, allowing for onsite visual inspection.
It includes a thermal disconnect device for each plug, enhancing safety by isolating damaged components.
Yes, it complies with IEC 61643-11 and EN 61643-11 standards, ensuring high quality and safety standards for surge protection devices.
This model is designed for DIN rail mounting, allowing for easy installation in electrical distribution systems.
The device features mechanical coding of slots to prevent incorrect installation during setup.
It is manufactured in Germany, ensuring adherence to quality standards.
The model number of this surge protection device is 2801240, which is part of the VAL-MS-T1/T2 series.
This surge protection device is ideal for industrial, commercial, automation, and electrical distribution systems requiring effective surge protection.
