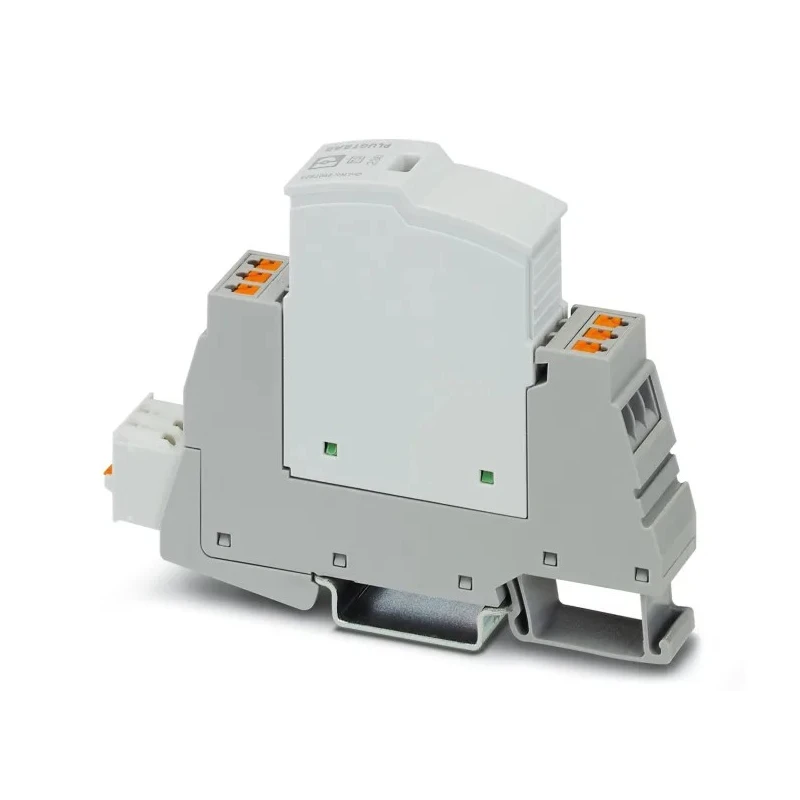

Phoenix Contact Surge Protection Device 26A Maximum Surge Current DIN Rail Mount 2907928

Phoenix Contact 2907928 Surge Protection Device is designed for safeguarding power supply networks from transient voltage spikes. With a maximum surge current capacity of 26A and DIN rail mounting type, it is suitable for use in industrial single-phase energy systems.

The device incorporates push-in connection technology, enabling quick and tool-free installation. An integrated status indicator provides a clear visual indication of operational condition, facilitating maintenance and monitoring.

Constructed with a robust polyamide housing, this device offers excellent resistance to corrosion and abrasive materials, ensuring long service life even in demanding industrial environments. The device efficiently redirects excess voltage to ground, protecting downstream equipment, and reducing costly downtime.

Its rugged design ensures resistance to shock and vibration, and with an IP20 rating, it provides safe protection against contact with hazardous parts and intrusion by solid objects larger than 12mm. The compact size of 101mm height, 17.7mm width, and 74.5mm depth allows high density mounting on DIN rails.

The device complies with multiple stringent standards and approvals including KEMA KEUR, CCA, DNV GL, IECEE CB, EAC, IEC 61643-11, and EN 61643-11, and meets the UL94V-0 flammability requirement, making it self-extinguishing and enhancing operational safety.

Additional features include a detachable protective plug allowing easy replacement without dismantling the entire unit. Its operational temperature range from -40°C to +80°C enables use in harsh environmental conditions.

Supports single-phase industrial energy systems with remote signalling capability. Push-in technology ensures tool-free and rapid installation. Integrated visual status indicator for quick diagnostics. Durable polyamide housing resists corrosion and environmental damage.

Quickly directs excess voltage to ground to protect equipment. Resistant to mechanical shock and vibration in demanding locations. IP20 rating ensures protection against solid foreign objects and touch safety. Compact size optimizes DIN rail space efficiency.

Self-extinguishing housing complies with UL94V-0 flame standards. Detachable protective plug simplifies maintenance and replacement. Wide operating temperature range from -40°C to +80°C supports harsh environments.

This Surge Protection Device is ideal for use in industrial, electrical, automation, and control system applications, providing reliable transient overvoltage protection to enhance system longevity and reduce downtime.
