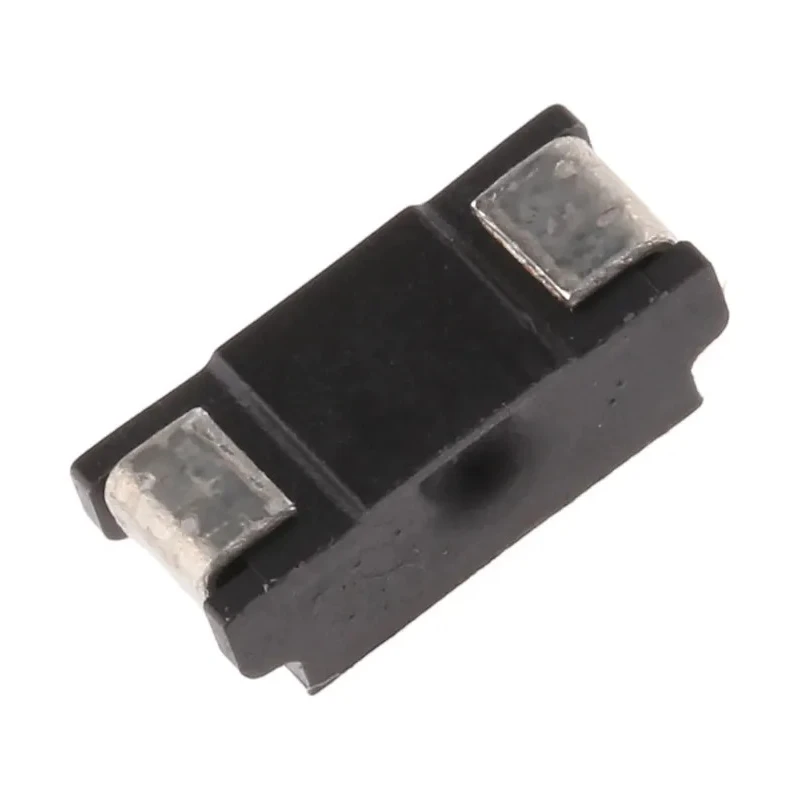

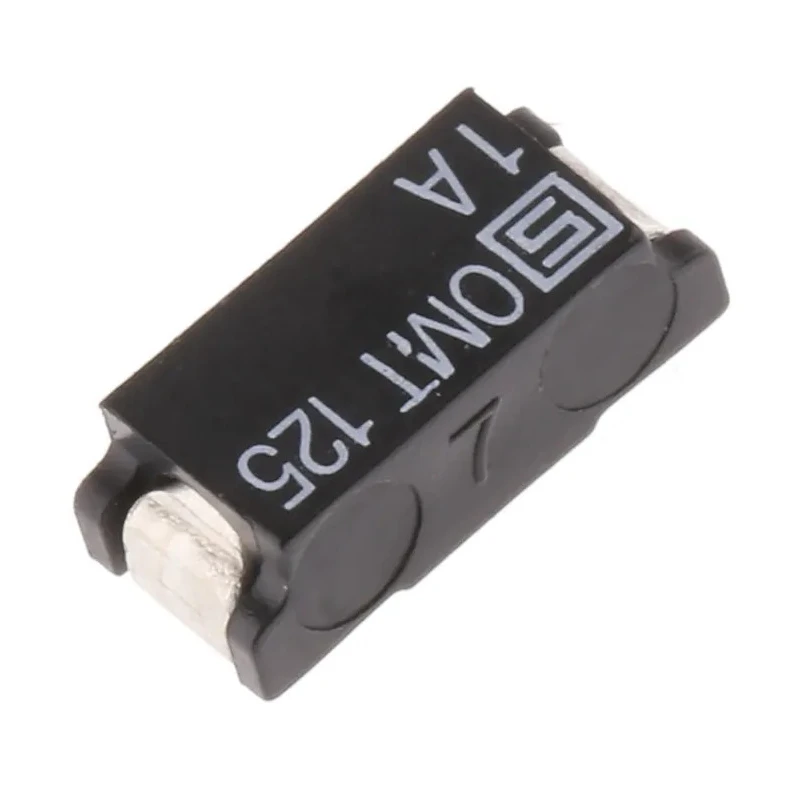

Schurter Non-Resettable Fuse 1A 125V AC 125V DC Time Delay Surface Mount OMT 125 3404.0114.22

Schurter 3404.0114.22 non-resettable fuse is a time-delay miniature fuse designed with a current rating of 1 ampere and capable of operating at 125 volts AC and DC. It belongs to the OMT 125 series and utilizes surface mount technology which saves space and production time for low voltage electronic applications.

The body of the fuse is constructed from thermoplastic material, offering high insulation properties and durability. Its compact dimensions are 3.1 mm in width, 2.6 mm in height, and 7.4 mm in depth making it ideal for compact circuit protection.

These fuses are designed to withstand a breaking capacity of 100 amperes, suited for protecting high-value silicon integrated circuits and sensitive electronic components. The fuse terminals are tin plated copper, ensuring reliable electrical connections and excellent solderability on printed circuit boards.

The operating temperature ranges from a minimum of -40 degrees Celsius to a maximum of 85 degrees Celsius. The fuse features time delay characteristics which help in tolerating short duration current surges without blowing.

Certified to meet CE, CSA, REACH, RoHS standards as well as UL 248-14, it provides trusted safety and environmental compliance. Applications include alarm systems, audio/visual electronics, computer hardware, portable telephones, power supplies, and medical devices, making it indispensable in industrial, commercial, and consumer electronic manufacturing.

Time delay design protects against transient current surges. Surface mount packaging enables automated assembly and saves PCB space. Tin plated copper terminals ensure excellent conductivity and solderability. Thermoplastic body provides strong electrical insulation and durability.

High breaking capacity of 100A suitable for sensitive electronics protection. Wide operating temperature range from -40°C to 85°C for diverse environments. Approved to key international standards ensuring safety and quality.

Ideal for industrial, medical, telecommunications, and consumer electronic applications. Manufactured in Switzerland for superior quality assurance.

This Schurter fuse is a reliable solution for industrial and commercial electrical protection needs. Explore the full range of Non-Resettable Fuses at EnvMart for your specific application requirements.
