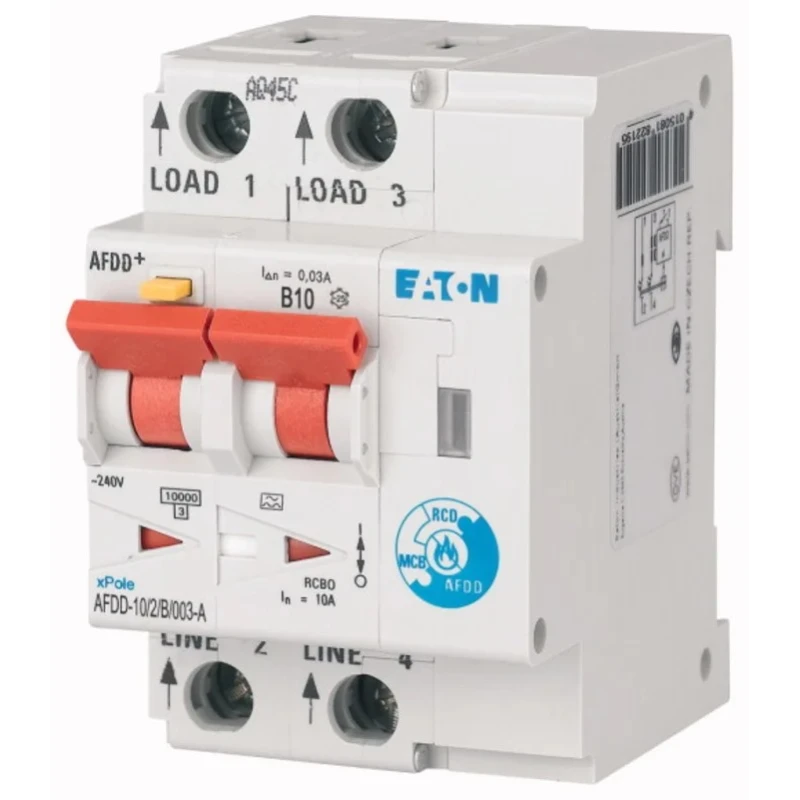

Eaton Residential RCBO 10A Current Rating 2-Pole 30 mA Trip Sensitivity Type B Thermal Magnetic 187168 AFDD-10/2/B/003-A

Eaton 187168 AFDD-10/2/B/003-A Residential RCBO has a 10A current rating with 2 poles and 30 mA trip sensitivity, designed to enhance electrical safety in residential and light commercial electrical installations.

This device serves multiple protective roles: it functions as an Arc Fault Detection Device (AFDD) to interrupt circuits upon detection of hazardous electrical arcs, as a Residual Current Device (RCD) to sense and prevent earth faults, and as a Miniature Circuit Breaker (MCB) to protect against short circuits and overloads.

The AFDD feature reduces the risk of electrical fires by detecting loose or damaged wiring and terminal faults that generate arcs, which produce intense heat. The included LED fault indicator clearly signals the specific cause of a trip, improving troubleshooting.

Operational status is easily understood via green-to-red color-coded switch indicators. A yellow test button allows users to verify the device’s functionality without disassembling the setup.

This unit mounts easily on a DIN rail and secures cables via screw terminals with flexible wiring configurations, accommodating neutral and line connections at the bottom and load wires at the top.

The thermal magnetic tripping mechanism provides instantaneous breaking with a capacity of 10 kA, ensuring quick interruption of faults. The toggle switch reset actuator offers straightforward manual reactivation after trips.

Compliant with RoHS and IEC regulations, this AFDD+ series device is manufactured in the Czech Republic, designed for reliable residential electrical safety performance. Provides arc fault detection to prevent electrical fires caused by arcs or high-power discharges.

Combines functions of an AFDD, RCD for earth fault detection, and an MCB for overload protection. Features LED fault indicator for clear trip cause identification. Has green-to-red switch indicators to show ON or OFF status effectively.

Includes yellow tripping test button for operational testing. Mounts on DIN rail with screw terminal connections for neutral, line, and load wires. Thermal magnetic tripping mechanism with instantaneous break time and 10 kA breaking capacity.

Toggle switch reset actuator ensures ease of operation. Meets RoHS and IEC standards with country of origin Czech Republic.

This Eaton Residential RCBO is suitable for electrical protection in residential, commercial, HVAC, and industrial building electrical distribution systems where arc fault detection and earth leakage sensitivity are critical for safety. Users can rely on its multi-functional protection to enhance system reliability and prevent fire hazards.
