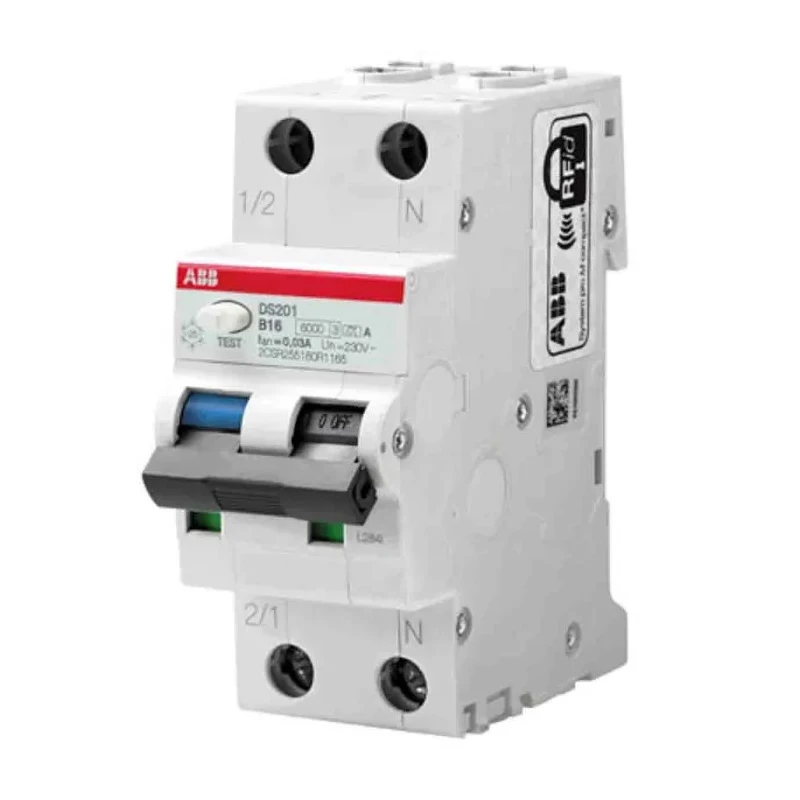

ABB Residual Current Circuit Breaker with Overload Protection 16A 2-Pole 30mA Trip 2CSR275080R1165 DS201 M B16 AC30

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker with Overload Protection 16A 2-Pole 30mA Trip 2CSR275080R1165 DS201 M B16 AC30



Category RCBO Brand ABB Condition New

Specifications

Country of Origin	India
Range	System Pro M Compact
Brand	ABB
Height	85mm
Model	2CSR275080R1165 DS201 M B16 AC30
Depth	69mm
Width	69mm
Mount Type	DIN Rail
Current Rating	16A
Series	DS201
Terminal type	Screw
Breaking Capacity	15kA
Number of Poles	2
Standards/Approvals	RoHS, IEC
Rated AC Voltage	240V ac
Tripping Characteristics	Type B
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Earth Leakage Protection Type	AC

Key Features

Equipped with thermal magnetic tripping mechanism for reliable protection.
Features Type B tripping characteristics for enhanced electrical safety.
Compact design suitable for DIN rail mounting in electrical panels.
Offers 15 kA breaking capacity to handle fault currents effectively.
Manual toggle switch allows for easy resetting after trips.
Measures 69mm width, 69mm depth, and 85mm height for space-efficient installation.
Terminal connections use screw type for secure wiring.
Complies with RoHS and IEC standards ensuring quality and safety.

Product Description

ABB 2CSR275080R1165 DS201 M B16 AC30 Residual Current Circuit Breaker with Overload Protection designed for safeguarding single-phase electrical circuits. It delivers a rated current of 16A, with a 30mA trip sensitivity to quickly detect earth leakage faults, enhancing user safety against electric shock. This 2-pole RCBO incorporates a thermal magnetic tripping mechanism and Type B trip characteristics, making it suitable for use in residential, commercial, and light industrial electrical installations.

Compactly engineered with dimensions 69mm x 69mm x 85mm, it is optimized for DIN rail mounting, easing installation in standard electrical distribution boards. Its breaking capacity of 15kA ensures reliable fault current interruption, preventing damage to electrical equipment. The unit uses screw terminals for secure connections and includes a manual toggle switch for easy resetting after fault clearance.

Compliant with RoHS and IEC standards, this ABB DS201 series RCBO is built to meet high industrial safety and quality requirements. It is especially ideal for installations requiring reliable overload and earth fault protection, including lighting, heating, and power distribution systems with sensitive electronic equipment.

Thermal magnetic tripping mechanism ensures dependable overload and short-circuit protection. Type B tripping characteristic enhances the protection for modern electrical circuits. Compact size supports efficient space management within electrical panels.

High breaking capacity of 15kA sustains safe disconnection under fault conditions. Toggle switch allows for manual resetting, improving operational convenience. DIN rail mounting facilitates straightforward integration in electrical enclosures.

Complies with relevant RoHS and IEC safety and environmental standards. AC type earth leakage protection improves response to earth faults.

This RCBO is widely used across residential, commercial, and light industrial electrical installations for protecting circuits against overloads, earth faults, and short circuits. Its robust design and precise trip settings make it suitable for environments involving sensitive electronics and critical power applications, thus ensuring safety and compliance with electrical regulations.

Explore the ABB DS201 range and other related circuit protection devices on EnvMart for securing reliable industrial and commercial electrical installations.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a breaking capacity of 15kA, which allows it to effectively handle fault currents and ensure reliable interruption during electrical faults.

The rated current for this unit is 16A, making it suitable for protecting circuits with this current rating.

It measures 69mm in width, 69mm in depth, and 85mm in height, allowing for compact installation in electrical panels.

This circuit breaker is equipped with a thermal magnetic tripping mechanism, providing reliable protection against overloads and short circuits.

It has a trip sensitivity of 30mA, which enables quick detection of earth leakage faults to enhance safety.

This model is designed for DIN rail mounting, facilitating straightforward installation in standard electrical distribution boards.

It utilizes screw-type terminal connections, ensuring secure and reliable wiring.

This unit complies with RoHS and IEC standards, ensuring it meets quality and safety requirements for electrical devices.

It features Type B tripping characteristics, which are suitable for protecting modern electrical circuits, particularly those with electronic equipment.
