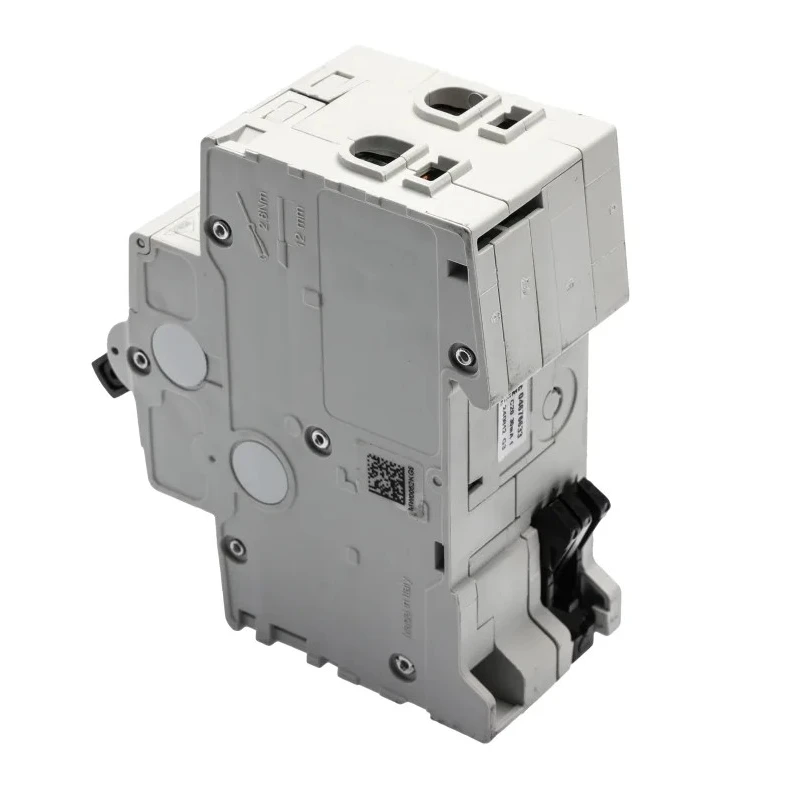

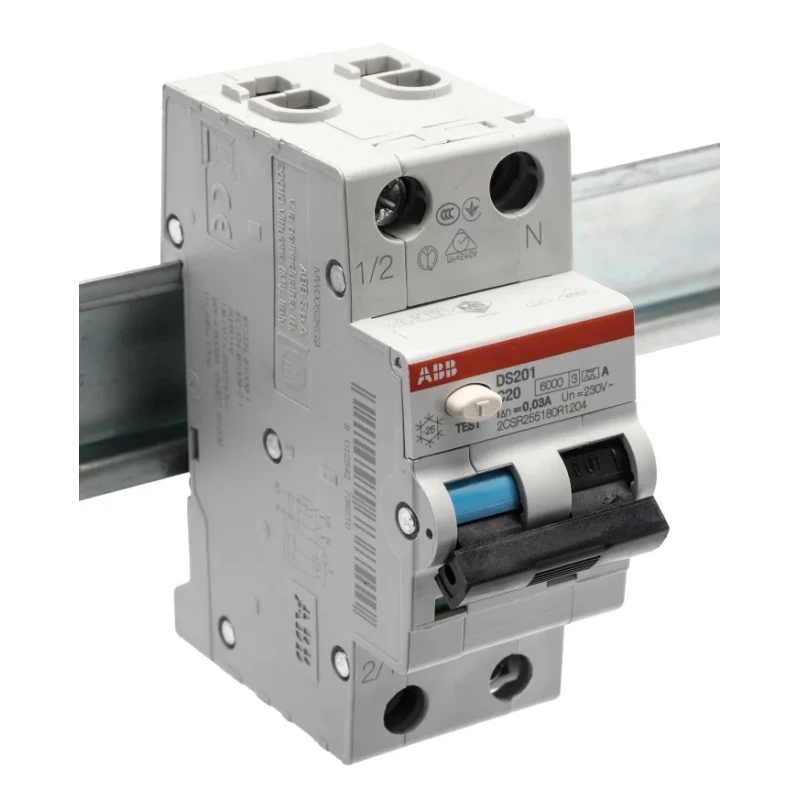

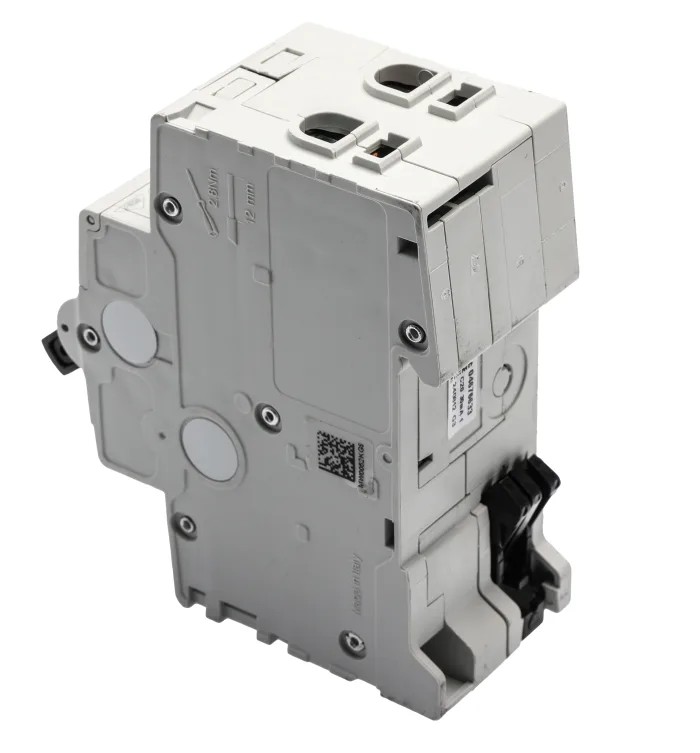

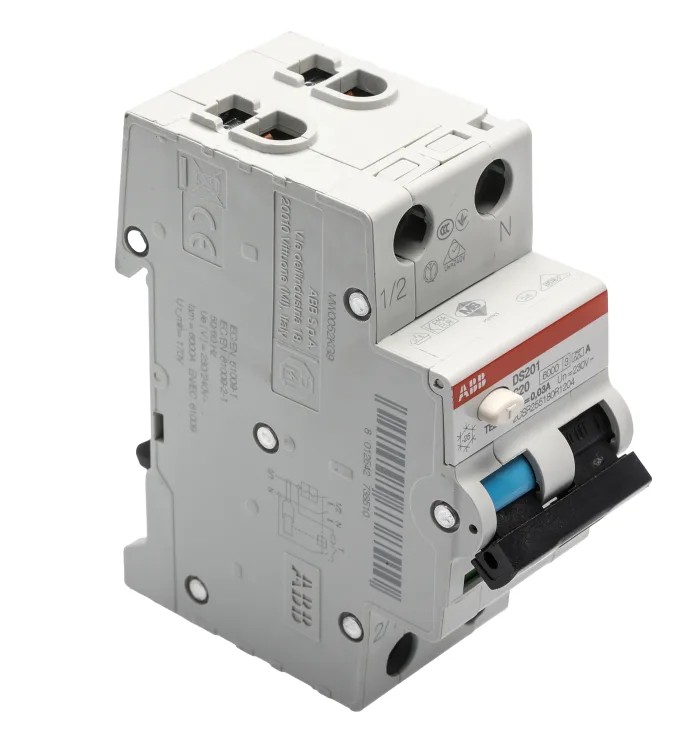

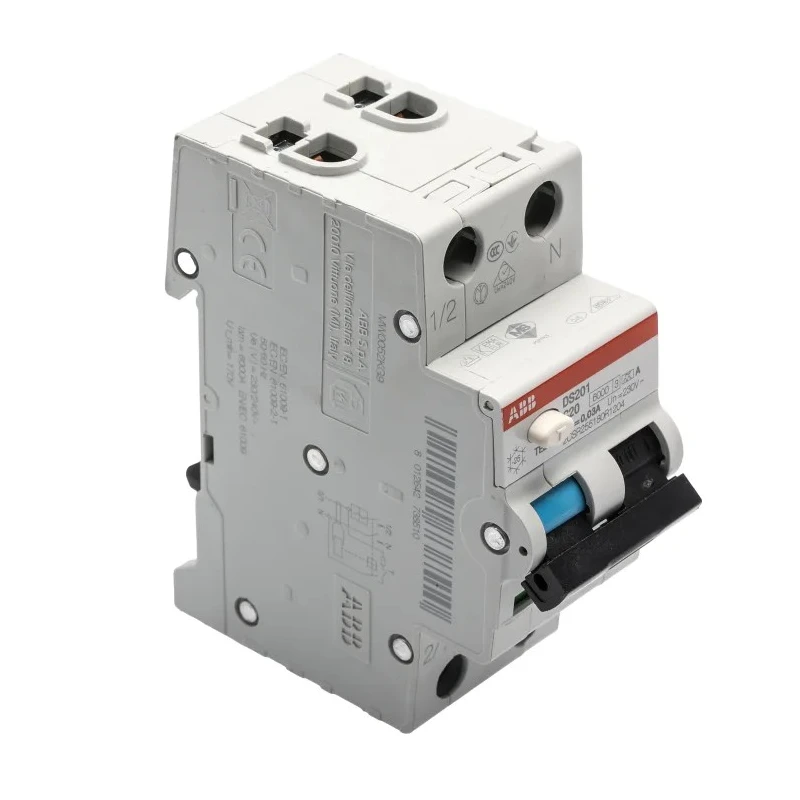

ABB Residual Current Circuit Breaker with Overload Protection 20A 2-Pole 240V AC 30mA Trip Sensitivity 2CSR255180R1204 DS201

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker with Overload Protection 20A 2-Pole 240V AC 30mA Trip Sensitivity 2CSR255180R1204 DS201



Category RCBO Brand ABB Condition New

Specifications

Country of Origin	India
Range	System Pro M Compact
Brand	ABB
Height	85mm
Model	DS201
Depth	69mm
Width	69mm
Mount Type	DIN Rail
Current Rating	20A
Series	DS201
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	2
Standards/Approvals	IEC, RoHS
Rated AC Voltage	240V ac
Tripping Characteristics	Type C
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Earth Leakage Protection Type	Type A

Key Features

This RCBO protects single-phase circuits against overloads and earth faults effectively.
It features a 2-pole configuration suitable for residential and commercial installations.
Type C tripping characteristics make it ideal for inductive loads such as motors and transformers.
The compact device mounts easily on DIN rails with secure screw terminals.
Breaking capacity of 10 kA ensures robust fault interruption performance.
Equipped with a toggle switch for straightforward manual resetting after trip events.
Meets IEC and RoHS standards for safety and environmental compliance.
Operates reliably within 240V AC voltage rating and temperature range from -25°C to +55°C.

Product Description

ABB DS201 Residual Current Circuit Breaker with Overload Protection, model 2CSR255180R1204 DS201 C20 A30, is engineered to deliver dependable safety and performance in electrical distribution systems. Rated for 20A current and 240V AC operation, this device safeguards single-phase circuits from overloads, short circuits, and earth faults through its 30mA trip sensitivity and type C thermal magnetic tripping mechanism.

The 2-pole compact breaker measures 69mm width, 85mm height, and 69mm depth, optimized for DIN rail mounting to facilitate clean and organized installations in electrical panels. Screw-type terminals provide secure wiring connections, enhancing installation reliability and maintenance ease.

Its 10 kA breaking capacity allows the RCBO to interrupt high fault currents effectively, protecting downstream electrical equipment from damage and maintaining circuit integrity. The toggle switch actuator enables easy manual resetting, ensuring quick restoration of power post-fault.

Suitable for residential and commercial use, this breaker is well adapted for circuits with inductive loads like motors and transformers, minimizing nuisance tripping and ensuring consistent protection. The device conforms to international IEC and RoHS standards, verifying its compliance with safety and environmental regulations.

Applications include protecting individual household circuits, commercial electrical installations, and sensitive equipment in electrical panels requiring earth leakage protection. It operates efficiently across a broad temperature range from -25°C to +55°C, making it suitable for various environmental conditions.

This RCBO provides short circuit and earth fault protection for user safety. Features 30 mA trip sensitivity for rapid fault detection. Type C tripping characteristic suits inductive load protection. Easy DIN rail mounting ensures secure and organized installation.

Robust 10 kA breaking capacity for fault current interruption. Toggle switch actuator allows simple manual reset. Meets IEC and RoHS standards ensuring regulatory compliance.
