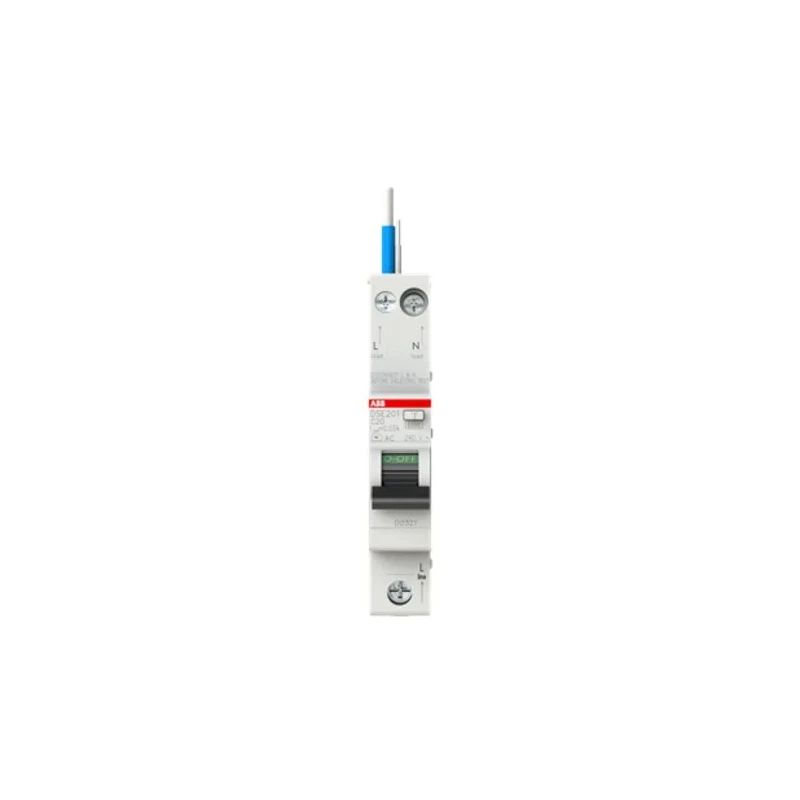

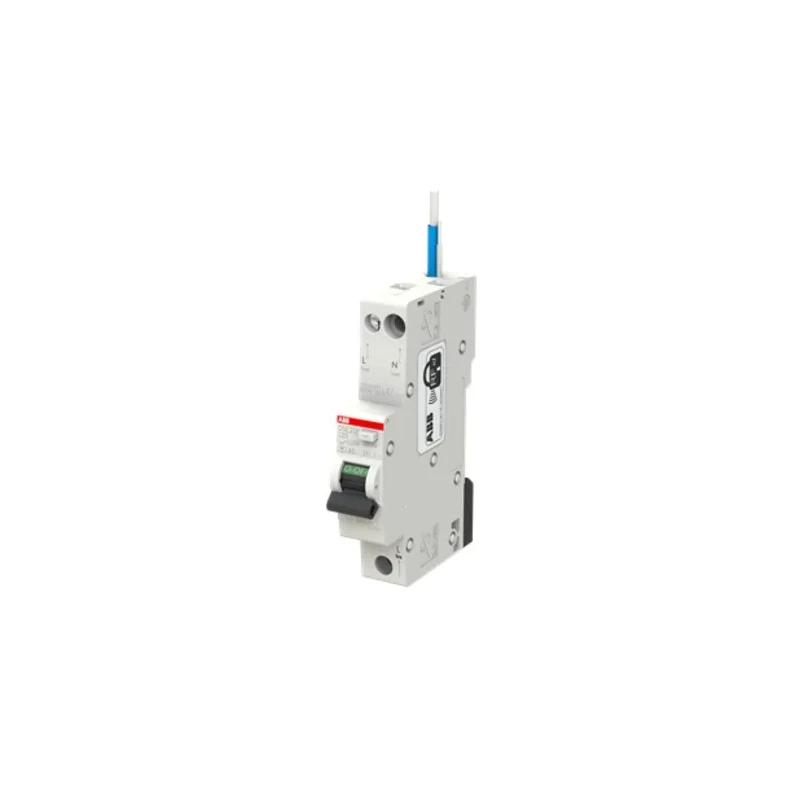

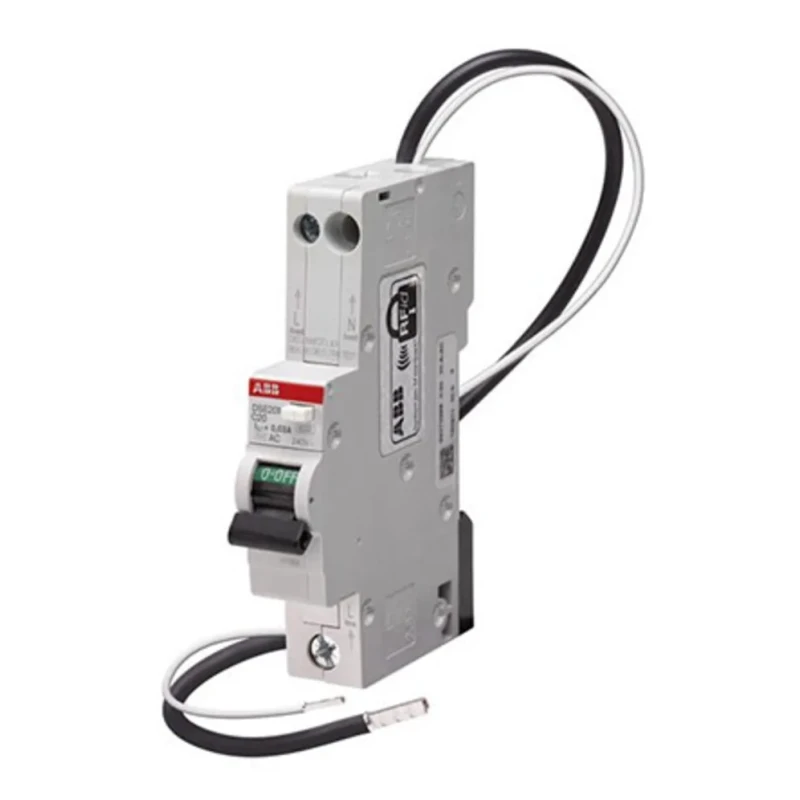

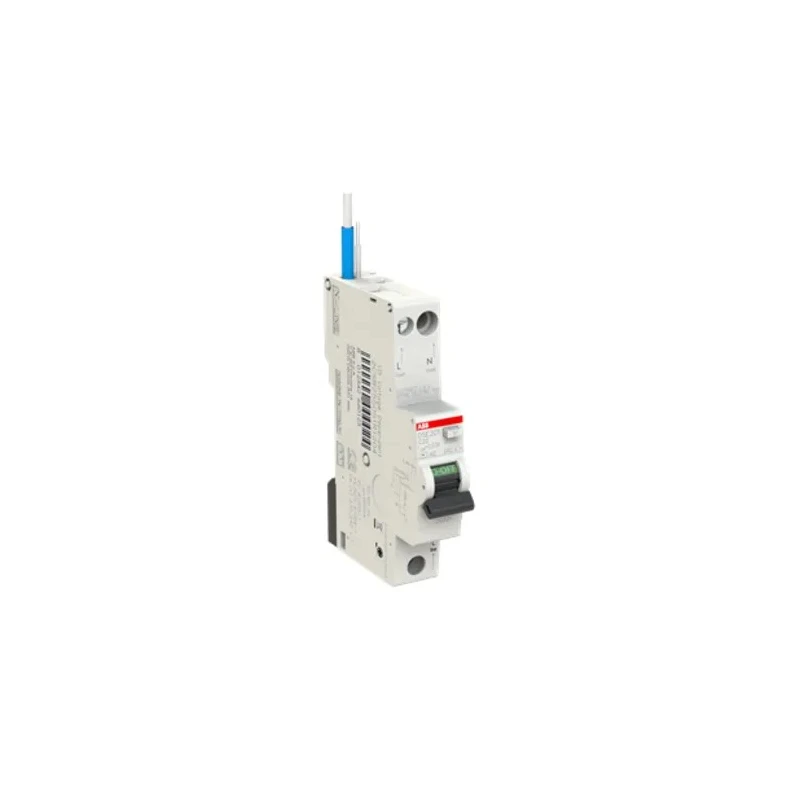

ABB Residual Current Circuit Breaker with Overload Protection 20A 240V AC Type C 2CSR255051R1204 DSE201 C20 AC30 - N Blue
Specifications
| Country of Origin | Italy |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 100mm |
| Model | 2CSR255051R1204 DSE201 C20 AC30 - N Blue |
| Depth | 68.9mm |
| Width | 17.6mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | DSE201 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | CE |
| Rated AC Voltage | 240V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | AC |
Key Features
- Equipped with thermal magnetic tripping and Type C characteristics ensuring swift interruption.
- Compact dimensions of 100mm height, 68.9mm depth, and 17.6mm width allow installation in confined spaces.
- Screw terminals provide secure wiring with IP20 protection against dust and accidental contact.
- Rated for 240V AC operation with a breaking capacity of 6 kA.
- Designed for DIN rail mounting and suitable for healthcare, data centers, residential and electrical systems.
- Robust mechanical lifespan of 20,000 cycles guarantees long-term reliability.
- Operating temperature range from -25°C to +55°C supports harsh environment applications.
- Reset actuator styled as a toggle switch for easy manual reset after tripping.
Product Description
ABB 2CSR255051R1204 DSE201 C20 AC30 - N Blue Residual Current Circuit Breaker (RCBO) offers advanced protection by combining residual current detection with overload and short circuit interruption for enhanced electrical safety in various industrial, residential, and commercial environments.
This RCBO supports a nominal current rating of 20A and operates at a rated voltage of 240V AC. Its tripping mechanism uses a thermal magnetic system with Type C tripping characteristics, ensuring rapid and accurate disconnection under fault conditions.
The compact and streamlined form factor measures 100mm in height, 68.9mm in depth, and 17.6mm in width, ideal for installations where space is at a premium. Installation is facilitated by snap-on mounting to standard 35mm DIN rails and screw-type terminals that offer secure electrical connections with an IP20 protection rating against dust ingress and accidental finger contact.
This device features a trip sensitivity of 30 mA to effectively detect earth leakage currents, enhancing user and equipment safety. The resetting mechanism comprises a user-friendly toggle switch, allowing quick manual restoration after fault clearance.
Designed to endure demanding environments, this RCBO operates reliably in ambient temperatures ranging from -25°C to +55°C. It offers a breaking capacity of 6kA, suitable for a wide range of electrical distribution applications in healthcare facilities, data centers, residential buildings, and diverse electrical systems.
Thermal magnetic tripping for combined overload and short circuit protection. Compact DIN rail mount design with screw terminals for quick installation. 30 mA earth leakage sensitivity for enhanced safety. Robust mechanical lifespan rated at 20,000 cycles.
Operating temperature range supports harsh conditions. CE certified and made in Italy, assuring compliance and quality. Toggle switch reset for user convenience after trips. Breaking capacity of 6 kA suitable for heavy electrical loads.
This RCBO is ideal for industrial, laboratory, commercial, residential, and healthcare electrical safety applications. Its precise and swift tripping mechanisms ensure protection of personnel and equipment from electrical faults and overload conditions.
Explore more high-quality residual current devices and circuit protection equipment on EnvMart for reliable and certified electrical safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current of this model is 20A.
It has a breaking capacity of 6 kA, suitable for handling heavy electrical loads.
This unit measures 100mm in height, 68.9mm in depth, and 17.6mm in width.
It is designed for DIN rail mounting, facilitating easy installation in electrical systems.
The tripping mechanism is thermal magnetic, providing combined overload and short circuit protection.
The trip sensitivity is 30 mA, which is effective for detecting earth leakage currents.
It operates reliably in ambient temperatures ranging from -25°C to +55°C.
It features a toggle switch reset actuator for convenient manual reset after tripping.
This RCBO is CE certified, ensuring compliance with relevant safety standards.
It uses screw terminals, which provide secure wiring connections.
It is suitable for use in healthcare facilities, data centers, residential buildings, and various electrical systems.
This model belongs to the System Pro M Compact series.
