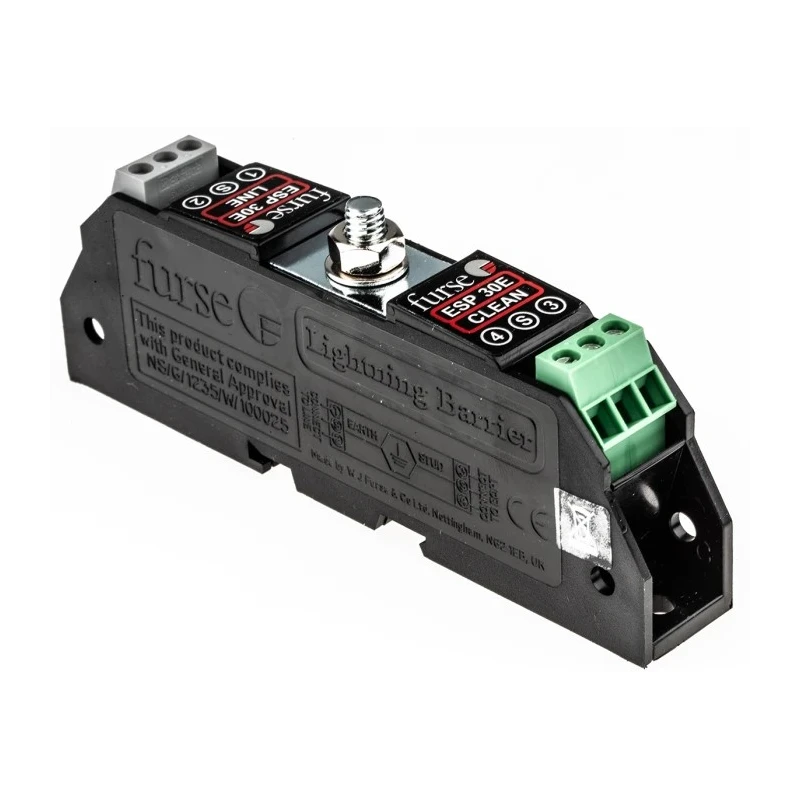

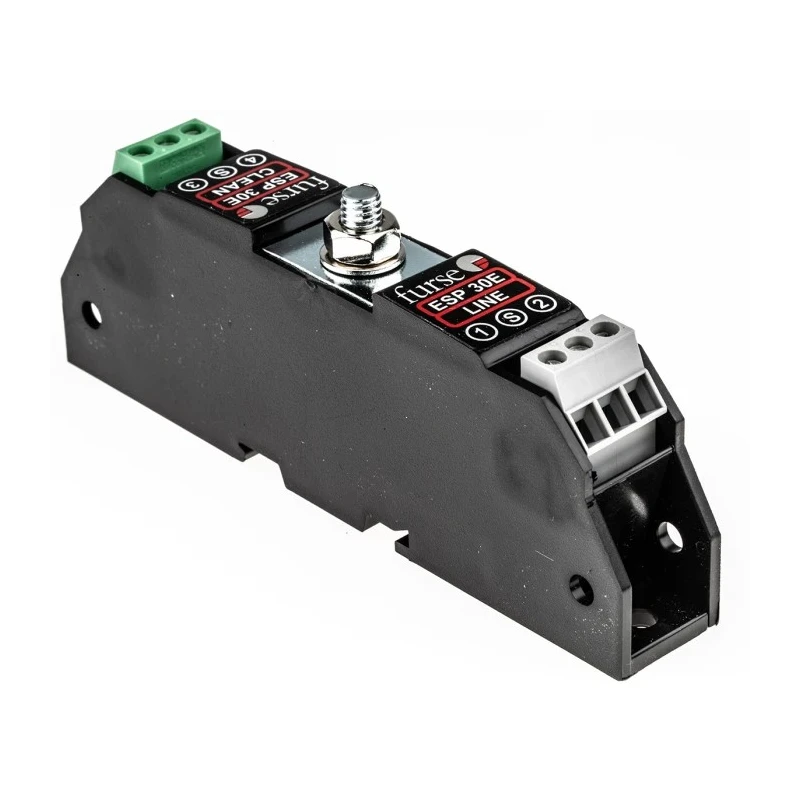

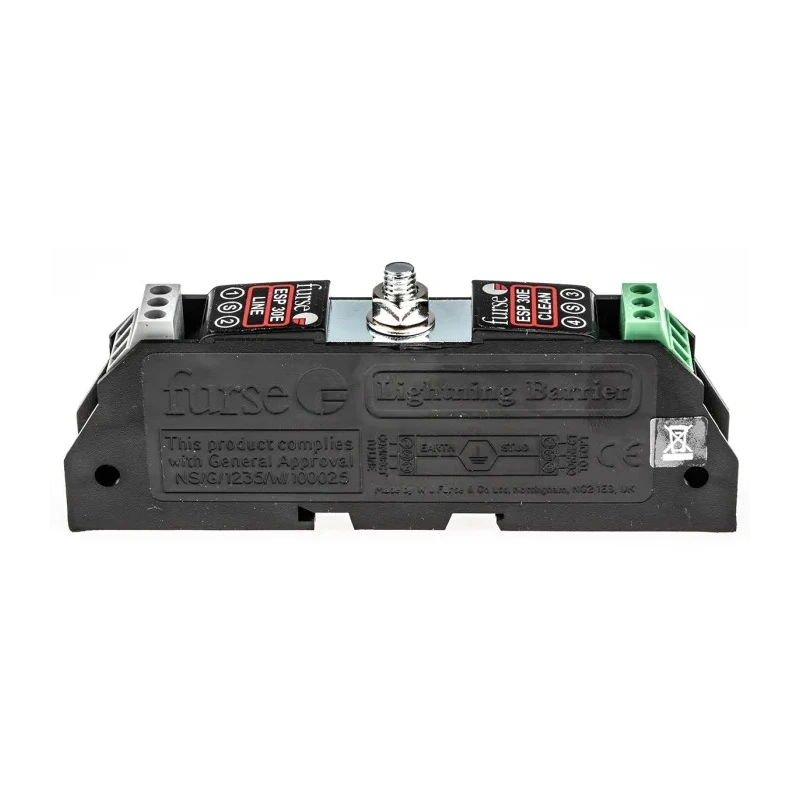

WJ Furse Surge Suppressor Unit ESP E Series Twisted Pair 36.7V Max Voltage 20 kA Max Surge Current 7TCA085400R0104 ESP 30E

WJ Furse 7TCA085400R0104 ESP 30E Surge Suppressor Unit is engineered to protect sensitive electrical and communication systems from damaging overvoltage caused by lightning strikes or power surges. This twisted pair surge protector is capable of handling a maximum voltage of 36.7V and a maximum surge current of 20 kA, making it reliable for industrial and commercial use.

The unit features a compact design with dimensions 54mm height, 19mm depth, and 120mm length, and it mounts easily onto DIN rails using its built-in foot. The flame-retardant ABS case ensures minimal fire risk during operation, enhancing safety in electrical installations.

Color-coded terminals aid in distinguishing between dirty and clean lines for simpler wiring, and the substantial earth stud enables effective earthing to divert surges safely to ground. Its broad bandwidth of 45 MHz allows compatibility with high-frequency data communication systems, supporting uninterrupted device operation even during transient events.

Operating reliably within a temperature range from -25°C to 70°C, this surge suppressor is designed for repeated use in lightning-intensive environments without needing frequent replacement. Applications for this product span power distribution networks, electrical equipment protection, photovoltaic (solar) systems, and sectors such as oil and gas where surge threats are common.

Designed for twisted pair surge protection compatible with high-frequency data communications. Compact DIN rail mount design measuring 54mm (H) x 19mm (D) x 120mm (L) for easy installation. Flame-retardant ABS housing material for enhanced safety during operation.

Operates safely within temperature range from -25°C to 70°C. Color-coded terminals streamline installation, ensuring clear identification of dirty and clean lines. Robust earth stud provides effective and reliable grounding.

Suitable for use in lightning-prone environments, providing repeated surge protection. Common applications include power distribution, photovoltaic systems, electrical equipment, and oil and gas industry.

Protect your valuable equipment with the WJ Furse ESP E Surge Suppressor Unit, ideal for electrical engineers, industrial facilities, and communication systems requiring surge protection. Explore more Surge Protection Devices and electrical components at EnvMart.
