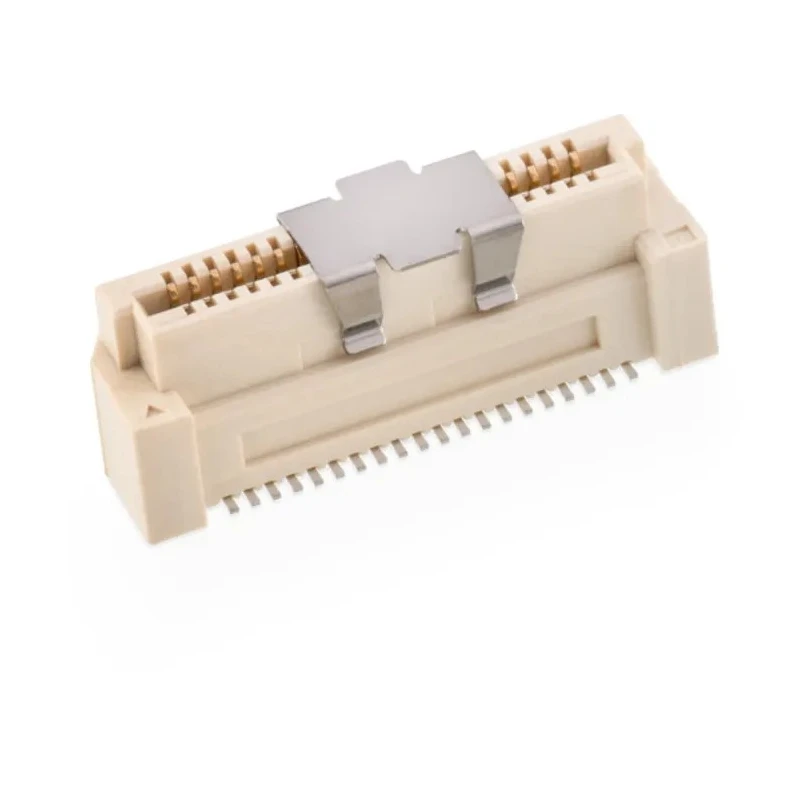

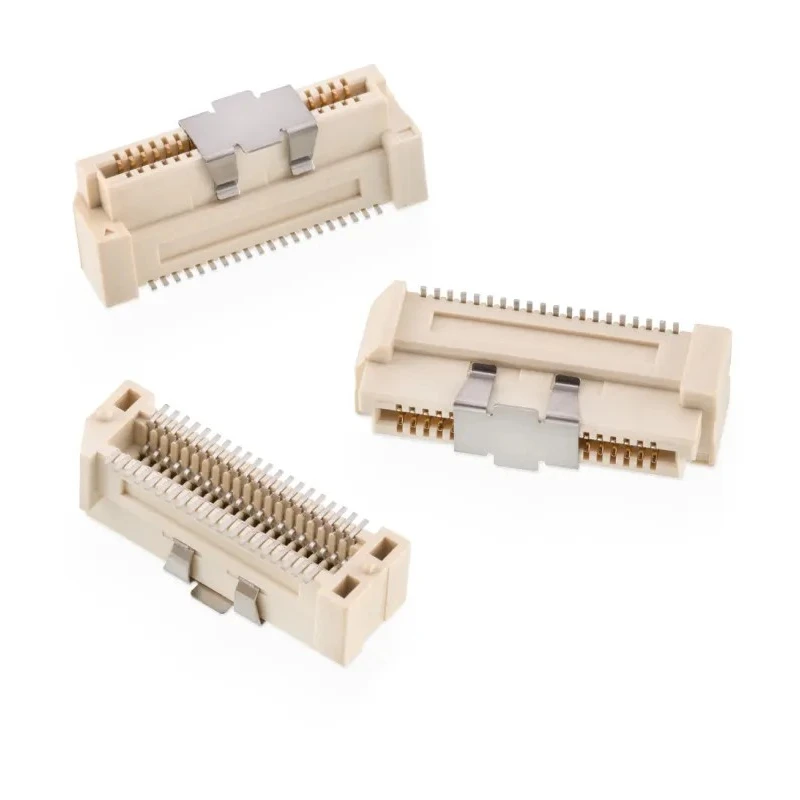

Wurth Elektronik WR-BTB Series Vertical Surface PCB Socket 100-Contact, 1 Row, 0.8 mm Pitch 658807713100

Wurth Elektronik 658807713100 PCB Socket is a vertical surface mount connector designed for board-to-board electronic applications. It features 100 female contacts arranged in a single row with a fine 0.8 mm pitch, offering precise and reliable electrical interface with solder termination.

The socket is constructed with a liquid crystal polymer (LCP) housing which provides excellent thermal stability and mechanical strength, suitable for demanding environments. Its copper alloy contacts feature gold plating to enhance conductivity and reduce corrosion, ensuring long-lasting performance.

Rated for operation at currents up to 500 mA and voltage up to 50 V, this component supports robust signal integrity for compact electronic assemblies. It withstands a wide operating temperature range from -55°C to +85°C, making it suitable for industrial, manufacturing, laboratory, and commercial electronics applications.

The vertical mounting orientation optimizes board space and layout flexibility. Ideal in surface mount technology (SMT) assembly processes, it facilitates easy integration into printed circuit boards with solder termination.

The WR-BTB series by Wurth Elektronik is well-regarded for quality and dependable electronic components. This model 658807713100 combines precision engineering and material quality for high-reliability connections in demanding use cases.

Provides secure board-to-board connection for electronic assemblies. Operates at voltage up to 50 V with a current rating of 500 mA. Constructed from liquid crystal polymer housing and copper alloy contacts. Gold plating on contacts ensures reliable conductivity and corrosion resistance.

Capable of withstanding temperatures from -55°C to +85°C. Designed for solder termination ensuring robust mechanical and electrical connection. Contact gender is female, suitable for corresponding male connectors. Vertical orientation optimizes usage in compact PCB layouts.

Meets industrial standards but has no specific certifications. Manufactured in China under the WR-BTB series.

This PCB socket is ideal for use in electronics manufacturing, industrial control systems, telecommunications, and other applications requiring robust connector solutions. Explore the Wurth Elektronik catalog for compatible components and accessories.
