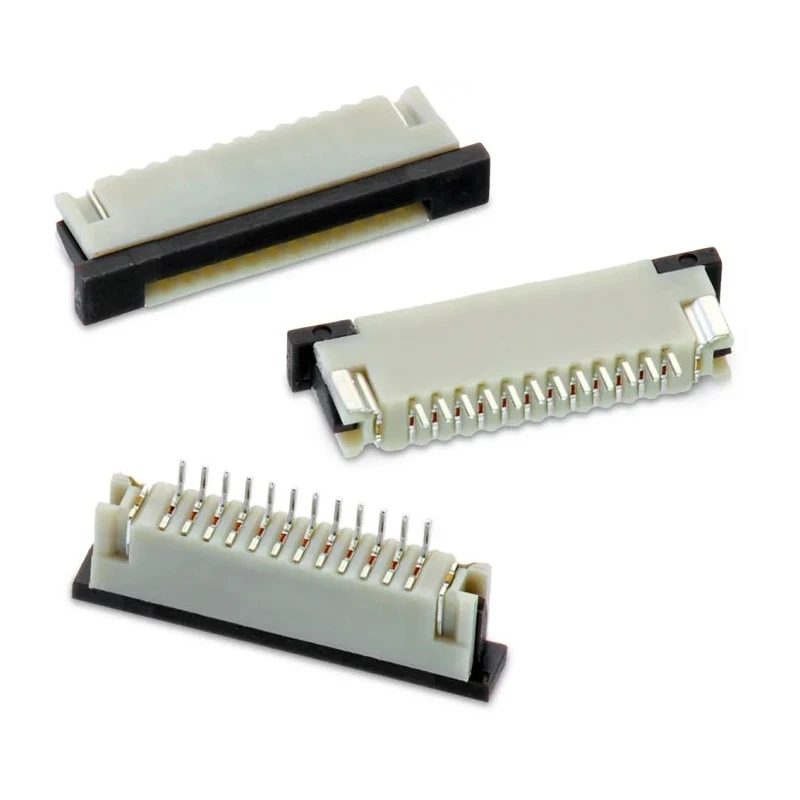

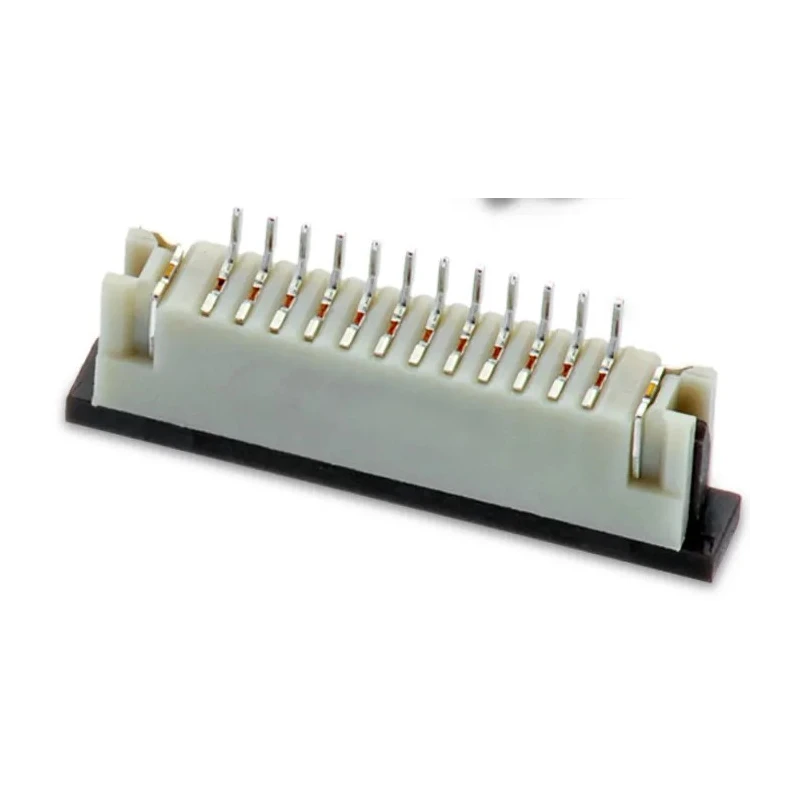

Wurth Elektronik WR-FPC 1 mm Pitch 28 Way Horizontal Female FPC Connector, ZIF Bottom Contact 68612814422
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Bottom Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 28 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
| Insulator Material | PPS |
Key Features
- This connector has 28 contacts for reliable electronic connection.
- Contact material is phosphor bronze with tin over nickel plating for durability.
- The connector operates at a voltage of 125 V and a current of 1 A.
- It features a zero insertion force (ZIF) mechanism with locking for easy and secure connections.
- The housing is made from polyphenylene sulphide (PPS) with an insulating material of PPS for high performance.
- Designed for horizontal orientation with bottom contact position, it suits compact PCB layouts.
- Operating temperature ranges from -25°C to 85°C, ensuring reliability in various environments.
- Manufactured in China, meeting standard industrial quality requirements.
Product Description
Wurth Elektronik 68612814422 FPC Connector is a high-quality 28 Way horizontal female connector with a 1 mm pitch designed for surface mounting on printed circuit boards. It features a zero insertion force (ZIF) bottom contact termination type that allows for easy and damage-free cable insertion and removal, making it suitable for delicate electronics applications.
The contacts are made of phosphor bronze, plated with tin over nickel to ensure excellent electrical conductivity and corrosion resistance. The connector's housing uses polyphenylene sulphide (PPS), a durable thermoplastic material known for its mechanical and thermal stability. The insulator material is also PPS, contributing to reliable insulation and long-term performance.
Operating at a voltage of 125 V and a current rating of 1 A, this connector supports standard signal transmission requirements. The horizontal design with a bottom contact position facilitates compact device integration. It is fitted with a locking mechanism that secures the connection against vibrations or accidental disconnection.
The connector is rated for a temperature range from -25°C to 85°C, making it suitable for industrial and electronic component applications exposed to varying thermal conditions. Manufactured in China under the WR-FPC series, it conforms to the demands of electronics manufacturers needing dependable, precise connectors.
28 contacts for secure connectivity. Phosphor bronze contact material with tin over nickel plating. Surface mount type suitable for PCB assembly. Zero insertion force (ZIF) bottom contact for cable protection. Polyphenylene sulphide (PPS) housing and insulator materials.
Voltage rating of 125 V and current rating of 1 A. Operating temperature range from -25°C to 85°C. Horizontal orientation with locking mechanism.
This connector is ideal for electronics manufacturing, industrial equipment, and laboratory instrumentation where precision and reliability in FPC connections are critical. For more products like the WR-FPC series and other electronic components, explore the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates at a voltage of 125 V and has a current rating of 1 A.
The contacts are made of phosphor bronze with tin over nickel plating, while the housing and insulator materials are both polyphenylene sulphide (PPS).
It operates within a temperature range of -25°C to 85°C, making it suitable for various environmental conditions.
This model features a zero insertion force (ZIF) bottom contact termination type, allowing for easy and damage-free cable insertion and removal.
It has 28 contacts designed for secure connectivity.
This connector is designed for horizontal orientation with a bottom contact position.
It is a surface mount type, suitable for assembly on printed circuit boards (PCBs).
Yes, it features a locking mechanism that secures the connection against vibrations or accidental disconnection.
It is ideal for electronics manufacturing, industrial equipment, and laboratory instrumentation where reliable FPC connections are critical.
The pitch size of this connector is 1 mm.
This connector is manufactured in China, meeting standard industrial quality requirements.
The contact gender of this connector is female.
