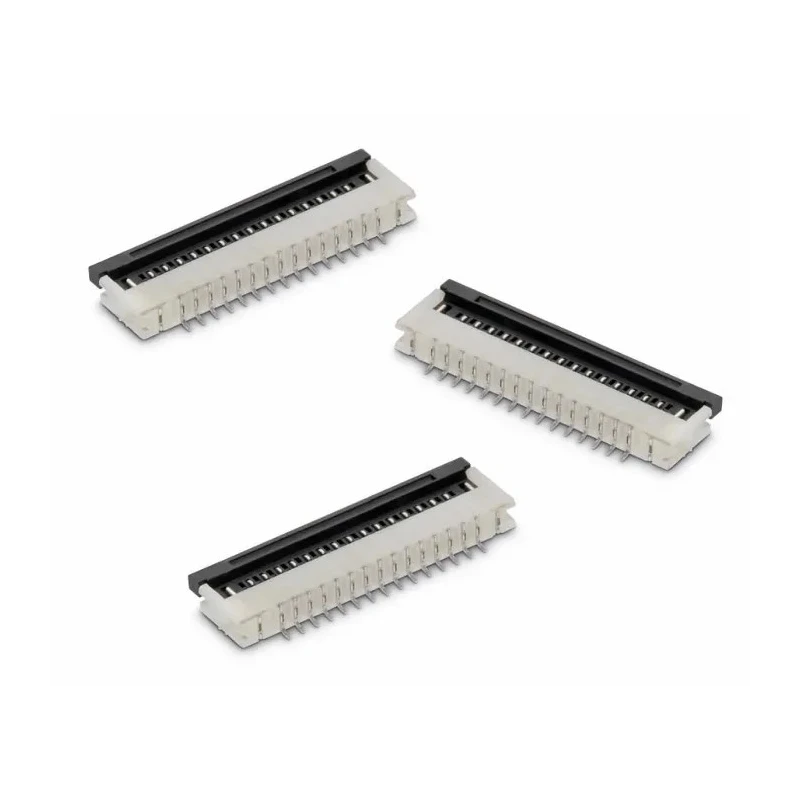

Wurth Elektronik WR-FPC 1 mm Pitch 22 Way Horizontal Female FPC Connector Solder 686122148922

Wurth Elektronik model 686122148922 is a 22 way horizontal female FPC Connector designed for surface mount technology (SMT) with a 1 mm pitch. It features a solder termination and a bottom contact position configuration ensuring stable and secure electrical connections. The connector integrates a flip-lock hinged actuator providing zero insertion force (ZIF) insertion, which protects delicate flexible printed circuits (FPC) during installation.

The connector is manufactured with high-quality phosphor bronze contacts plated with tin over nickel for enhanced conductivity and corrosion resistance. Its polyamide housing delivers strong mechanical stability and thermal endurance, allowing operation over a wide temperature range from -40°C to 105°C. The device supports a rated current of 1 amp and voltage rating of 100 V AC, making it suitable for many electronics applications where reliable low power connections are critical.

This low profile, lightweight, and compact single-row FPC connector is especially suitable for applications requiring space savings on PCB assemblies including small display screens, keyboards, and other miniaturized electronic devices. It provides cost-effective wire-to-board connections by allowing direct insertion of flexible cables without needing a mating connector.

The solder retention feature improves the connector's mechanical endurance during reflow soldering and assembly processes ensuring robust PCB fixation. The inclusion of a locking mechanism further enhances connection security against vibration and mechanical stress.

Phosphor bronze contact material ensures excellent electrical performance and durability. Flip-lock hinged actuator for secure ZIF connection reduces cable damage risk. Solder termination with retention feature supports reliable PCB assembly.

Compact 1 mm pitch with 22 contacts in a single row optimizes PCB space usage. Wide operating temperature range (-40°C to 105°C) suitable for diverse environments. Tin over nickel contact plating delivers corrosion resistance and longevity.

Polyamide housing offers robust mechanical strength and thermal stability. Voltage rating of 100 V AC and current capacity of 1 A for low power electronic circuits.

This FPC Connector is ideal for industrial, telecommunications, consumer electronics, and other manufacturing sectors requiring compact, secure, and reliable flexible circuit connections. It simplifies board design and assembly, contributing to efficient mass production of high-density electronic assemblies.
