| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.9mm |
| Length | 1.3mm |
| Model | BZX584C20-HG3-08 |
| Mount Type | Surface |
| Series | BZX584C |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 200mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 20V |
| Zener Type | Small Signal |

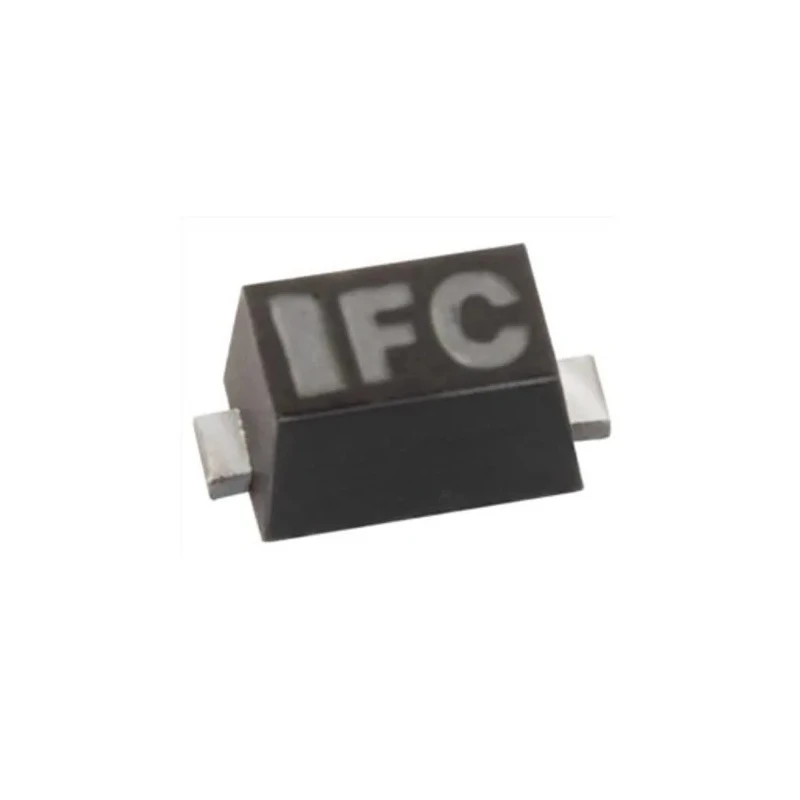

Vishay BZX584C20-HG3-08 is a small signal zener diode designed for electronic and electrical semiconductor applications. It delivers a nominal zener voltage of 20 V with a tolerance of ±5%, making it suitable for voltage regulation and reference circuits where precise voltage control is critical.
The diode comes in a compact SOD-523 plastic surface mount package with a small footprint measuring 1.3 mm in length and 0.9 mm in height. This form factor supports high-density PCB layouts commonly found in telecommunications, automotive electronics, and consumer devices.
Rated for a maximum power dissipation of 200 mW, this diode handles low power electronics applications efficiently. It features a single diode element per chip with a pin count of two for straightforward circuit integration. The diode supports a test current of 5 mA and exhibits a very low maximum reverse leakage current of 50 nA, which ensures minimal power loss and leakage in the circuit.
Operating temperature range extends from -65°C to 175°C, making this diode suitable for automotive and industrial environments where temperature extremes are expected. It complies with RoHS directives and is AEC-Q101 qualified for automotive-grade quality and reliability.
The package provides excellent thermal and electrical performance suitable for industrial electronics. The diode's nominal voltage temperature coefficient is 0.001 ppm/°C, ensuring voltage stability across temperature variations.
Its robust standards and approvals make it a preferred choice for electronics manufacturing and design applications. This small signal zener diode is ideal for use in voltage clamping, noise suppression, and precision voltage referencing in circuits.
Perfect for industrial, automotive, telecommunications, and consumer electronics applications requiring precise voltage regulation in a compact package. Choose Vishay BZX584C20-HG3-08 for reliable, space-saving voltage regulation with proven automotive-level quality.
