| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.35mm |
| Length | 2.85mm |
| Model | MMSZ5245B-E3-08 |
| Mount Type | Surface |
| Series | MMSZ5245 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 8.5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 15V |
| Zener Type | Small Signal |
| Maximum Zener Impedance | 16Ω |

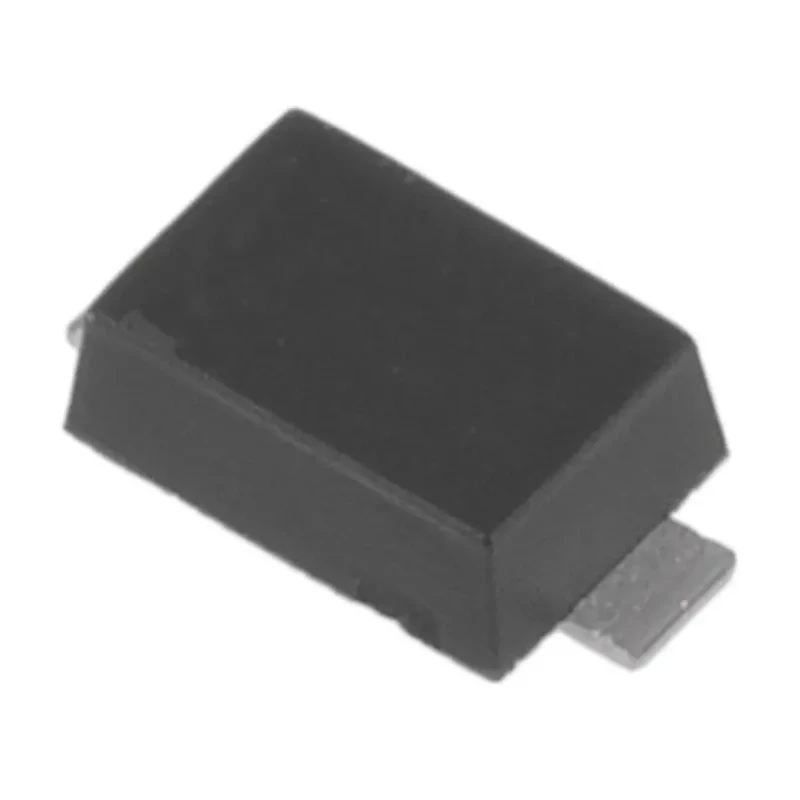

Vishay MMSZ5245B-E3-08 is a single small signal Zener diode featuring a nominal Zener voltage of 15 V and maximum power dissipation of 500 mW, housed in a compact SOD-123 surface mount package. The diode is designed for robust operation within a temperature range of -55°C to 150°C, making it suitable for industrial, automotive, and electronic circuit protection applications.
The diode’s 5% voltage tolerance ensures precision voltage regulation in sensitive electronic circuits. Its low maximum reverse leakage current of 100 nA and a maximum Zener impedance of 16 Ω contribute to efficient performance and stability under operational stress.
Compact package dimensions of 2.85 mm length and 1.35 mm height facilitate integration into high-density PCB layouts. The diode meets the AEC-Q101 automotive quality standard, ensuring reliable operation under automotive vibration and temperature conditions.
This Zener diode is ideal for use in voltage regulation, voltage reference, and transient voltage suppression in electronic equipment, power supplies, and automotive electronic control units.
Key features include a small signal type diode configuration, 2-pin layout for straightforward mounting, and compatibility with surface mount technology assembly lines. Single diode configuration designed for surface mounting.
Maximum power dissipation of 500 mW suitable for small signal applications. Nominal Zener voltage of 15 V with ±5% tolerance. Small signal Zener type with low maximum reverse leakage current of 100 nA. Operating temperature range from -55°C to 150°C ensuring reliability in diverse environments.
Compact SOD-123 package dimensions: 2.85 mm length and 1.35 mm height. AEC-Q101 automotive standard qualified for superior performance in automotive applications. Test current of 8.5 mA with maximum Zener impedance of 16 Ω.
Pin count of 2 for easy circuit integration.
Explore the Electronics & Electricals category at EnvMart for more semiconductor components including Zener Diodes for your industrial, automotive, and commercial electronic design needs.
Interested in this product? Drop us an email and we will let you know when it's available for order.
