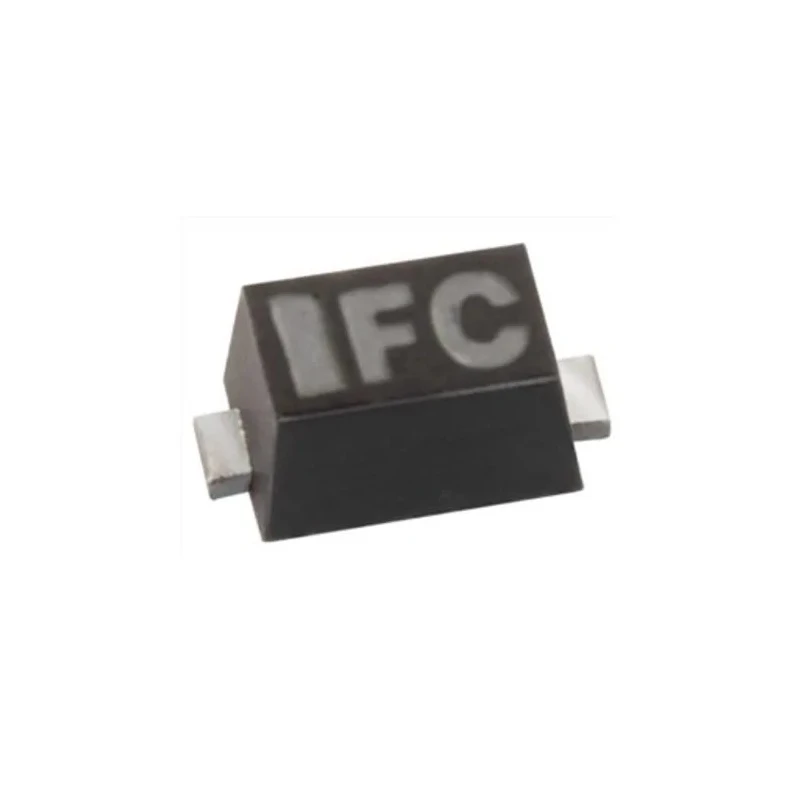

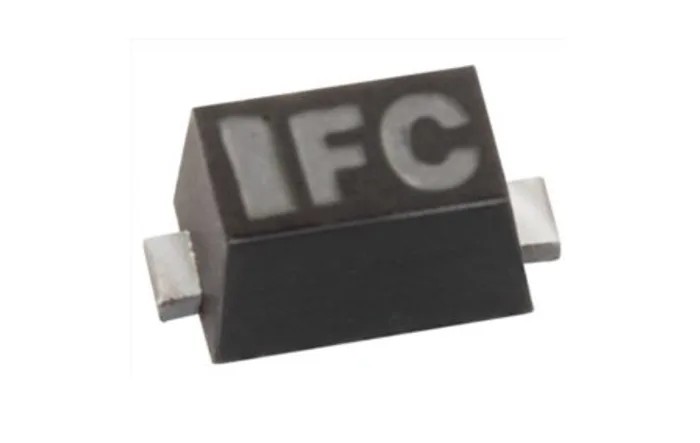

Vishay 18 V 200 mW Small Signal Zener Diode Surface Mount 2-Pin SOD-523 BZX584C18-HG3-08

Vishay BZX584C18-HG3-08 is a highly reliable 18 V small signal Zener diode in a compact SOD-523 plastic surface mount package. Designed specifically for space-sensitive and compact electronic applications, it provides precise voltage regulation with a ±5% tolerance. The diode is a single element chip with a nominal Zener voltage of 18 V and a maximum power dissipation of 200 mW.

This diode has an operating temperature range from -65°C to 175°C, making it suitable for harsh environments. It features a maximum reverse leakage current of 50 nA which ensures efficient performance with minimal loss. Its automotive-grade AEC-Q101 qualification further guarantees durability in automotive and industrial electronics.

The small dimensions of 1.3 mm in length and 1.9 mm in height allow integration on densely packed printed circuit boards (PCBs). This device is RoHS compliant, meeting environmental and safety standards.

Applications include voltage regulation, voltage reference in industrial, automotive, consumer electronics, and telecommunications equipment. Its surface mount design is ideal for automated PCB assembly in mass production.

The diode configuration is single with nominal Zener voltage of 18 V. Maximum power dissipation is rated at 200 mW suitable for small signal applications. RoHS compliance ensures it meets global environmental regulations.

AEC-Q101 automotive qualification supports usage in vehicle electronics. Wide operating temperature range makes it reliable in industrial environments. Compact SOD-523 package supports space-saving PCB layouts. Explore more Vishay semiconductor components and Zener Diodes at EnvMart for your electronic design needs.
