DiodesZetex 1-Input Buffer Schmitt Trigger Input Buffer 5-Pin SOT-323 74AHCT1G126QSE-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 1-Input Buffer Schmitt Trigger Input Buffer 5-Pin SOT-323 74AHCT1G126QSE-7

Name: DiodesZetex 1-Input Buffer Schmitt Trigger Input Buffer 5-Pin SOT-323 74AHCT1G126QSE-7
Brand: DiodesZetex
SKU: 171157
Price: 0.08 USD
Availability: InStock



Category Logic Gates Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1mm
Length	2.2mm
Model	74AHCT1G126QSE-7
Mount Type	Surface
Output type	3 State
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	SOT-323
Minimum Operating Temperature	-40°C
Pin Count	5
Number of Elements	1
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	AHC
Logic Function	Buffer
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-8mA
Maximum Propagation Delay Time @ CL	11ns
Maximum Low Level Output Current	8mA
Number of Inputs per Gate	1

Key Features

This device provides a single non-inverting buffer with 3-state output.
The output enters a high impedance state when a low-level is applied to the output enable pin.
It features balanced propagation delays for reliable timing performance.
Designed for grade 1 automotive temperature operation from -40°C to +125°C.
Supports supply voltages from 4.5V to 5.5V suitable for typical 5V logic systems.
Includes automotive standard AEC-Q100 qualification ensuring high reliability.
The compact 5-pin SOT-323 package measures 2.2mm in length and 1mm in height.
Ideal for applications requiring a Schmitt trigger input buffer with low power consumption.

Product Description

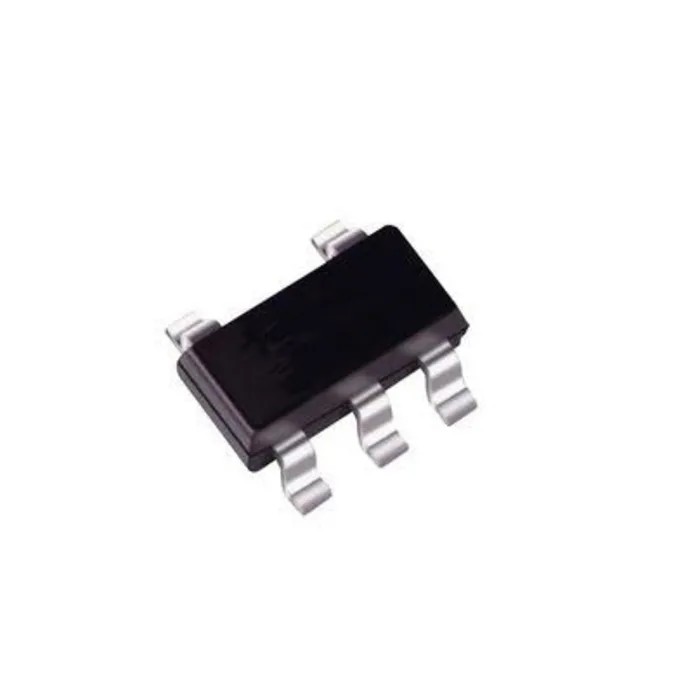

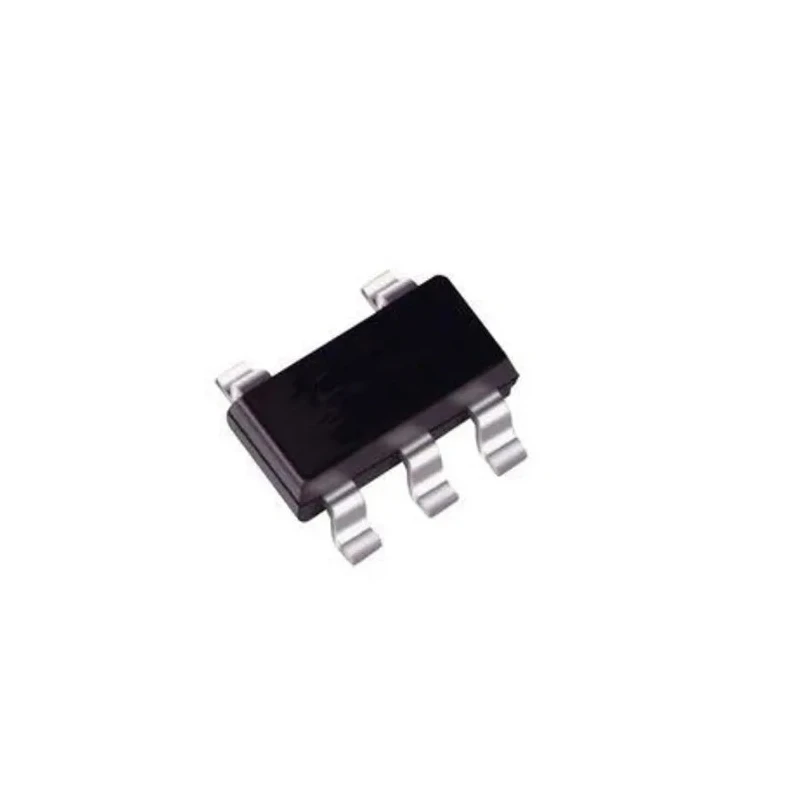

DiodesZetex 74AHCT1G126QSE-7 is a single 1-input buffer Schmitt trigger logic IC housed in a compact 5-pin SOT-323 surface mount package. It operates over a wide automotive temperature range from -40°C to +125°C, making it suitable for harsh industrial and automotive environments.

This buffer features a 3-state output that can switch to a high impedance state when the output enable (OE) pin is driven low. It ensures balanced propagation delays and balanced drive capabilities to provide reliable signal buffering for logic systems operating at 4.5V to 5.5V supply voltages.

Compliant with automotive standard AEC-Q100, the device is targeted at applications in automotive electronics, industrial control systems, and other demanding electronic assemblies requiring robust logic buffering with Schmitt trigger input characteristics.

Its compact SOT-323 package with dimensions of 2.2mm length and 1mm height enables usage in space-constrained PCB designs. The device delivers maximum propagation delay of 11ns and supports maximum output currents of ±8mA for high and low-level outputs, respectively.

This single buffer IC provides non-inverting logic buffering with Schmitt trigger input functionality. 3-state output enables bus-oriented applications by driving high impedance when disabled. Wide operating temperature range ensures reliable performance in automotive and industrial sectors.

Low power surface mount package minimizes PCB footprint and improves assembly density. Balanced delays and drive capability provide consistent signal integrity and timing.

Applications include automotive control modules, industrial automation, communication equipment, and any system requiring reliable Schmitt trigger input buffer functionality within a compact form factor.
