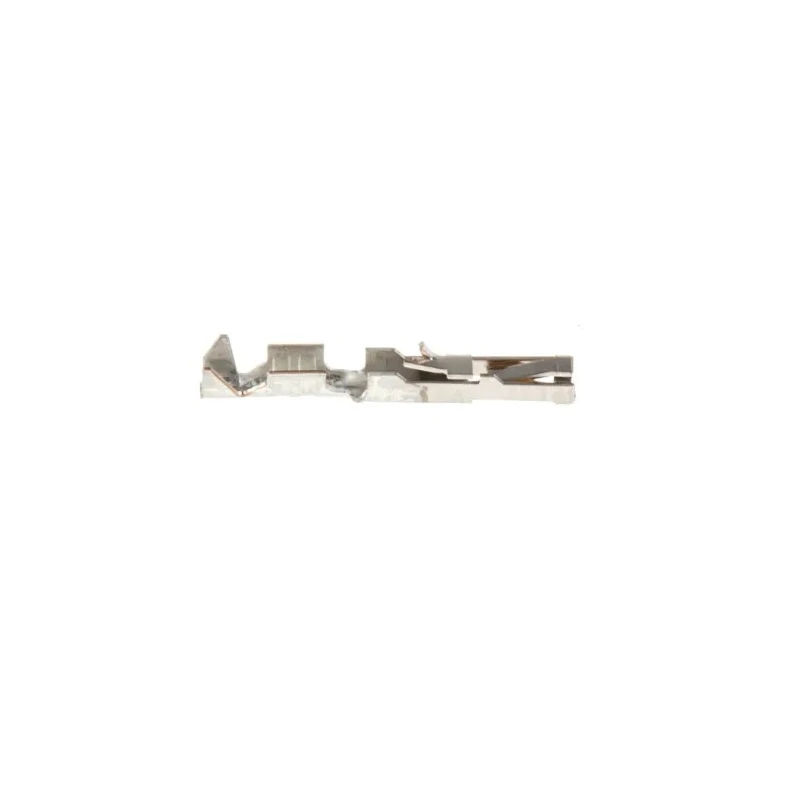

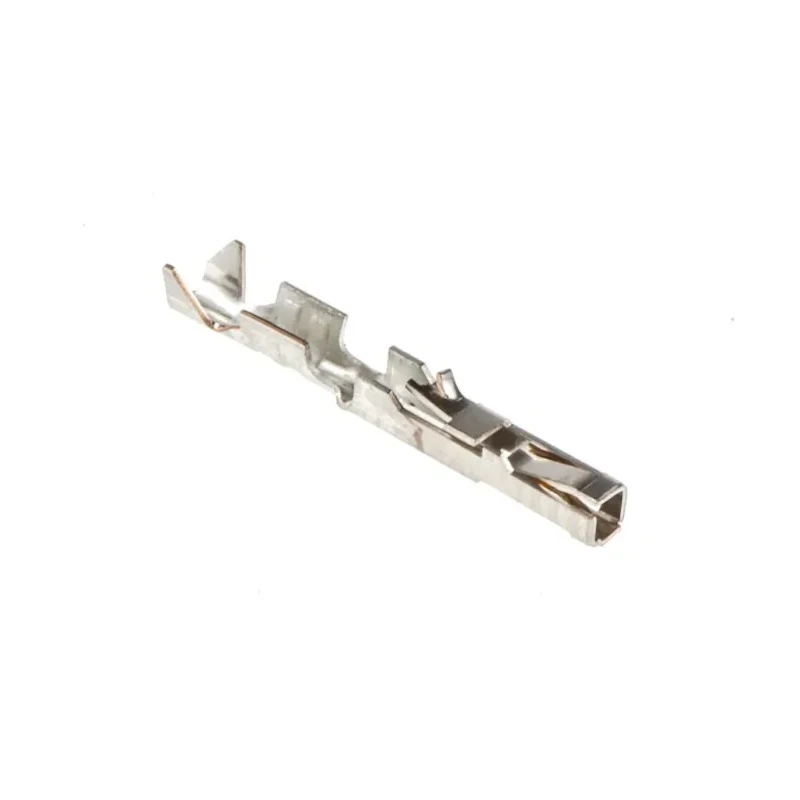

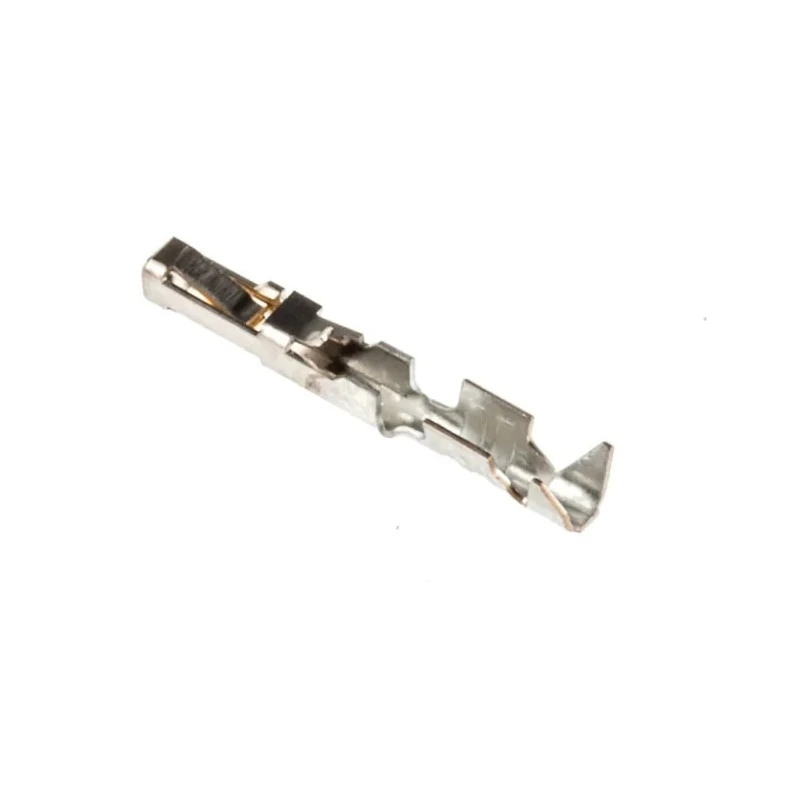

Molex Female Crimp Terminal for 24 to 22 AWG Wires 3A Current Rating 105°C Operating Temp 90119-2110
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Housing | Polyphenylene Oxide |
| Contact Material | Phosphor Bronze |
| Series | 90119 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | C-Grid III Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10 |
| Insulation Material Headers | 15% Glass-filled Polyester (PBT) |
| Header Pin Size | 0.64 square mm |
| Recommended PCB Hole Diameter | 1mm |
Key Features
- Gold-plated phosphor bronze contact ensures excellent conductivity and corrosion resistance.
- Compatible with C-Grid III connector housings for versatile assembly.
- Offers reliable crimp termination providing gas-tight and durable connections.
- Supports a maximum voltage of 350 Vac/dc, suitable for AC and DC applications.
- Constructed with 15% glass-filled polyester insulation and polyphenylene oxide housing for durability.
- Recommended PCB hole diameter is 1 mm for secure mounting.
- Designed for consumer electronics and commercial vehicle applications.
- Standard compliance includes DIN 41651 and HE13/14 for quality assurance.
Product Description
Molex 90119-2110 female crimp terminal is a high-quality electrical connector component designed for reliable PCB connection with wire gauges from 24 to 22 AWG. This Crimp Terminal supports a current rating of 3A and withstands operating temperatures ranging from -55°C to 105°C.
The contact is made from phosphor bronze with selective gold plating over nickel, providing exceptional conductivity and resistance to corrosion. It features a box design and a uniform locking system, making it compatible with various C-Grid III connector housing series including 90156, 90123, 90142, 90143, and 90160.
Crimp termination offers a gas-tight seal, ensuring dependable electrical connections without the degradation issues common to soldered joints. The insulation headers are made from 15% glass-filled polyester (PBT), while the housing is constructed from durable polyphenylene oxide material.
This terminal supports both alternating and direct current applications with a maximum voltage rating of 350 Vac/dc. The recommended PCB hole diameter for mounting is 1 mm, with a header pin size of 0.64 square mm.
Applications include consumer electronics and commercial vehicle wiring systems where secure, high-quality electrical connections are essential. The product meets DIN 41651 and HE13/14 standards, ensuring quality and safety compliance.
Gold-plated phosphor bronze contact for corrosion resistance. Compatible with multiple C-Grid III connector housing series. High current and voltage ratings suitable for a range of electronic applications. Durable insulation and housing materials for long service life.
Standard compliant for assured quality and safety. Reliable crimp termination for strong electrical connections. Box design with uniform locking system for secure installation. Recommended for consumer electronics and commercial vehicle electronics.
Operating temperature range from -55°C to 105°C. Explore our Electronics Components category for a broad selection of connectors and related products ideal for industrial, commercial, and electronic manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a current rating of 3A.
It is compatible with wire gauges from 24 AWG to 22 AWG.
The maximum operating temperature for this terminal is 105°C.
The contact is made from phosphor bronze with gold plating, and the insulation headers are made from 15% glass-filled polyester. The housing is constructed from polyphenylene oxide.
The recommended PCB hole diameter for this terminal is 1 mm.
It supports a maximum voltage of 350 Vac/dc, suitable for both AC and DC applications.
This terminal is compatible with various C-Grid III connector housing series, including 90156, 90123, 90142, 90143, and 90160.
It uses a crimp termination type, providing a gas-tight seal for reliable electrical connections.
The minimum operating temperature for this terminal is -55°C.
It is designed for use in consumer electronics and commercial vehicle wiring systems.
The header pin size for this terminal is 0.64 square mm.
This terminal complies with DIN 41651 and HE13/14 standards for quality assurance.
