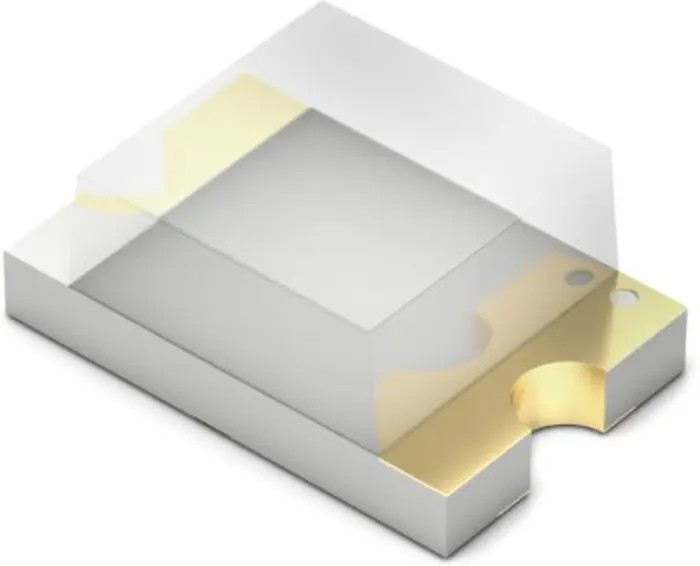

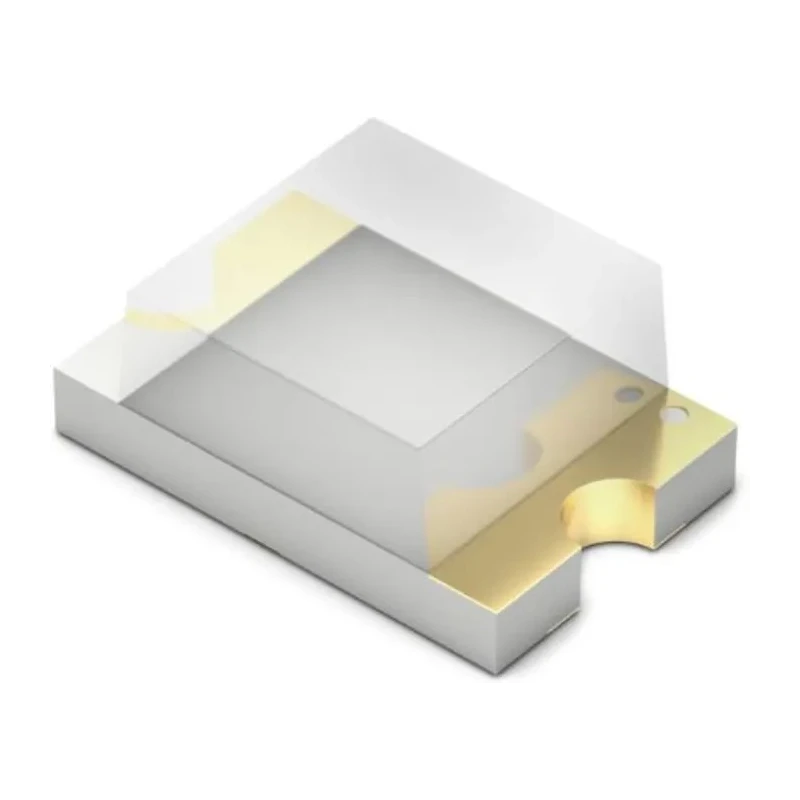

Wurth Elektronik Infrared Phototransistor, Through Hole, 2-Pin 1206 Package 1541201NBA300
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.1mm |
| Length | 3.2mm |
| Model | 1541201NBA300 |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Through Hole |
| Series | WL-STCW |
| Maximum Operating Temperature | 85°C |
| Package Type | 1206 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | IEC 61249-2-21, REACH, RoHS |
| Number of Pins | 2 |
| Peak Wavelength | 940nm |
| Spectrums Detected | Infrared |
| Angle of Half Sensitivity | 130 ° |
| Collector Current | 1mA |
| Maximum Light Current | 0.02μA |
| Collector Emitter Voltage | 30V |
| Emitter Collector Voltage | 5V |
Key Features
- Detects infrared spectrum with peak wavelength at 940nm.
- Features maximum light current of 0.02μA for precise light detection.
- Operates reliably between -40°C and 85°C temperature range.
- Constructed with a water-clear lens and Si chip technology for high reliability.
- Suitable for use with infrared and visible emitters.
- Maximum collector emitter voltage is rated at 30V ensuring device durability.
- Collector current capability up to 1mA.
- Compliant with IEC 61249-2-21, REACH, and RoHS standards.
Product Description
Wurth Elektronik 1541201NBA300 Infrared Phototransistor is designed with advanced Si chip technology and a water-clear lens, enclosed in a standard 1206 package size. Its compact 3.2mm length and 1.6mm width dimensions make it ideal for space-constrained PCB designs.
This phototransistor detects infrared light with a peak wavelength of 940nm and has a 130 ° angle of half sensitivity, enabling precise and efficient light sensing applications. It supports a maximum light current of 0.02μA, allowing for accurate signal detection under varying light conditions.
With operational temperature range from -40°C to 85°C, the device is suited for diverse environmental conditions. The maximum collector emitter voltage of 30V and emitter collector voltage of 5V guarantee safe operation within specified electrical limits.
This component is rated for a collector current of 1mA and is compliant with IEC 61249-2-21, REACH, and RoHS standards, underscoring its quality and environmental compliance.
Wurth Elektronik's 1541201NBA300 phototransistor is used widely in electronics, power connectors, industrial automation, and sensor systems for detecting infrared signals. Its through hole mount type facilitates easy installation in various PCB layouts.
Detects infrared spectrum with peak wavelength at 940nm. High sensitivity with maximum light current of 0.02μA. Operates reliably in temperatures ranging from -40°C to 85°C. Compact 1206 package with length 3.2mm, width 1.6mm, and height 1.1mm.
Compliant with IEC 61249-2-21, REACH, and RoHS standards. Maximum collector emitter voltage of 30V for stable operation. Packaged in tape and reel format ideal for automated assembly. Suitable for infrared and visible emitter applications.
Ideal for electronics components and sensor systems. Explore more Phototransistors and electronic components at EnvMart, your trusted source for industrial-grade parts and modules.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of the Wurth Elektronik 1541201NBA300 phototransistor is 940nm, allowing it to effectively detect infrared light.
This phototransistor has a maximum collector emitter voltage rating of 30V, ensuring safe operation within specified electrical limits.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for diverse environmental conditions.
The maximum collector current capability of this model is 1mA, which allows it to handle various signal detection tasks effectively.
The Wurth Elektronik 1541201NBA300 is packaged in tape and reel format, which is ideal for automated assembly processes.
This model has dimensions of 3.2mm in length, 1.6mm in width, and 1.1mm in height, making it compact for PCB designs.
The angle of half sensitivity for this unit is 130°, which aids in its light detection capabilities.
It is compliant with IEC 61249-2-21, REACH, and RoHS standards, ensuring quality and environmental compliance.
This phototransistor features 2 pins, suitable for through hole mounting in various PCB layouts.
The maximum light current for the Wurth Elektronik 1541201NBA300 is 0.02μA, allowing for precise light detection.
This model is widely used in electronics, power connectors, industrial automation, and sensor systems for detecting infrared signals.
The 1541201NBA300 uses a through hole mount type, facilitating easy installation in various PCB layouts.
