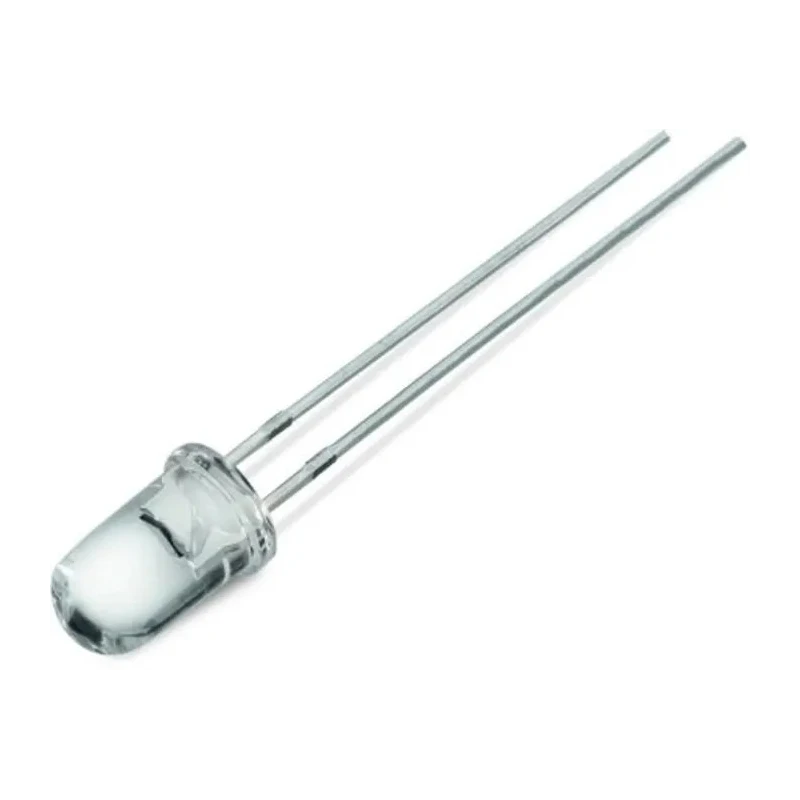

Wurth Elektronik WL-TTRW Infrared Phototransistor Through Hole 2-Pin 3 mm (T-1) Package 1540032NA3090
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | Wurth Elektronik |
| Model | 1540032NA3090 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | WL-TTRW |
| Maximum Operating Temperature | 85°C |
| Package Type | 3 mm (T-1) |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | REACH, RoHS, IEC 61249-2-21 |
| Number of Pins | 2 |
| Peak Wavelength | 850nm |
| Spectrums Detected | Infrared |
| Angle of Half Sensitivity | 30 ° |
| Collector Current | 15mA |
| Maximum Light Current | 0.02μA |
| Collector Emitter Voltage | 30V |
| Emitter Collector Voltage | 5V |
Key Features
- Detects infrared spectrum with peak wavelength at 850nm.
- Features a wide viewing angle of 30 degrees for broad light reception.
- Offers high photo sensitivity suitable for precise applications.
- Maximum collector current of 15mA ensures reliable operation.
- Through-hole mount type with a water-clear lens and daylight filter.
- Operating temperature range from -40°C to 85°C for versatile environments.
- Collector-emitter voltage rated at 30V and emitter-collector voltage at 5V.
- RoHS and REACH compliant meeting industry standards.
Product Description
Wurth Elektronik 1540032NA3090 is a highly sensitive infrared phototransistor featuring a 3 mm (T-1) through-hole package with 2 pins, ideal for electronic circuits requiring precise infrared light detection.
This phototransistor detects infrared light with a peak wavelength of 850nm and provides a wide half sensitivity angle of 30 degrees, facilitating excellent light reception range. It has a maximum collector current of 15mA, supporting reliable and stable operation within the voltage ratings of 30V collector-emitter and 5V emitter-collector.
The device operates effectively across a temperature range from -40°C to 85°C, suitable for diverse industrial, electronic, and automotive applications that do not require automotive standard compliance. It includes a water-clear lens and a daylight filter which helps in minimizing interference from ambient light, enhancing detection accuracy.
Wurth Elektronik’s WL-TTRW series phototransistor complies with REACH and RoHS standards, ensuring environmental safety and regulatory adherence. It is supplied in bulk packaging, making it an ideal choice for manufacturers and integrators.
Its small form factor with 3 mm diameter and through-hole mount design provides easy integration on printed circuit boards in electronics manufacturing, optoelectronics, sensor modules, and other industrial control systems.
Detects infrared spectrum with peak wavelength at 850nm. Wide viewing angle of 30 degrees enhances detection coverage. High photo sensitivity ensures accurate infrared detection. Maximum collector current up to 15mA for robust performance.
Through-hole 2-pin package with water-clear lens and daylight filter. Operating temperature range from -40°C to 85°C ensures versatility. Collector-emitter voltage rated at 30V and emitter-collector voltage at 5V. RoHS and REACH compliant for environmental and safety standards.
Bulk packaging suitable for large-scale manufacturing application.
This Wurth Elektronik phototransistor is ideal for use in electronic circuits, industrial sensing, consumer electronics, and various optoelectronic applications. Browse the broader range of Phototransistors and related components on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of this infrared phototransistor is 850nm, allowing it to effectively detect infrared light.
This model has a maximum collector current of 15mA, ensuring reliable operation in various applications.
The operating temperature range for this device is from -40°C to 85°C, making it suitable for diverse environments.
It is supplied in bulk packaging, which is ideal for large-scale manufacturing applications.
The collector-emitter voltage is rated at 30V, and the emitter-collector voltage is rated at 5V.
The angle of half sensitivity for this phototransistor is 30 degrees, providing a broad light reception range.
This phototransistor features a 2-pin configuration, suitable for through-hole mounting.
This model complies with REACH and RoHS standards, ensuring adherence to environmental safety regulations.
The package diameter for this phototransistor is 3mm, classified as a T-1 package.
This phototransistor is suitable for electronic circuits, industrial sensing, consumer electronics, and various optoelectronic applications.
The maximum light current for this phototransistor is 0.02μA, indicating its sensitivity to light.
This infrared phototransistor belongs to the WL-TTRW series from Wurth Elektronik.
