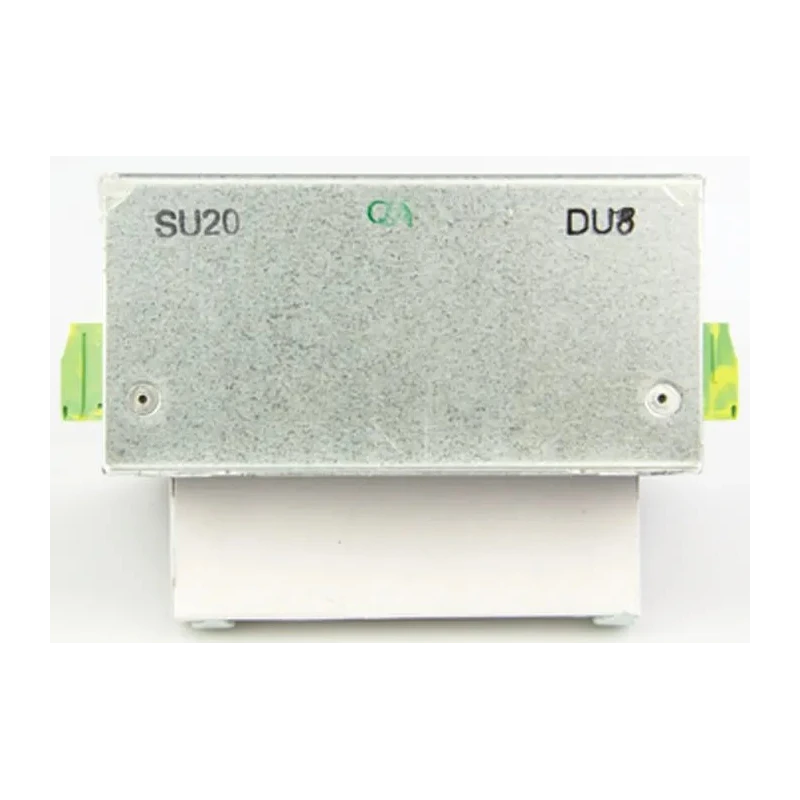

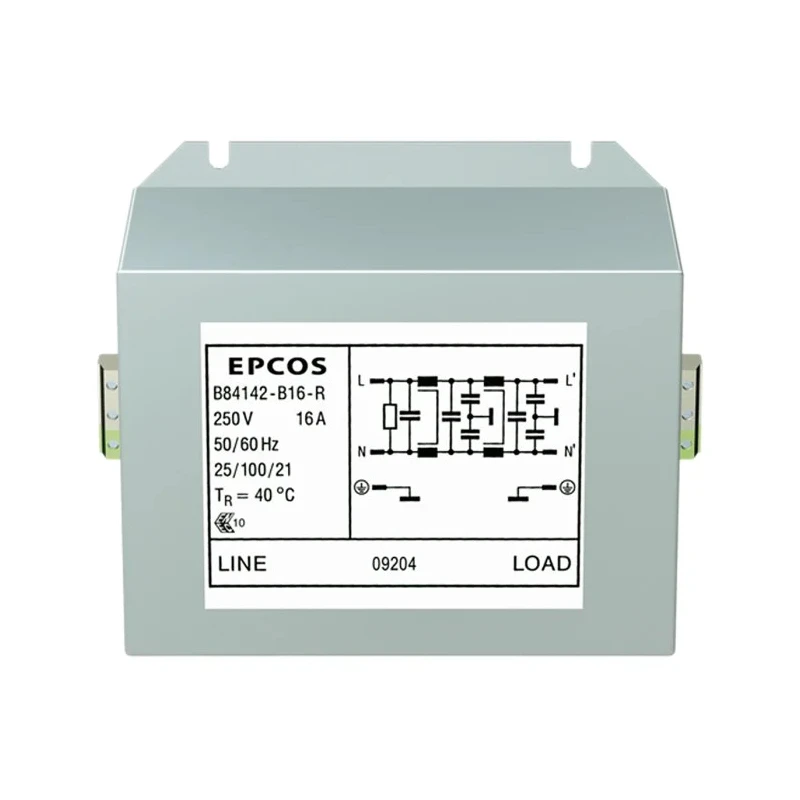

TDK Power Line Filter, Screw Mount, Terminal Block, 16 A, 250V AC/DC, 60Hz, 1 Phase B84142B0016R000
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 61mm |
| Length | 113mm |
| Model | B84142B0016R000 |
| Depth | 144mm |
| Mount Type | Screw |
| Operating Frequency | 60Hz |
| Series | B84142B*R000 |
| Maximum Operating Temperature | 100°C |
| Resistance | 21mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 1 |
| Leakage Current | 2.77mA |
| Maximum Voltage | 250V ac/dc |
| Standards/Approvals | IEC 60939 |
| Termination Style | Terminal Block |
| TDK, B84142A 20 A 250V ac/dc 60Hz, Flange EMC Filter, Screw 1 PhaseBrand | TDK |
Key Features
- Supports a maximum current of 16 A for reliable power filtering.
- Mount type uses screw method ensuring stable installation.

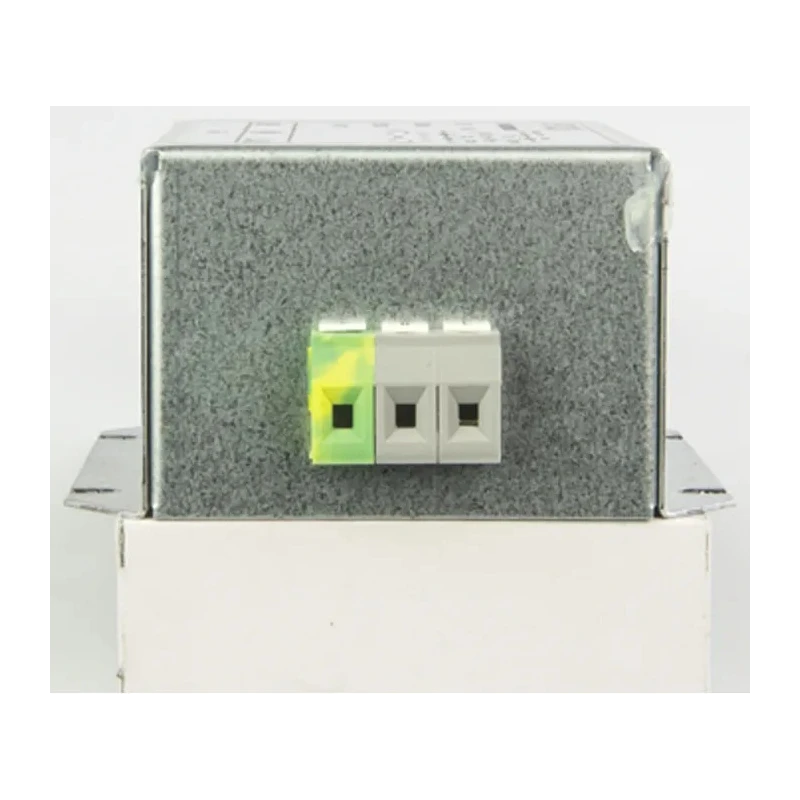

- Feature a terminal block termination style for secure wiring connections.
- Designed for operating frequency of 60Hz common in industrial applications.
- Operating temperature range from -25°C to 100°C supports diverse environments.
- Has low leakage current of 2.77mA to maintain efficiency.
- Resistance is 21mΩ contributing to minimal power loss.
- Compliant with IEC 60939 standard ensuring quality and safety.
Product Description
TDK B84142B0016R000 power line filter is a high-performance EMC filter designed for one-phase power line protection. It features screw mount and terminal block style terminations, rated for a maximum current of 16 A and voltage rating of 250V AC/DC at a frequency of 60Hz. This filter is engineered to optimize electrical noise suppression in power electronics and frequency converters.
The filter operates efficiently within a temperature range from -25°C to 100°C, making it suitable for various industrial environments including HVAC systems, motor drives, pumps, and conveyor systems. Its leakage current is minimized to just 2.77mA, enhancing overall system efficiency.
With compact physical dimensions of 113mm length, 144mm depth, and 61mm height, the device offers easy installation in constrained spaces. Its resistance value of 21mΩ ensures minimal power dissipation while maintaining effective filtering.
Compliant with IEC 60939 standards, this power line filter guarantees high reliability and safety. It is manufactured in China and comes as part of the B84142B*R000 series known for robust EMI protection in power electronics applications.
Supports a maximum current of 16 A for reliable power filtering. Rated voltage is 250V AC/DC suitable for various power electronics. Mount type uses screw method ensuring stable installation. Feature a terminal block termination style for secure wiring connections.
Designed for operating frequency of 60Hz common in industrial applications. Operating temperature range from -25°C to 100°C supports diverse environments. Has low leakage current of 2.77mA to maintain efficiency. Compact dimensions: length 113mm, depth 144mm, height 61mm for space-saving.
Resistance is 21mΩ contributing to minimal power loss. Compliant with IEC 60939 standard ensuring quality and safety.
This power line filter is ideal for applications in industrial automation, frequency converters, motor drives, power supplies, HVAC systems, and DC power applications. The screw mount and terminal block connection style facilitate straightforward integration into existing setups. Explore more components in the TDK EMI Filters & Protection category on EnvMart for complementary solutions.
Explore more products in our Power Line Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this power line filter is 16 A.
This model is rated for a maximum voltage of 250V AC/DC.
It is designed for an operating frequency of 60Hz, which is common in industrial applications.
The filter operates efficiently within a temperature range from -25°C to 100°C.
This model uses a screw mount type for stable installation.
It features a terminal block termination style for secure wiring connections.
The dimensions are 113mm in length, 144mm in depth, and 61mm in height.
The leakage current is minimized to just 2.77mA, enhancing overall system efficiency.
The resistance value of this power line filter is 21mΩ, contributing to minimal power loss.
Yes, it is compliant with the IEC 60939 standard, ensuring quality and safety.
This power line filter is manufactured in China.
