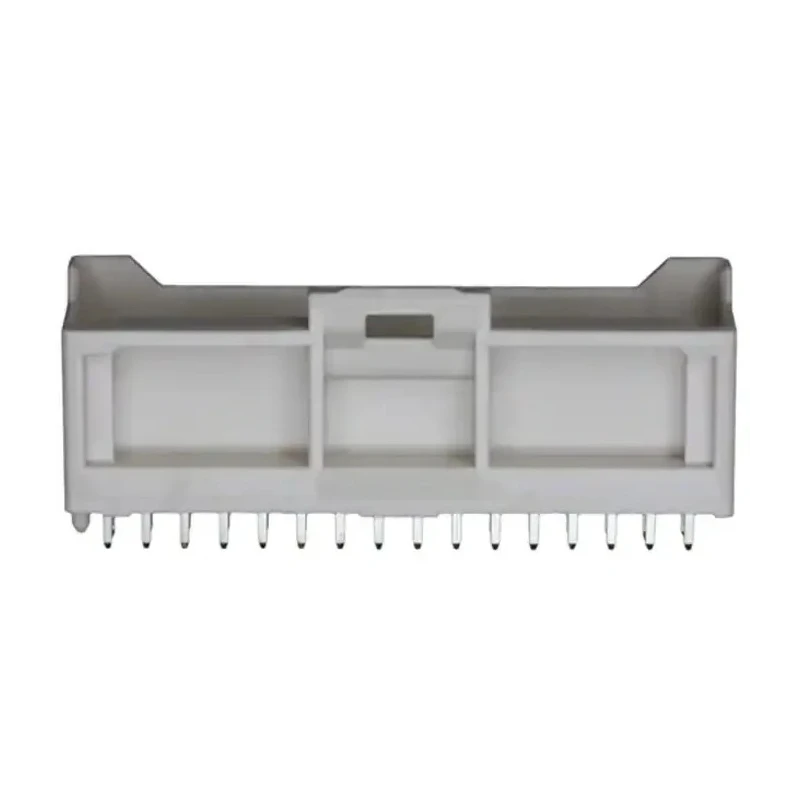

Molex iGrid Series Vertical Through Hole PCB Header, 32 Contacts, 2 mm Pitch, 2 Row, Shrouded 5016453220
Specifications
| Country of Origin | Vietnam |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | iGrid |
| Termination Type | Tin |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | CSA LR19980, UL E29179 |
| Contact Plating | Tin |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | iGrid Wire to Board Dual Row System |
| Tail Pin Length | 3.2mm |
Key Features
- Features a 2 mm pitch and two rows for compact design.
- Shrouded connector housing made from durable nylon for protection.
- Male contacts made of brass with tin plating for excellent conductivity.
- Through-hole mount type ensures secure PCB installation.
- Rated for 2A current and 250V voltage for dependable electrical performance.
- Operating temperature range from -40°C to 105°C suits diverse environments.
- Tail pin length of 3.2 mm supports robust PCB soldering.
- Meets CSA LR19980 and UL E29179 certifications for quality assurance.
Product Description
Molex 5016453220 is a vertical orientation, through-hole PCB header from the iGrid series, designed with 32 male contacts arranged in two rows with a 2 mm pitch.
The connector housing is constructed from robust nylon material, ensuring durability and electrical insulation, while the brass contacts plated with tin provide reliable conductivity and corrosion resistance.
Tail pins measure 3.2 mm in length, optimizing soldering strength to PCB boards, making this header suitable for electronic and electrical component applications requiring stable wire-to-board connections.
This PCB header supports an operating current of 2 amperes and voltage up to 250 volts, making it suitable for various low to moderate power electronic circuits. Operating temperature is rated from -40°C to a maximum of 105°C, allowing performance across diverse industrial, laboratory, and manufacturing environments.
As a shrouded connector type, it offers added protection against accidental contact and mechanical damage, enhancing signal integrity in electronic assemblies. This product complies with CSA LR19980 and UL E29179 standards, ensuring safety and quality in electronic manufacturing.
Features a 2 mm pitch and two rows for compact design. Shrouded connector housing made from durable nylon for protection. Male contacts made of brass with tin plating for excellent conductivity. Through-hole mount type ensures secure PCB installation.
Rated for 2A current and 250V voltage for dependable electrical performance. Operating temperature range from -40°C to 105°C suits diverse environments. Tail pin length of 3.2 mm supports robust PCB soldering. Meets CSA LR19980 and UL E29179 certifications for quality assurance.
This Molex PCB Header is ideal for industrial electronics manufacturing, power supply assemblies, automation control systems, and other applications requiring a reliable and secure PCB connection.
Explore EnvMart for a comprehensive range of PCB connectors and headers designed to meet strict industrial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 2 mm pitch and includes 32 male contacts arranged in two rows.
It is rated for a maximum voltage of 250V and a current of 2A, suitable for low to moderate power electronic circuits.
The housing is made from nylon, while the male contacts are constructed from brass with tin plating for conductivity and corrosion resistance.
The tail pin length is 3.2 mm, which supports robust soldering to PCB boards.
It operates within a temperature range of -40°C to 105°C, making it suitable for diverse environments.
This unit uses a through-hole mount type, ensuring secure installation on PCB boards.
It is a shrouded connector type, providing added protection against accidental contact and mechanical damage.
This PCB header complies with CSA LR19980 and UL E29179 standards, ensuring quality assurance in electronic manufacturing.
It is part of the iGrid Wire to Board Dual Row System, designed for stable wire-to-board connections.
It is ideal for industrial electronics manufacturing, power supply assemblies, and automation control systems requiring reliable PCB connections.
This model has a vertical orientation, which is common for various electronic applications.
The country of origin for this PCB header is Vietnam.
