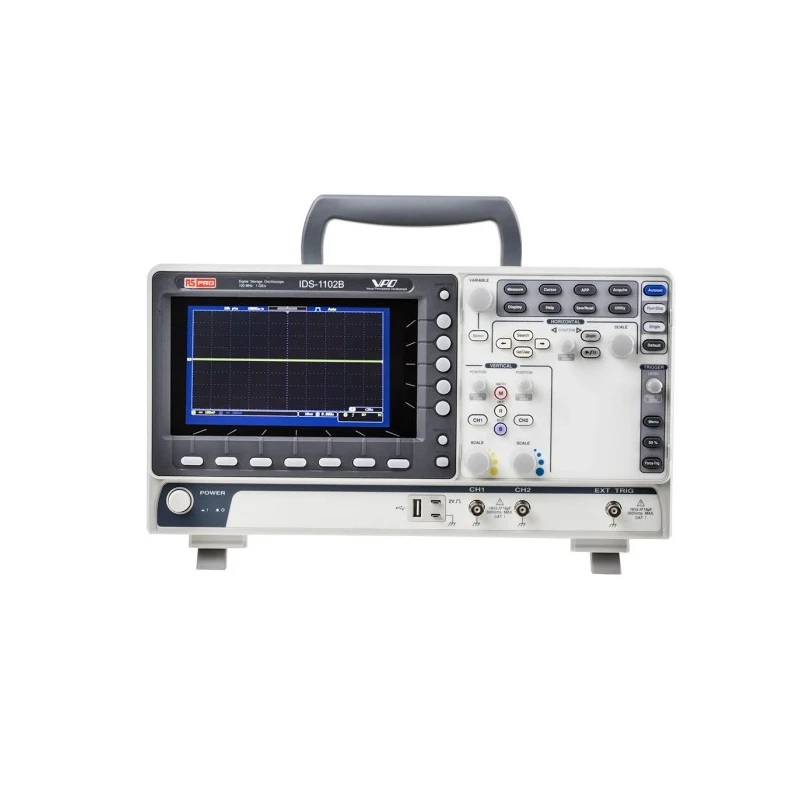

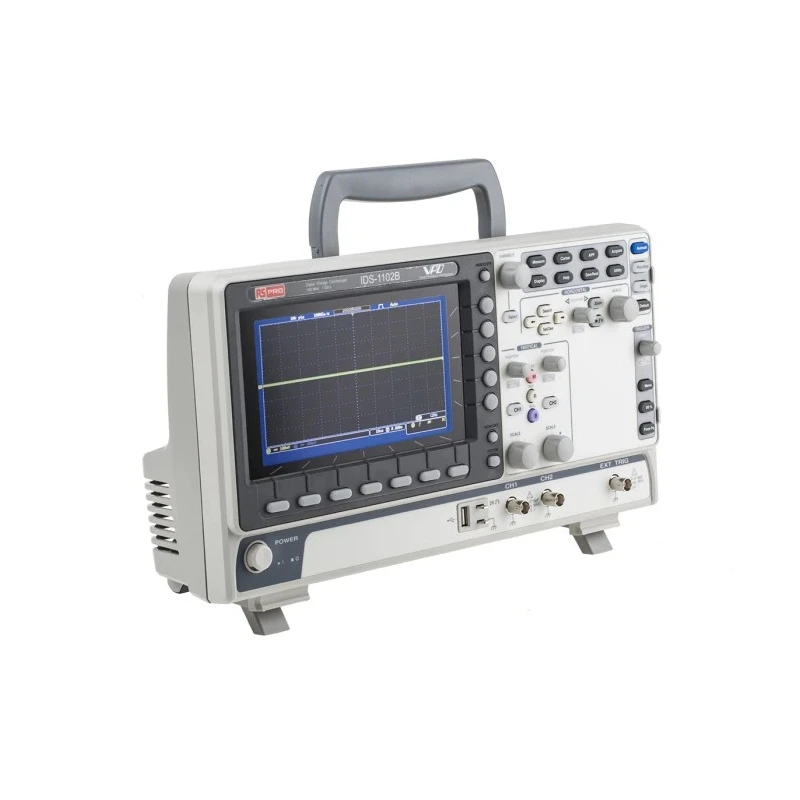

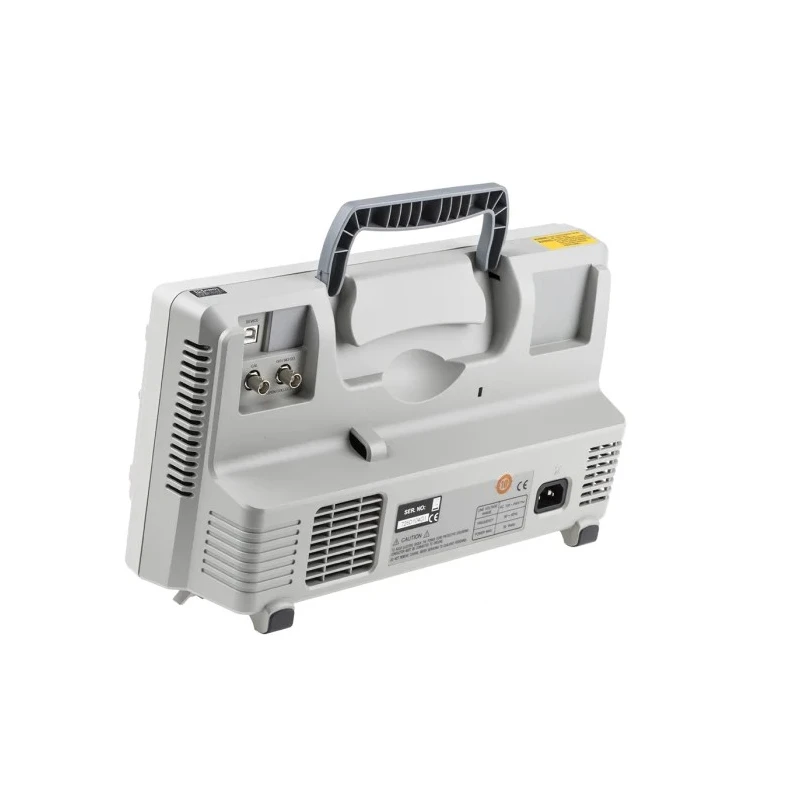

RS PRO 100 MHz Portable Digital Storage Oscilloscope, 2 Channels, 7 inch TFT LCD Display, USB Interface 123-3542
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | TFT LCD |
| Display | 7 inch 800 x 480 WVGA LCD display |
| Brand | RS PRO |
| Height | 208mm |
| Model | 123-3542 |
| Depth | 208mm |
| Width | 127.3mm |
| Bandwidth | 100MHz |
| Series | RS PRO |
| Screen Size | 7 in |

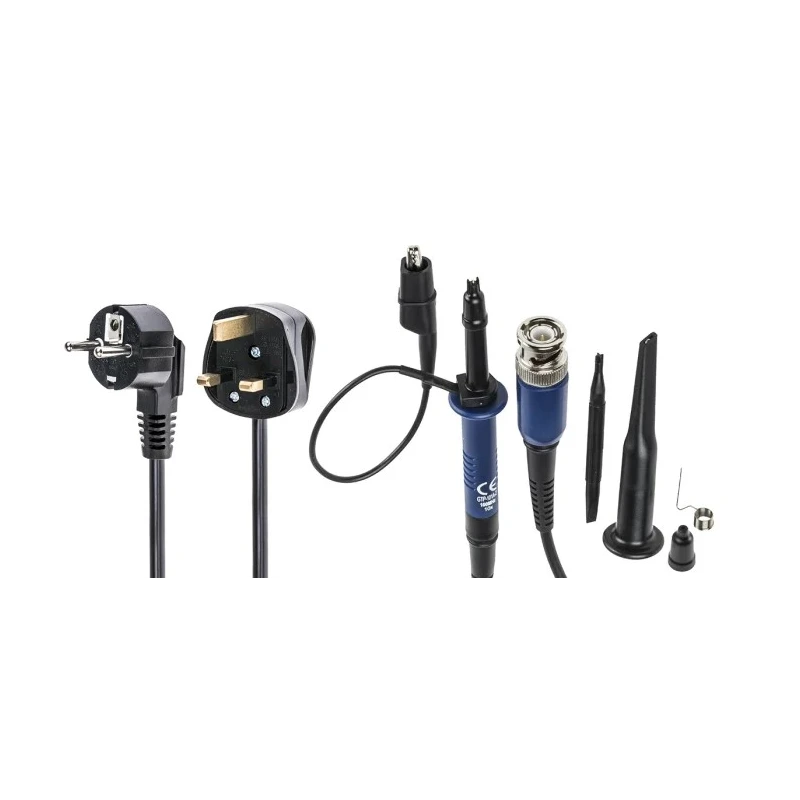

| Plug Type | EU, UK |
| Number Of Channels | 2 |
| Vertical Resolution | 8 bit |
| Memory Depth | 10Mpts |
| Rise Time | 3.5ns |
| Waveform Refresh Rate | 5000per sec |
| Interface Type | USB |
| Oscilloscope Type | Portable |
| Minimum Vertical Sensitivity | 1mV/div |
| Standards/Approvals | CE, cUL, UL |
| Safety Category Level | CAT I, CAT II |
| Safety Category Voltage | 300V |
| Oscilloscope Form | Digital Storage |
| Minimum Time Base | 5ns/div |
| Maximum Vertical Sensitivity | 10V/div |
| Maximum Time Base | 100s/div |
| RS PRO IDS2102A, 100MHz Digital Storage Oscilloscope, 2 Analogue ChannelsBrand | RS PRO |
Key Features
- Equipped with Visual Persistence Oscilloscope (VPO) technology for enhanced waveform display.
- Features a 7 inch 800 x 480 WVGA TFT LCD display supporting 256 colour gradient for detailed signal representation.
- Offers a maximum sampling rate of 1 GSa/s and memory depth of 10M points per channel.
- Includes versatile trigger types such as Edge, Pulse, Width, Video, and Logic among others.
- Compact design measuring 380 x 208 x 127.3 mm ensuring portability and ease of use.
- Equipped with USB interface for easy data transfer and external connectivity.
- Supports FFT mode providing clear frequency domain signal analysis comparable to spectrum analysers.
- Waveform refresh rate is 50,000 waveforms per second for real-time measurements.
Product Description
RS PRO 123-3542 Portable Digital Storage Oscilloscope, 100 MHz bandwidth with 2 analogue channels, featuring a high-definition 7 inch TFT LCD display and advanced VPO technology. Designed for precision waveform capture, processing, and analysis across industrial, laboratory, and educational environments, this oscilloscope combines performance with portability.
This oscilloscope utilizes a 1 GSa/s maximum sampling rate and offers a memory depth of 10 million points for each channel, enabling detailed signal observation and analysis. The 256 colour gradient display enhances visualization accuracy, especially for rapidly changing analog signals. Its FFT function provides detailed frequency domain information comparable to a spectrum analyser.
Its comprehensive trigger suite includes Edge, Pulse, Width, Video, ALT, Runt, Rise & Fall, Event-Delay, Time-Delay, Timeout, Logic, RS232, 12C and SPI, catering to a wide range of measurement scenarios. The zero key function allows restoration of previous waveform settings for ease of operation.
The oscilloscope features a compact form factor with physical dimensions of 380 mm width, 208 mm height, and 127.3 mm depth, making it highly portable. The interface supports USB connectivity facilitating convenient data export and device communication.
Visual Persistence Oscilloscope technology for enhanced waveform viewing. 7 inch 800 x 480 WVGA TFT LCD with 256 colour gradients for superior display. 1 GSa/s sampling rate and 10 Mpts memory depth per channel. Diverse trigger types including Edge, Pulse, Width, Video and Logic.
Compact size (380 x 208 x 127.3 mm) designed for portability. FFT mode for detailed spectrum analysis comparable to spectrum analysers. USB interface for versatile connectivity options. Waveform refresh rate: 50,000 waveforms per second for real-time measurement.
This product is ideal for industrial, laboratory, product development, debugging, and educational applications where high precision signal measurement is essential. It supports multiple use cases including quality assurance, product testing, and service operation.
Explore more measuring and testing instruments available on EnvMart for comprehensive test and measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The oscilloscope has a maximum bandwidth of 100 MHz, allowing it to capture high-frequency signals effectively.
It features a maximum sampling rate of 1 GSa/s, which enables detailed signal observation and analysis.
Each channel has a memory depth of 10 million points, providing ample storage for complex waveforms.
This model supports a variety of trigger types including Edge, Pulse, Width, Video, and Logic, among others, to accommodate different measurement scenarios.
The oscilloscope measures 380 mm in width, 208 mm in height, and 127.3 mm in depth, making it compact and portable.
It features a 7 inch 800 x 480 WVGA TFT LCD display that supports 256 colour gradients for enhanced visualization of signals.
The waveform refresh rate is 50,000 waveforms per second, allowing for real-time measurements of rapidly changing signals.
Yes, it supports FFT mode, which provides detailed frequency domain signal analysis comparable to spectrum analysers.
It complies with CE, cUL, and UL safety standards, ensuring it meets various safety requirements for use in different environments.
The minimum vertical sensitivity is 1 mV/div, allowing for precise measurements of low-level signals.
The maximum vertical sensitivity is 10 V/div, enabling the measurement of higher voltage signals with accuracy.
It is equipped with a USB interface, facilitating easy data transfer and external connectivity.
