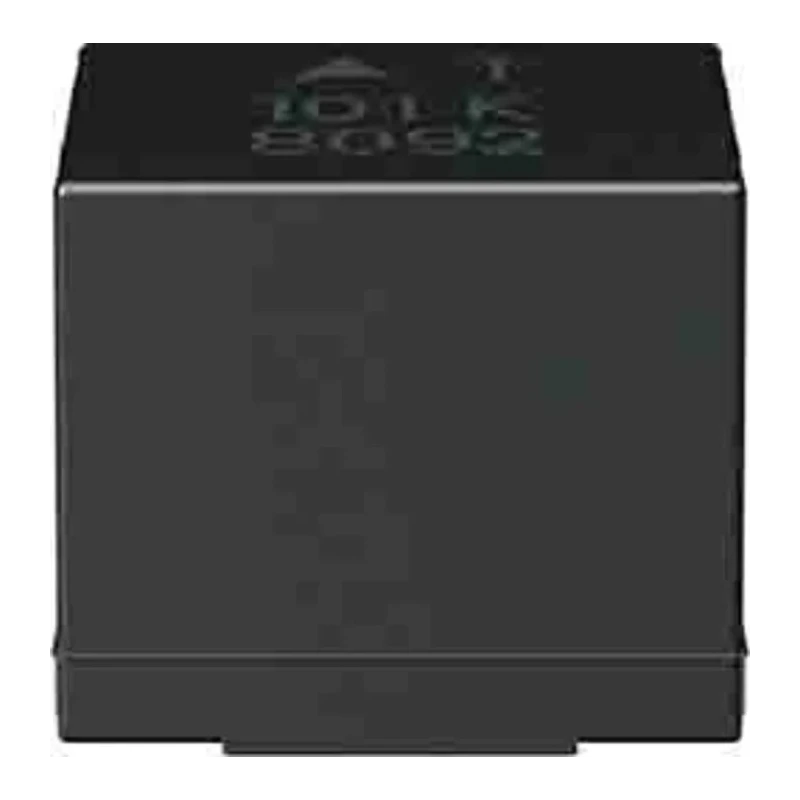

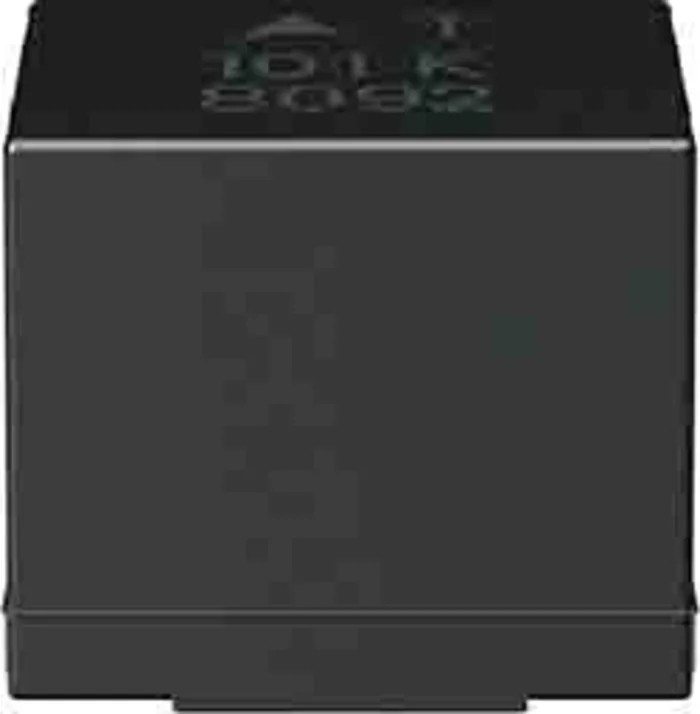

TDK SIMID 2220 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 330 μH ±10% 280 mA Idc Q20 B82442T1334K000

TDK B82442T1334K000 SIMID 2220 unshielded wirewound surface mount inductor is built with a ferrite core to provide 330 μH inductance, ±10% tolerance, and a maximum DC current of 280 mA. This component is extensively used in filtering supply voltages, coupling, decoupling, DC to DC converters, and switch-mode power supplies.

The inductor's wirewound construction with a laser-welded winding ensures mechanical robustness and reliable electrical characteristics. Its flame-retardant molding and halogen-free design meet strict safety and environmental standards.

Qualified to AEC-Q200 automotive standards and compatible with lead-free reflow soldering under JEDEC J-STD 020D, it is highly suitable for automotive electronics, telecommunications, consumer, and industrial electronics. The component can operate under a wide temperature range from -55°C to 150°C while maintaining performance.

Packaging in a 2220 case and tape & reel format makes this component ideal for automated SMT assembly lines. It provides a maximum DC resistance of 3.29 Ω and a minimum quality factor of 20, with a maximum self-resonant frequency of 3.4 MHz.

The component is manufactured in Hungary and complies with RoHS regulations ensuring environmentally friendly manufacturing process. Constructed with a ferrite drum core for efficient energy storage. Designed for high temperature operation up to 150°C.

Suitable for automotive applications with AEC-Q200 qualification. Features a wirewound inductor construction with laser-welded winding and flame-retardant molding. Compatible with lead-free reflow soldering processes referenced in JEDEC J-STD 020D.

Maximum DC resistance is 3.29 Ω ensuring stable electrical performance. Minimum quality factor of 20 for improved signal filtering. Packaged in a 2220 case with tape and reel for automated assembly. Halogen-free and RoHS-compliant for environmentally responsible applications.

Compact dimensions: 5.6 mm length, 5 mm height, and 5 mm depth.

This inductor is suitable for industrial, automotive, telecommunications, laboratory, and manufacturing applications where reliable power filtering and signal integrity are critical. Explore the Surface Mount Inductors category on EnvMart for comprehensive electronic component solutions.
