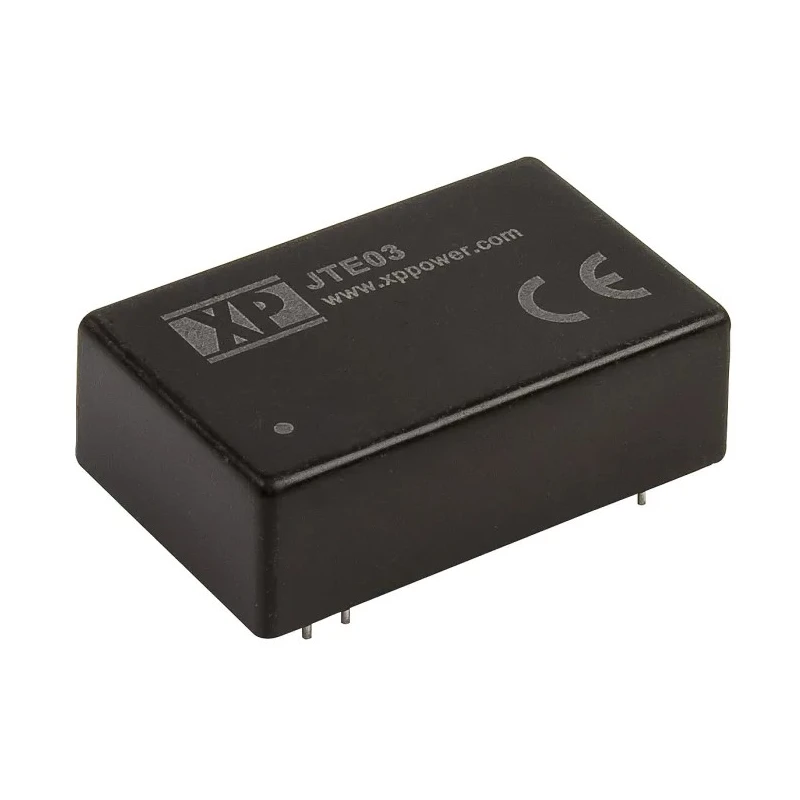

XP Power JTE03 Series 3W Fully Regulated DC/DC Converter 12V -12V 125mA 9V-36V Input Through Hole DIP24 JTE03
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTE03 DC/DC Converter, 12V, -12 V/ 125 mA |
| Brand | XP Power |
| Efficiency | 81% |
| Length | 31.75mm |
| Model | JTE03 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JTE03 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 800000000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 125mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Operating temperature range from -40°C to +100°C for harsh environments.
- High isolation voltage of 1.5kV DC ensuring electrical safety.
- Compact dimensions of 31.75mm length, 20.32mm width, and 10.16mm depth.
- Efficiency rating of 81% for energy-saving performance.
- Requires no minimum load to maintain output regulation.
- Dual output configuration ideal for industrial and electronic applications.
- Long MTBF of 800 million hours indicating high reliability.
- Industry-standard DIP-24 plastic casing for easy PCB integration.
Product Description
XP Power JTE03 DC/DC Converter is a fully regulated dual-output power supply providing 3 watts of output power with voltage outputs of +12V and -12V at 125mA current capability. It features a flexible ultra-wide 4:1 input voltage range from 9V to 36V DC and is housed in a DIP-24 plastic through-hole package, facilitating easy mounting on standard PCBs. The device operates reliably across a temperature range of -40°C to +100°C, suitable for industrial, laboratory, instrumentation, and communication equipment applications. Its 1.5kV DC isolation voltage ensures safe operation in sensitive electronic systems.
This converter operates without requiring a minimum load, maintaining stable output voltage under all load conditions. With an efficiency of 81%, it provides energy-efficient power conversion reducing heat dissipation. The compact form factor with dimensions 31.75mm x 20.32mm x 10.16mm allows integration into space-constrained designs. The product is backed by high reliability metrics including an MTBF of 800 million hours.
XP Power’s JTE03 series converters suit a broad range of electronic systems including industrial automation, test and measurement equipment, communication devices, and embedded control systems. They meet industry standard reliability and packaging norms, making them a trusted choice for volume production and maintenance applications. The DIP-24 footprint also supports ease of replacement and upgrade in existing hardware.
Reliable 4:1 input voltage DC/DC conversion. Fully regulated dual outputs of 12V and -12V. High isolation voltage ensures safe and noise-free operation. Compact DIP-24 plastic casing optimized for PCB integration. Operating temperature from -40 to +100 degrees Celsius.
Energy efficient with 81% conversion efficiency. No minimum load requirement improves design flexibility. Long expected lifetime with MTBF of 800 million hours. Suitable for industrial, electronic, and instrumentation applications.
Manufactured in Taiwan under strict quality standards. Explore XP Power’s range in EnvMart for reliable power conversion solutions tailored to demanding electronics industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a maximum output power of 3 watts with dual outputs of +12V and -12V at a current capability of 125mA.
It features a wide input voltage range from 9V to 36V DC, allowing for flexible application in various systems.
The compact dimensions of this unit are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
This converter has an efficiency rating of 81%, contributing to energy-saving performance.
It has a high isolation voltage of 1.5kV DC, ensuring electrical safety in sensitive applications.
No, this converter does not require a minimum load, allowing for stable output voltage under all load conditions.
It is housed in an industry-standard DIP-24 plastic casing, facilitating easy mounting on standard PCBs.
This model is suitable for industrial, laboratory, instrumentation, and communication equipment applications.
It features dual outputs, providing both +12V and -12V voltages.
The JTE03 is designed for through-hole mounting, making it compatible with standard PCB designs.
