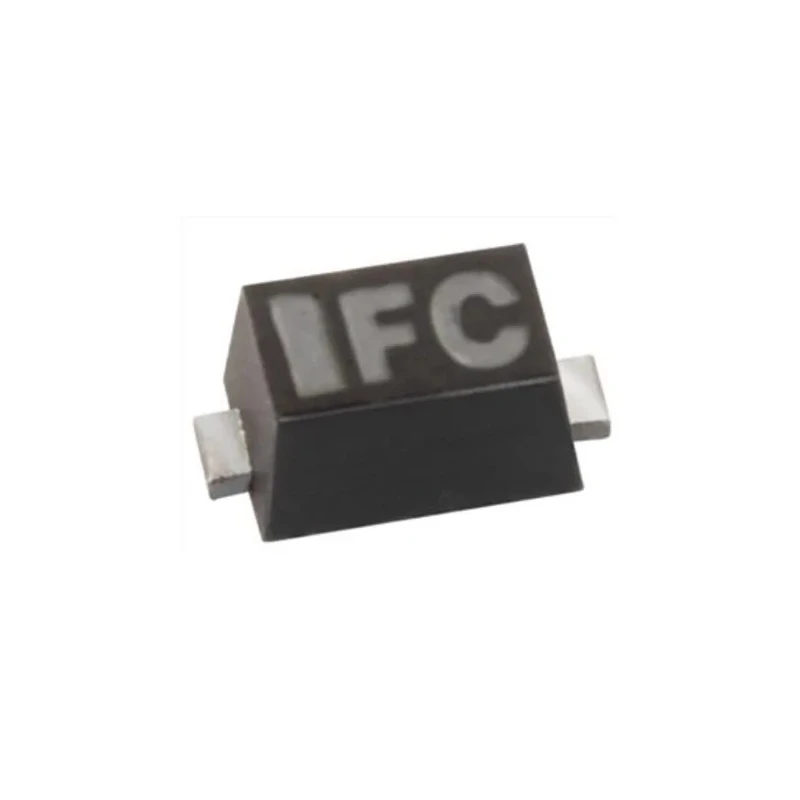

Vishay Small Signal 3.6 V Zener Diode 200 mW Surface Mount 2-Pin SOD-523 BZX584C3V6-HG3-08
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.9mm |
| Length | 1.3mm |
| Model | BZX584C3V6-HG3-08 |
| Mount Type | Surface |
| Series | BZX584C |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 200mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 3.6V |
| Zener Type | Small Signal |
Key Features
- Small signal Zener diode with nominal voltage of 3.6 V and tolerance of ±5%.
- Maximum power dissipation rating of 200 mW ensures reliable operation at low power.
- Package type SOD-523 offers compact surface mount configuration with a 2-pin design.
- Wide operating temperature range from -65°C up to 175°C supports harsh environments.
- Maximum reverse leakage current of 5 µA and test current of 5 mA provide stable performance.
- Compliance with RoHS and qualified to automotive standard AEC-Q101 ensures quality and environmental safety.
Product Description
Vishay BZX584C3V6-HG3-08 is a small signal Zener diode intended for space-sensitive surface mount electronic applications. It features a nominal Zener voltage of 3.6 V with a ±5% tolerance and is capable of dissipating up to 200 mW of power. The diode comes packaged in a compact SOD-523 plastic case with a 2-pin configuration, ideal for compact PCB layouts.
This Zener diode operates reliably within a broad temperature range spanning from -65°C to a maximum of 175°C, making it suitable for industrial and automotive electronics applications. Its low maximum reverse leakage current of 5 µA at a test current of 5 mA ensures efficient voltage regulation and protection capabilities.
Manufactured in compliance with RoHS directives and qualified to the stringent AEC-Q101 automotive standard, this product meets high quality and environmental standards expected in commercial and automotive electronics manufacturing.
The diode's small form factor, with a height of 0.9 mm and length of 1.3 mm, enables use in densely packed electronic circuits where space constraints are critical. Small signal Zener diode suitable for voltage regulation and protection.
Nominal voltage of 3.6 V with ±5% tolerance for precision applications. 200 mW power dissipation rating supports low power circuitry. Compact SOD-523 package with 2-pin surface mount design. Wide temperature operating range from -65°C to 175°C for harsh environments.
Low leakage current and stable test current provide reliable operation. RoHS compliant and AEC-Q101 automotive standard qualified. Space-saving dimensions with height 0.9 mm and length 1.3 mm.
This Vishay Zener diode is suitable for use in industrial electronics, automotive electronic systems, telecommunications equipment, and precision laboratory instrumentation. Its compact package and reliable performance make it an excellent choice for protecting circuits from voltage spikes and ensuring voltage stabilization.
Explore Vishay’s range of semiconductors and discrete electronic components on EnvMart for various industrial and commercial applications.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 3.6 V with a tolerance of ±5%.
It has a maximum power dissipation rating of 200 mW, ensuring reliable operation at low power.
This model has a height of 0.9 mm and a length of 1.3 mm, making it suitable for compact PCB layouts.
The minimum operating temperature is -65°C, which supports its use in extreme conditions.
It comes in a compact SOD-523 package type, which features a 2-pin surface mount design.
Yes, it is RoHS compliant and qualified to the AEC-Q101 automotive standard, ensuring quality and environmental safety.
This model is suitable for industrial electronics, automotive electronic systems, telecommunications equipment, and precision laboratory instrumentation.
This diode has one element per chip, configured as a single diode.
It is classified as a small signal Zener diode, suitable for voltage regulation and protection.
The test current for this diode is 5 mA, which is used to measure its performance characteristics.
