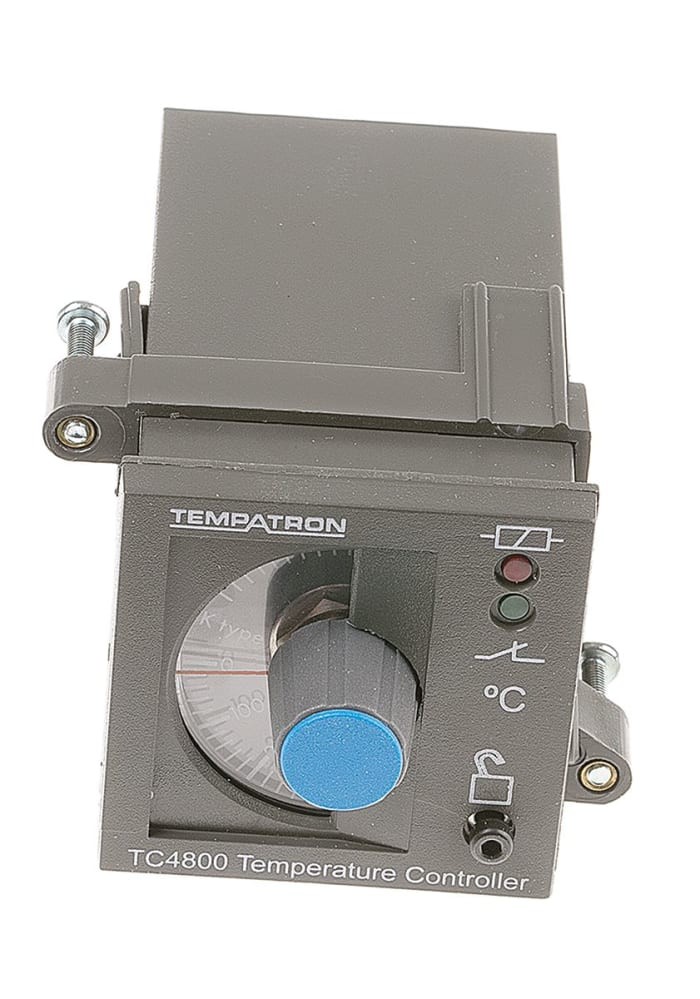

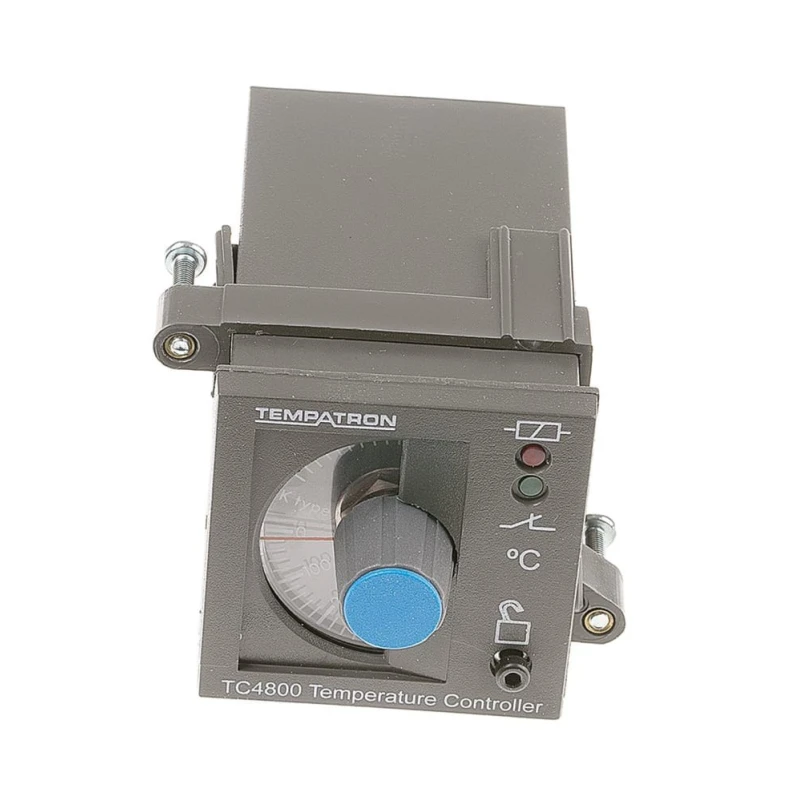

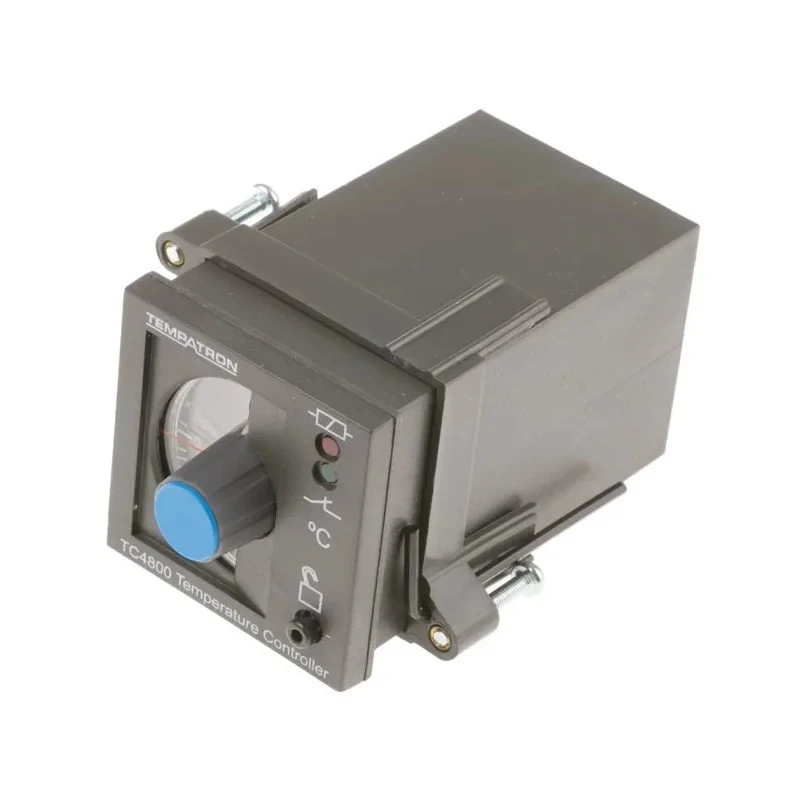

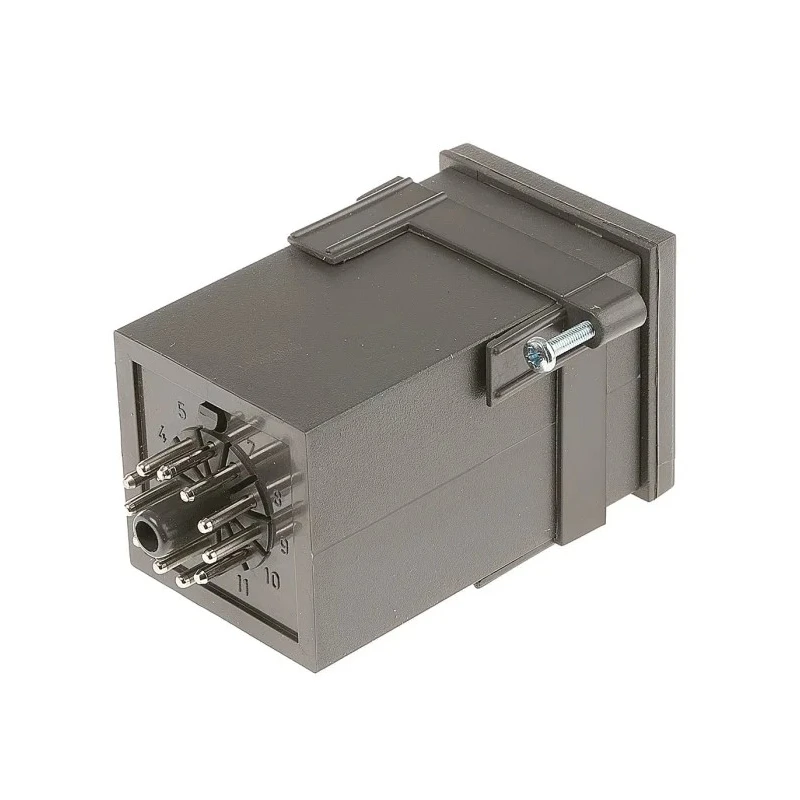

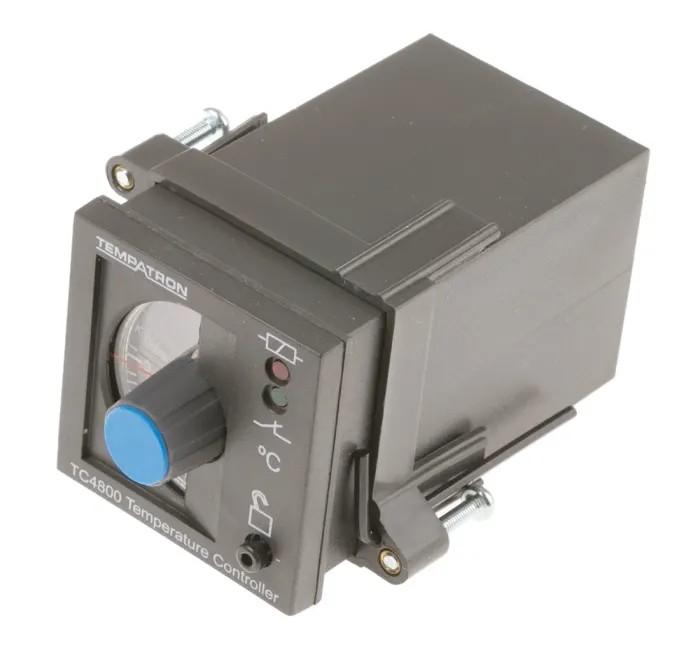

Tempatron On-Off Temperature Controller DIN Rail, Panel, Surface Mount 5 Output Relay 230V AC TC4800

Tempatron TC4800 On-Off Temperature Controller is an industrial-grade device specifically built for precise temperature monitoring and control applications in diverse environments. Operating at 230V AC supply voltage with an auxiliary option for 24V AC/DC or 110/230V AC, this controller supports 5 output relays, each capable of handling up to 5A current, enabling it to drive multiple control devices.

This controller features a LED display providing clear status and supply indication, making it easy for users to verify operational conditions. It accepts input from a K Type Thermocouple, a standard sensor type known for its accuracy in temperature measurement over a wide range.

The compact unit, with dimensions of 89mm length, 48mm width, and 74mm panel depth, is designed to be mounted on DIN rails, panels, or surface installations. Its IP40 enclosure rating ensures a degree of protection against solid objects, suitable for many industrial and laboratory environments.

The operating temperature range from -10°C to +50°C allows use in moderate ambient temperature conditions. The temperature controller is CE marked, complying with EN61010-1 for low voltage safety and EN50081-1/50082-1 EMC directives, assuring conformity to international safety and electromagnetic compatibility standards.

Supplied with a hex key for locking temperature settings and compatible with suitable 50-0-50μA meters for deviation readings, this versatile temperature controller integrates smoothly into process control, automation, HVAC, manufacturing, and laboratory instrumentation systems.

Features 5 output relays supporting up to 5A maximum current. Operates with a supply voltage of 230V AC and maximum voltage up to 240V AC. Equipped with LED display for status and supply indication. Supports K Type Thermocouple input for accurate temperature sensing.

Designed for DIN Rail, panel, or surface mounting with compact dimensions. Operating temperature range from -10°C to +50°C ensures reliability in varied conditions. IP40 rated enclosure offering moderate protection against dust.

Complies with CE standards including EN61010-1 low voltage and EN50081-1/50082-1 EMC directives. Manufactured in the United Kingdom with quality assurance.

This Tempatron Temperature Controller is ideal for use in industrial process control, laboratory equipment, HVAC systems, and manufacturing setups where reliable temperature regulation is critical. Explore more precise temperature control instruments in the EnvMart Industrial Measuring & Testing Instruments category.
